Locinox Magnus Motorised Hinge & Gate Closer For Pedestrian Gates
Product Description
Locinox Magnus Motorised Hinge & Gate Closer For Pedestrian Gates
The MAGNUS Motorised Gate Closer is a compact all-in-one hinge and closing solution designed specifically for automating pedestrian gates. Built with a brushless, reversible motor, it offers reliable, low-energy performance that adapts seamlessly to unpredictable pedestrian use. This makes it ideal for managing foot traffic in commercial, industrial, and high-use environments where consistency and safety are essential.
Supplied with a lower hinge and compact connection box, the MAGNUS system provides a streamlined installation process and a neat, unobtrusive finish. All settings, behaviour profiles, and access control functions can be quickly configured via an intuitive mobile app, delivering convenient on-site or remote setup without specialist programming tools.
Key Features
Automated pedestrian gate closing with an integrated hinge and motor in one unit.
Brushless, reversible motor designed for smooth, consistent operation.
Low-energy mode for efficient performance and reduced power consumption.
App-based configuration, enabling rapid adjustment of settings and access control.
Includes lower hinge and compact connection box for a clean, professional installation.
Suitable for commercial, industrial, and managed pedestrian access points.
Applications
The MAGNUS Motorised Gate Closer is ideal for:
Pedestrian access gates in commercial and industrial sites.
Public pathway entrances require controlled closing.
Security walkways and staff access routes.
High-traffic environments that benefit from automated, safe gate operation.
Explore other Products
- The Slimstone-2 Keypad is a robust, vandal-proof keypad for easy access. While the Magnus holds the gate closed, it can be paired with an additional lock for high-security environments. For larger, more exposed gates, a motorised drop bolt ensures the gate is pinned to the ground when closed.
Contact Us
If you need further information or help choosing the right configuration for your site, our friendly team is here to help. Give us a call on 01283 512111 or speak to us via our online chat.

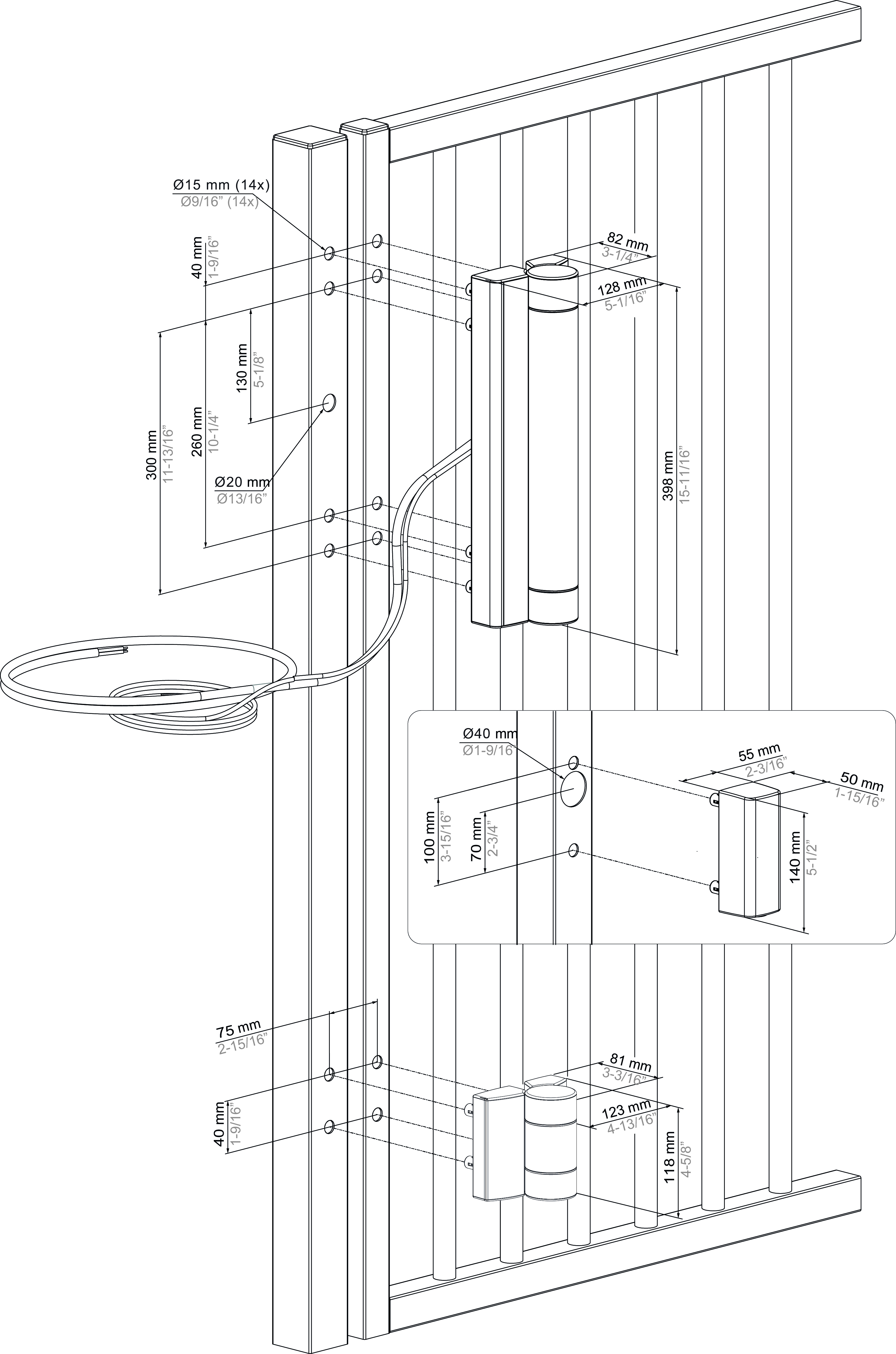

Specifications & Downloads
| Maximum Gate Width | 1500mm |
| Maximum Gate Weight | 200kg |
| Height | 398mm |
| Width | 128mm |
| Depth | 82mm |
| Item Weight | 8.1kg |
| Torque | 100Nm |
| Profile Type | Flat |
| Power Supply | 110V - 240V AC |
| Cable Length | 2m |
| Maximum Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Motorised Hinge | 1 |
| Connection Box | 1 |
| Lower Hinge | 1 |
Specifications & Downloads
| Maximum Gate Width | 1500mm |
| Maximum Gate Weight | 200kg |
| Height | 398mm |
| Width | 128mm |
| Depth | 82mm |
| Item Weight | 8.1kg |
| Torque | 100Nm |
| Profile Type | Flat |
| Power Supply | 110V - 240V AC |
| Cable Length | 2m |
| Maximum Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Motorised Hinge | 1 |
| Connection Box | 1 |
| Lower Hinge | 1 |
