Locinox MAG6000 Surface Mounted Magnetic Lock With Integrated Handles
Product Description

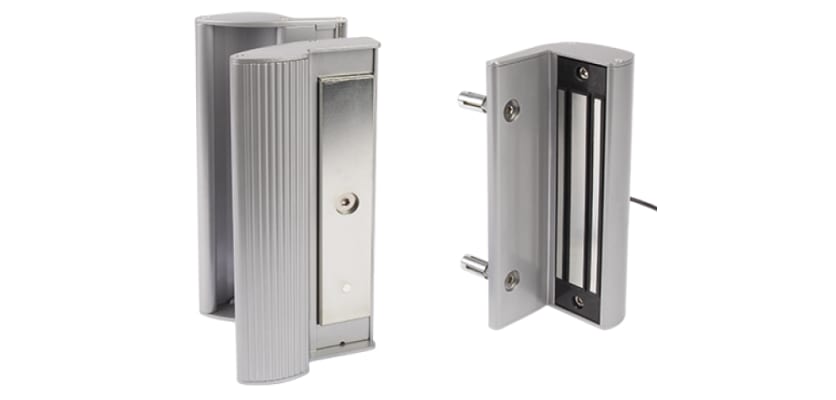

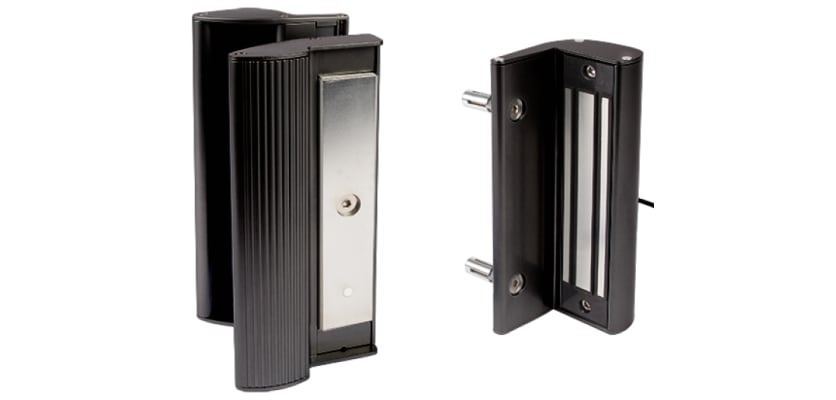

Locinox MAG6000 Surface Mounted Magnetic Lock With Integrated Handles
The Locinox MAG6000 Surface Mounted Magnetic Lock is a heavy-duty electromagnetic locking solution designed to provide high-strength access control for gate installations. With a pulling force of up to 600 kg, the MAG6000 delivers exceptional holding power, making it suitable for applications where enhanced security is required.
The lock features a robust, powder-coated aluminium housing with integrated design handles, adding a refined and professional finish to access-controlled gates. Installation is quick and efficient, with no need for welding boxes—drilling seven fixing holes is sufficient. The Quick-Fix system ensures fast and secure mounting, while the two-layer protective coating provides excellent resistance to corrosion and weathering, supporting reliable long-term outdoor use.
Operating on 12V or 24V DC, this fail-safe unit guarantees emergency exit capability, offering an ideal balance of impenetrable perimeter security and essential user safety for high-traffic commercial gateways.
Key Features
Surface mounted electromagnetic lock for access control
600 kg holding force for high-security gate locking
Powder-coated aluminium housing with integrated design handles
Screw-on installation with no welding boxes required
Quick-Fix system for fast and strong fixing
Two-layer protective coating for durable outdoor performance
Applications
The Locinox MAG6000 Surface Mounted Magnetic Lock is suitable for:
Pedestrian access control gates
Residential and commercial installations requiring enhanced security
Sites needing high-strength electromagnetic locking
New builds and retrofit access control projects
Contact Us
For advice on selecting the correct magnetic lock or support with installation and access control requirements, call 01283 512111 or use our online chat for expert assistance.
Specifications & Downloads
| Mag Plate Height | 227mm |
| Mag Plate Width | 95mm |
| Mag Plate Depth | 118mm |
| Handle Height | 243mm |
| Handle Width | 130mm |
| Handle Depth | 50mm |
| Total Weight | Approx. 5kg |
| Voltage | 12V/24V DC |
| Current | 460mA (12V), 230mA (24V) |
| Minimal Pulling Force | 6000N (600kg) |
| IP Rating | 68 |
What's Included
| Name | Quantity |
|---|---|
| Magnet | 1 |
| Armature Plate | 1 |
| 3006Pull Handle Pair | 1 |
| Fixing Pack | 1 |
