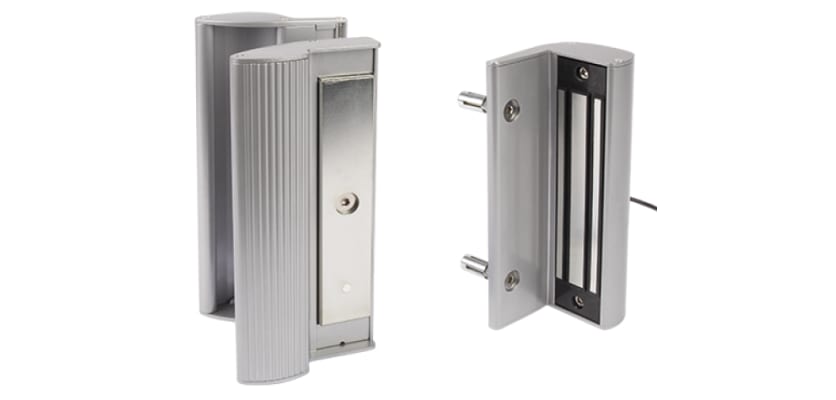

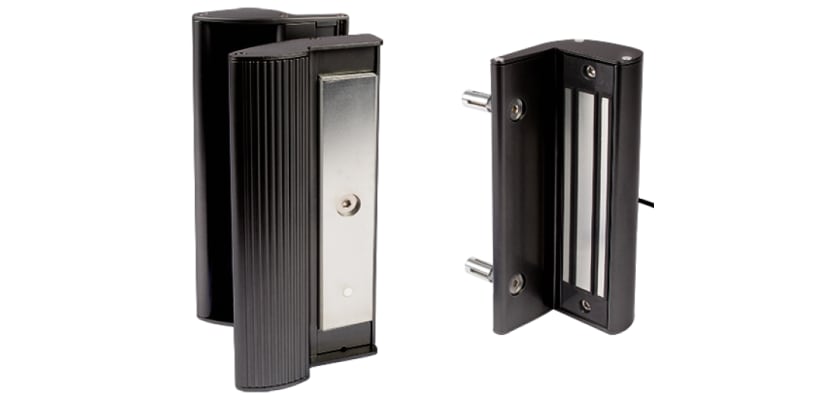

Locinox MAG3000 Surface Mounted Magnetic Lock With Integrated Handles
Product Description
Locinox MAG3000 Surface Mounted Magnetic Lock With Integrated Handles
The Locinox MAG3000 Surface Mounted Magnetic Lock is a high-performance electromagnetic locking solution designed to deliver secure and reliable access control for gate installations. Offering a pulling force of up to 300 kg, the MAG3000 provides strong holding power while maintaining smooth and controlled operation.
Housed in a durable, powder-coated aluminium casing, the MAG3000 features integrated design handles that add a refined, professional finish to access-controlled gates. Installation is quick and efficient, with no need for welding boxes; simply drilling seven fixing holes is sufficient. The Quick-Fix system enables fast and secure mounting, while the two-layer protective coating ensures long-term resistance to weathering and corrosion, making the lock suitable for extended outdoor use.
Engineered for versatility, this fail-safe system ensures immediate egress during power loss. Its flexible design integrates seamlessly with both swing and sliding gates, providing a robust security layer for any residential or commercial perimeter.
Key Features
- Surface-mounted electromagnetic lock for access control
- 300 kg holding force for secure gate locking
- Powder-coated aluminium housing with integrated design handles
- Screw-on installation with no welding boxes required
- Quick-Fix system for fast and strong fixing
- Two-layer protective coating for long-term outdoor durability
Applications
The Locinox MAG3000 Surface Mounted Magnetic Lock is suitable for:
- Pedestrian access control gates
- Residential and commercial installations
- Sites requiring reliable electromagnetic locking
- New builds and retrofit access control projects
Contact Us
For advice on selecting the correct magnetic lock or support with installation and access control requirements, call 01283 512111, contact us via online chat, or email sales@firstfence.co.uk to speak with our sales team.

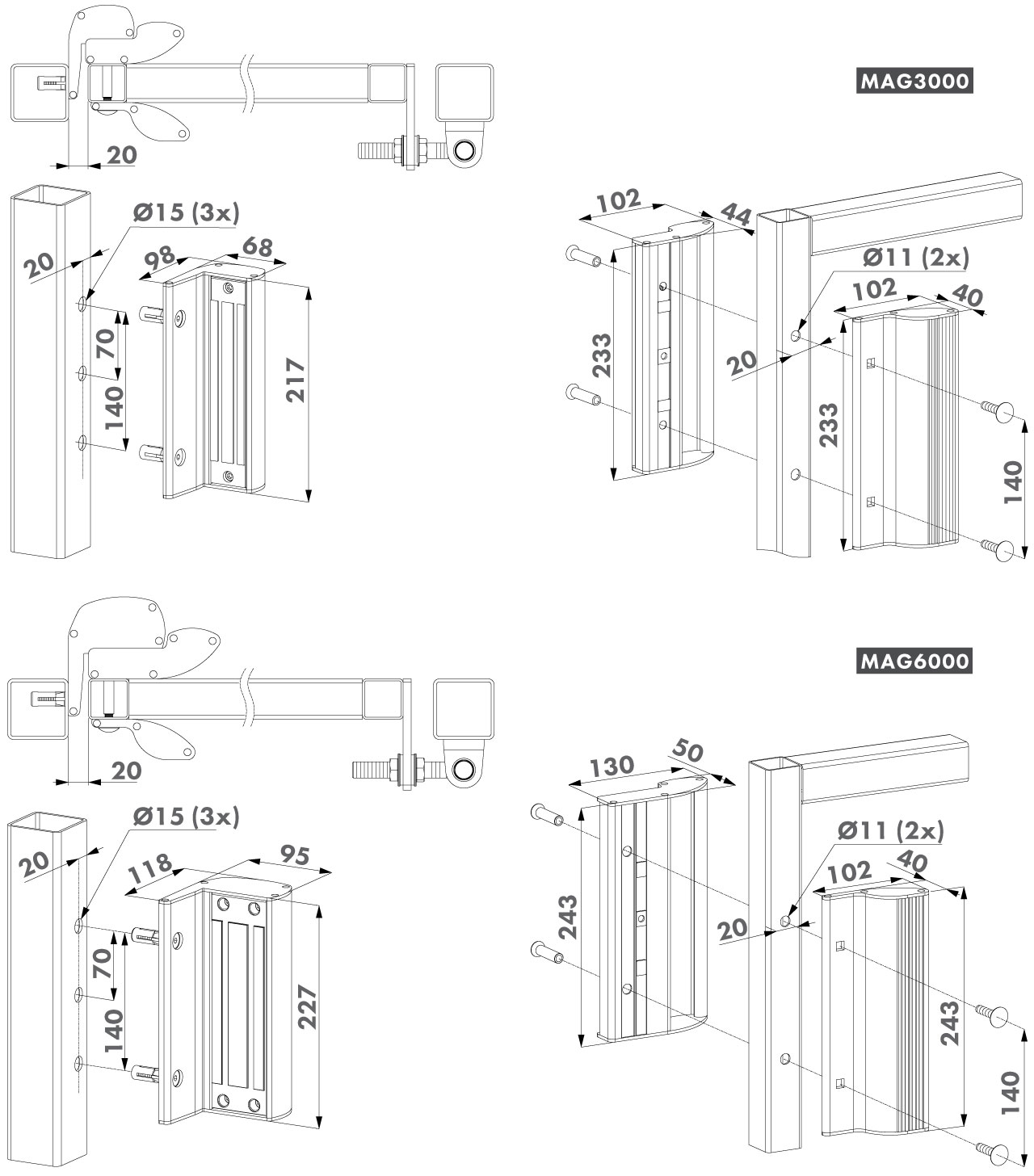

Specifications & Downloads
| Mag Plate Height | 217mm |
| Mag Plate Width | 98mm |
| Mag Plate Depth | 68mm |
| Handle Height | 233mm |
| Handle Width | 102mm |
| Handle Depth | 44mm |
| Total Weight | Approx. 5kg |
| Voltage | 12V/24V DC |
| Current | 500mA (12V), 250mA (24V) |
| Minimal Pulling Force | 3000N (300kg) |
| IP Rating | 68 |
What's Included
| Name | Quantity |
|---|---|
| Magnet | 1 |
| Armature Plate | 1 |
| 3006Pull Handle Pair | 1 |
| Fixing Pack | 1 |
Videos
Specifications & Downloads
| Mag Plate Height | 217mm |
| Mag Plate Width | 98mm |
| Mag Plate Depth | 68mm |
| Handle Height | 233mm |
| Handle Width | 102mm |
| Handle Depth | 44mm |
| Total Weight | Approx. 5kg |
| Voltage | 12V/24V DC |
| Current | 500mA (12V), 250mA (24V) |
| Minimal Pulling Force | 3000N (300kg) |
| IP Rating | 68 |
What's Included
| Name | Quantity |
|---|---|
| Magnet | 1 |
| Armature Plate | 1 |
| 3006Pull Handle Pair | 1 |
| Fixing Pack | 1 |
