Locinox Intralec Built-In Electric Keep For Fortylock, Fiftylock, And Sixtylock
Product Description
Locinox Intralec Built-In Electric Keep For Fortylock, Fiftylock, And Sixtylock

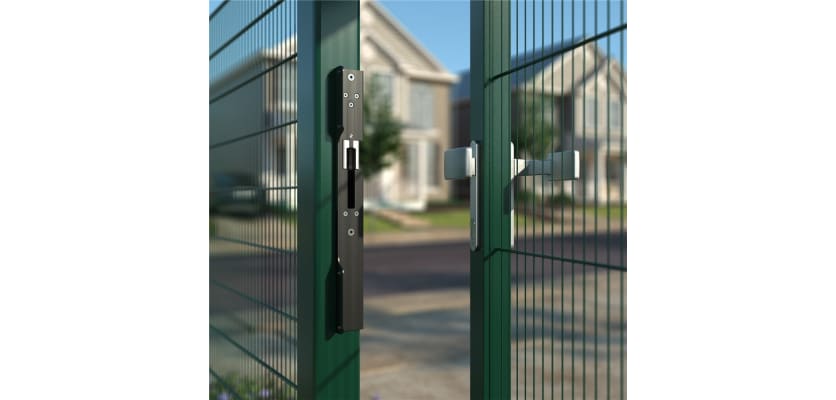

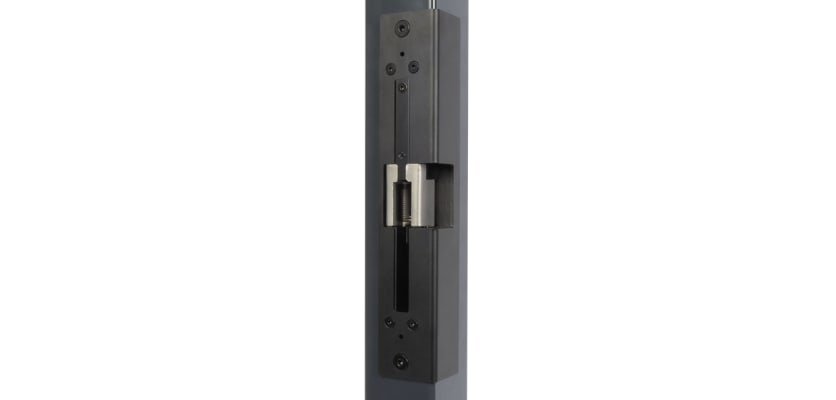

The Locinox Intralec Built-In Electric Keep is an elegant and discreet solution for adding electric access control to gates fitted with Locinox insert locks. Designed to be built directly into the post, the Intralec delivers a clean, flush finish while maintaining reliable and secure locking performance.
Installation is quick and straightforward using Locinox’s patented Click-It system, allowing precise fitting with minimal effort. The Intralec can be installed without the need for a separate strike plate and also offers the option of a mechanical override, providing flexibility in both design and operation. It is available in Fail Open (Ruptura) and Fail Close (Emissa) versions to suit different safety and security requirements.
Key Features
- Built-in electric keep for Locinox insert locks
- Compatible with Fortylock, Fiftylock, Sixtylock, and Eightylock insert locks
- Discreet, flush-mounted design built into the post
- Patented Click-It system for fast and accurate installation
- Can be installed without a strike plate
- Mechanical override option available
- Available in Fail Open (Ruptura) and Fail Close (Emissa) versions
Applications
The Locinox Intralec Built-In Electric Keep is suitable for:
- Pedestrian gates requiring electric access control
- Gates fitted with Fortylock, Fiftylock, or Sixtylock insert locks
- Residential, commercial, and industrial gate installations
- Applications where a discreet, built-in electric keep is preferred
Contact Us
For assistance choosing the correct fail-safe option or for installation advice, contact our team. Call on 01283 512 111, email sales@firstfence.co.uk, or connect via live chat for more information.
Specifications & Downloads

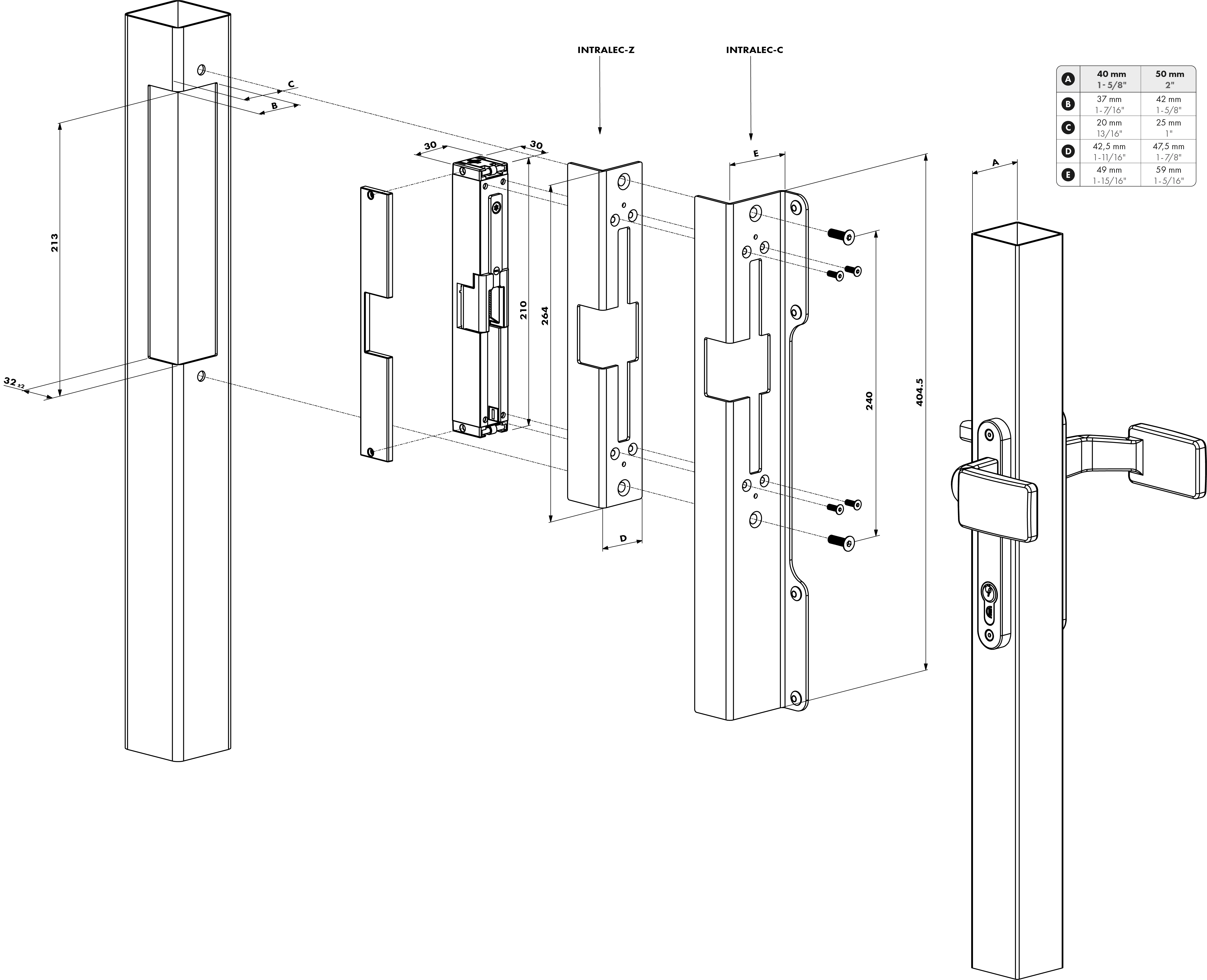

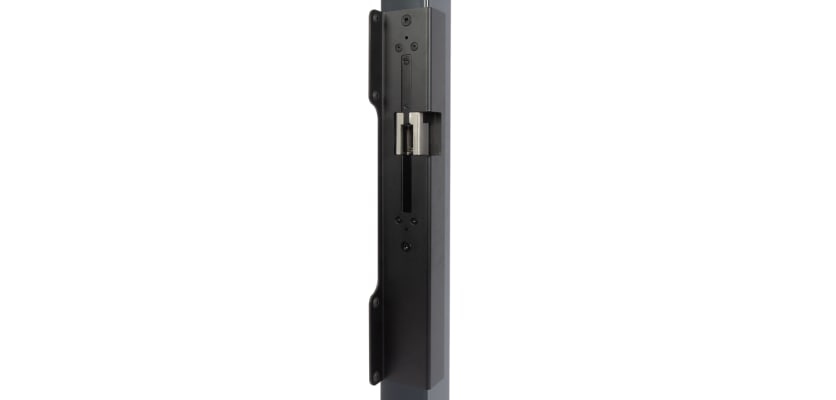

| Height (with stop plate) | 404.5mm |
| Height (without stop plate) | 264mm |
| Width (with stop plate) | 49mm/59mm |
| Width (without stop plate) | 42.5mm/47.5mm |
| Depth | 30mm |
| Weight | Approx. 1.3kg |
| Post Profile | 40mm or 50mm |
| Voltage | 12V - 24V AC/DC |
| Current | 0.8A (12V), 0.4A (24V) |
| Power Consumption | 10W |
What's Included
| Name | Quantity |
|---|---|
| Electric Keep | 1 |
| Click-It Fixing | 1 |
| Stop Plate - if selected | 1 |
