Locinox GBMU4D 180° Weld-On 4D Adjustable Hinge
Product Description

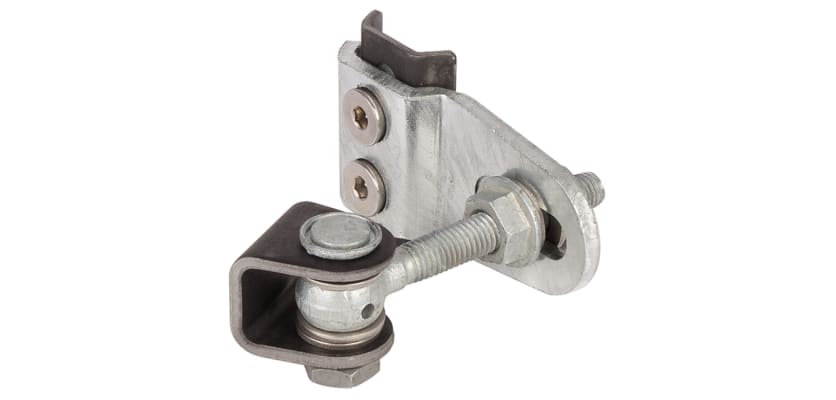

Locinox GBMU4D 180° Weld-On 4D Adjustable Hinge
The Locinox GBMU4D 180° Weld-On 4D Adjustable Hinge is a heavy-duty hinging solution designed for precision alignment and long-term performance on swing gates. Supplied as a single complete hinge pack, these hinges are hot-dip galvanised to provide excellent corrosion resistance in demanding outdoor environments.
Featuring full 4-way adjustability, the GBMU4D allows accurate fine-tuning of gate position, including depth and the spacing between the gate and post, even after installation. Its 180° opening capability supports unrestricted gate movement, while the universal design removes the need to stock separate left- or right-hand hinges, enabling a single gate wing to be used for both left- and right-turning gates. Weld-on fixing ensures a strong, permanent connection suitable for robust installations.
Please note this product is NOT sold in pairs - 1 Unit is 1 Hinge Set
Key Features
- Supplied as an individual hinge
- 4-way adjustable design for precise gate alignment
- 180° opening angle for full gate movement
- Hot-dip galvanised finish for long-term corrosion resistance
- Depth and gate-to-post spacing are adjustable after installation
- Universal configuration suitable for left- and right-turning gates
- Weld-on construction for strong, permanent fixing
Applications
The Locinox GBMU4D 180° Weld-On 4D Adjustable Hinge is suitable for:
- Pedestrian and access swing gates
- Residential, commercial, and industrial installations
- New builds and fabricated gate projects
- Applications requiring post-installation adjustment and universal handling
Contact Us
For advice on hinge selection or fabrication guidance, contact our team for expert support. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect via live chat.

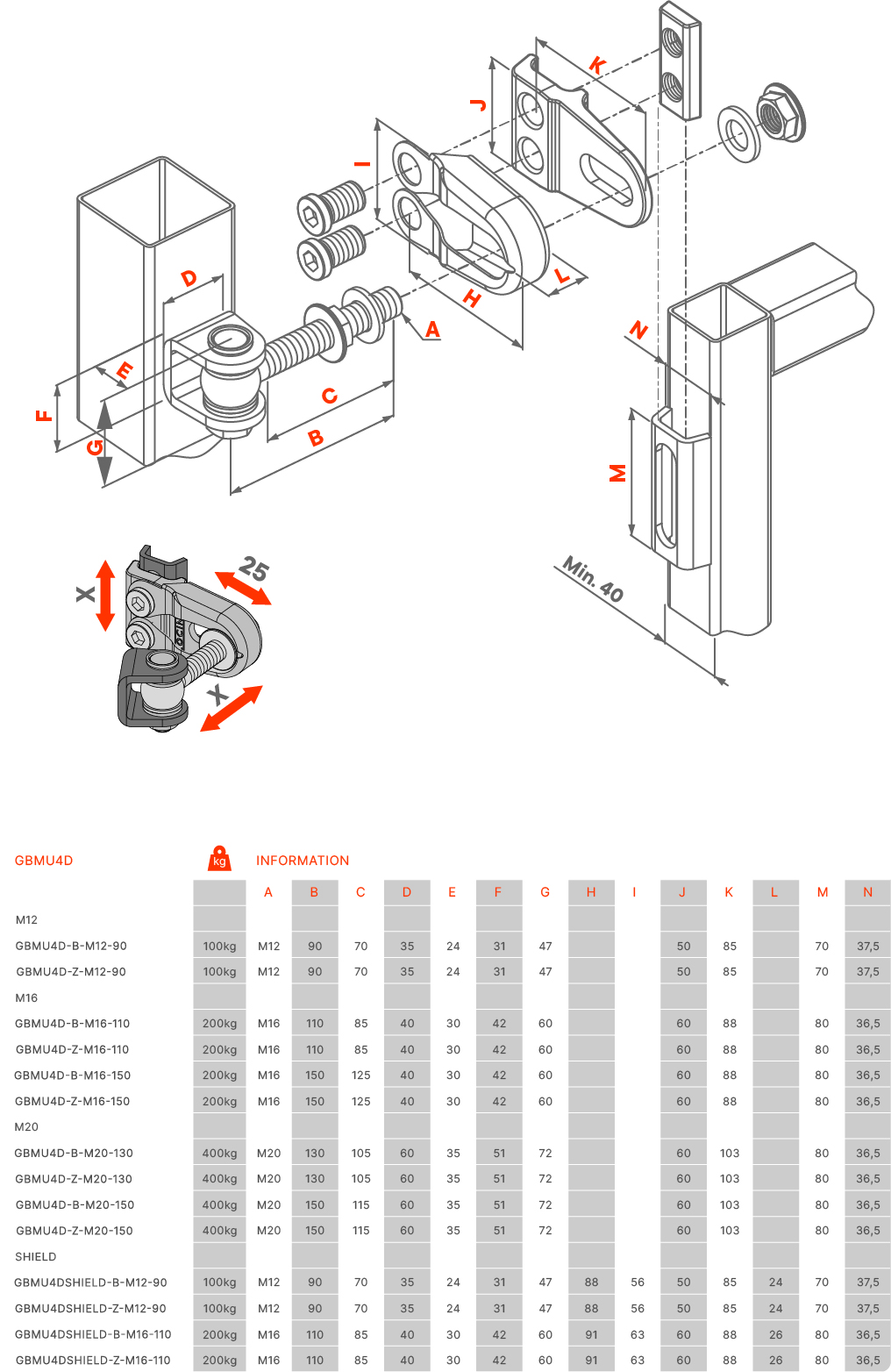

Specifications & Downloads
| Bolt Length | 90mm - 150mm |
| Hinge Height | 31mm - 51mm |
| Hinge Depth | 35mm - 60mm |
| Plate Height | 50mm - 60mm |
| Plate Width | 85mm - 103mm |
| Total Weight | Approx. 1.187kg - 1.85kg |
| Movement Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Eye Bolt | 1 |
| Ear Plate | 1 |
| Grip | 1 |
| Gate Claw | 1 |
| Screw Pack | 1 |
