Locinox GBMU 3-Way Adjustable 180° Hinge
Product Description
Locinox GBMU 3-Way Adjustable 180° Hinge
The Locinox GBMU 3-Way Adjustable 180° Hinge is a robust and versatile hinging solution for swing gates. Hot-dip galvanised for long-term corrosion resistance, this hinge set is designed to support reliable gate operation while allowing precise adjustment during and after installation.
Offering three-way adjustability, the GBMU hinge allows the depth and spacing between the gate and post to be fine-tuned once fitted, ensuring accurate alignment and smooth movement over time. With a full 180° opening angle, it is well suited to a wide range of pedestrian and access gate applications. The welded components provide a strong, dependable fixing point for demanding installations.
The GBMU’s versatile 3-way adjustment effectively compensates for natural post-shift or ground movement, ensuring your gate remains perfectly plumb throughout the seasons. This heavy-duty construction eliminates sagging, while the hot-dip galvanised finish provides a maintenance-free life in the harshest environments.
Please note this product is NOT sold as a pair - 1 Unit is 1 Hinge Set
Key Features
- Supplied as two separate pieces to weld to the gate and the post
- 3-way adjustable design for precise gate alignment
- 180° opening angle for full gate movement
- Hot-dip galvanised finish for corrosion resistance
- Depth and gate-to-post spacing are adjustable after installation
- Strong welded construction for dependable performance
Applications
The Locinox GBMU 3-Way Adjustable 180° Hinge is suitable for:
- Pedestrian and access gates
- Residential, commercial, and industrial gate installations
- New builds and retrofit projects
- Applications requiring post-installation adjustability
Contact Us
For advice on hinge selection or compatibility with your gate setup, contact us. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect via live chat for more information.

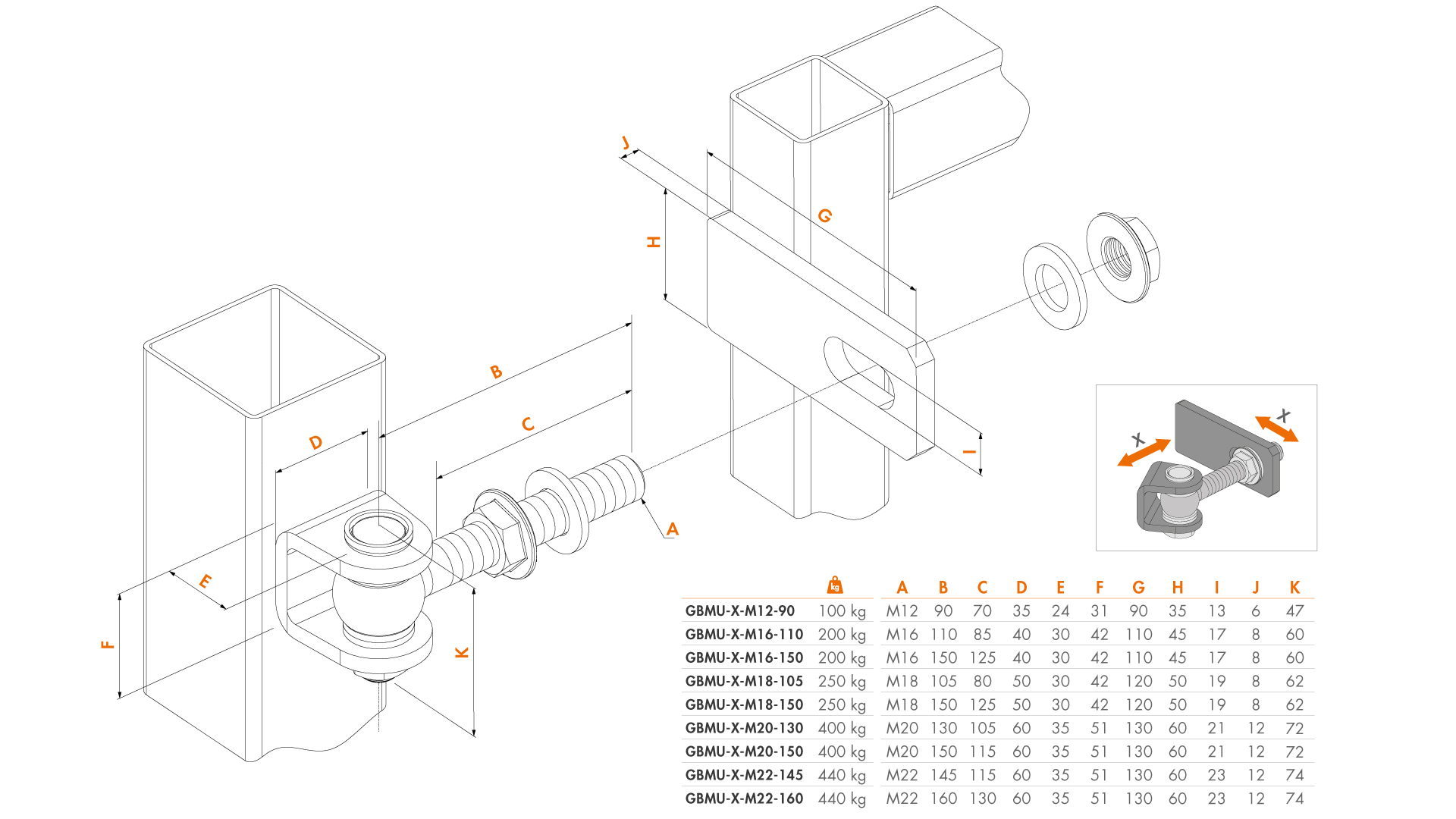

Specifications & Downloads
| Bolt Length | 90mm - 160mm |
| Hinge Height | 47mm - 74mm |
| Hinge Depth | 35mm - 60mm |
| Plate Height | 35mm - 60mm |
| Plate Width | 90mm - 130mm |
| Plate Depth | 6mm - 12mm |
| Total Weight | Approx. 0.4kg - 1.73kg |
| Movement Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Weld-on Earplate | 1 |
| Weld-on Groove Plate | 1 |
Specifications & Downloads
| Bolt Length | 90mm - 160mm |
| Hinge Height | 47mm - 74mm |
| Hinge Depth | 35mm - 60mm |
| Plate Height | 35mm - 60mm |
| Plate Width | 90mm - 130mm |
| Plate Depth | 6mm - 12mm |
| Total Weight | Approx. 0.4kg - 1.73kg |
| Movement Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Weld-on Earplate | 1 |
| Weld-on Groove Plate | 1 |
