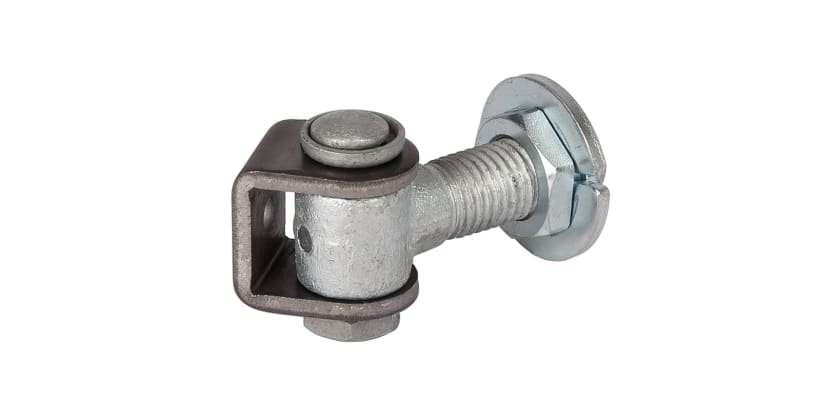

Locinox G90LR Vandal-Proof One-Way 90° Hinge With Adjustable Welding Nut
Product Description
Locinox G90LR Vandal-Proof One-Way 90° Hinge With Adjustable Welding Nut
The Locinox G90LR Vandal-Proof One-Way 90° Hinge is a secure and reliable hinging solution designed for small industrial gates. Supplied individually, these hinges are hot-dip galvanised for excellent corrosion resistance and long-term durability in outdoor environments.
Engineered with vandal-proof protection, the G90LR prevents tampering with the eyebolt when the gate is closed, ensuring enhanced security. The included LR adjustable welding nut allows precise post-installation adjustment, making alignment straightforward and flexible. Its 90° one-way opening design is ideal for small gate applications where strength, reliability, and security are essential.
The LR adjustable welding nut offers installers a crucial advantage, allowing for seamless lateral corrections even after the initial fabrication is complete. This feature effectively compensates for any slight post-deviation or thermal expansion, ensuring the gate remains perfectly squared and the vandal-proof housing stays tightly aligned against the frame.
By integrating this mechanical adjustability with a rugged, hot-dip galvanised finish, the G90LR provides a high-security solution that doesn't sacrifice ease of maintenance. It is an ideal choice for perimeter fencing contractors who require a "fit-and-forget" hinge that can withstand both physical tampering and the most corrosive environmental conditions.
Please note this product is sold individually, not as a pair; 1 unit is 1 hinge set.
Key Features
- Supplied and sold individually
- Vandal-proof design prevents eyebolt tampering
- Hot-dip galvanised finish for corrosion resistance
- One-way 90° opening angle for small gates
- Adjustable LR welding nut for precise alignment
- Strong and durable construction for industrial use
Applications
The Locinox G90LR Vandal-Proof Hinge is suitable for:
- Small industrial and pedestrian gates
- Gates requiring enhanced security and tamper resistance
- Residential, commercial, and industrial installations
- New builds and retrofit projects needing precise hinge adjustment
Contact Us
For guidance on hinge selection or help with installation, contact our team online for expert assistance. Call 01283 512 111, email sales@firstfence.co.uk, or connect via live chat.

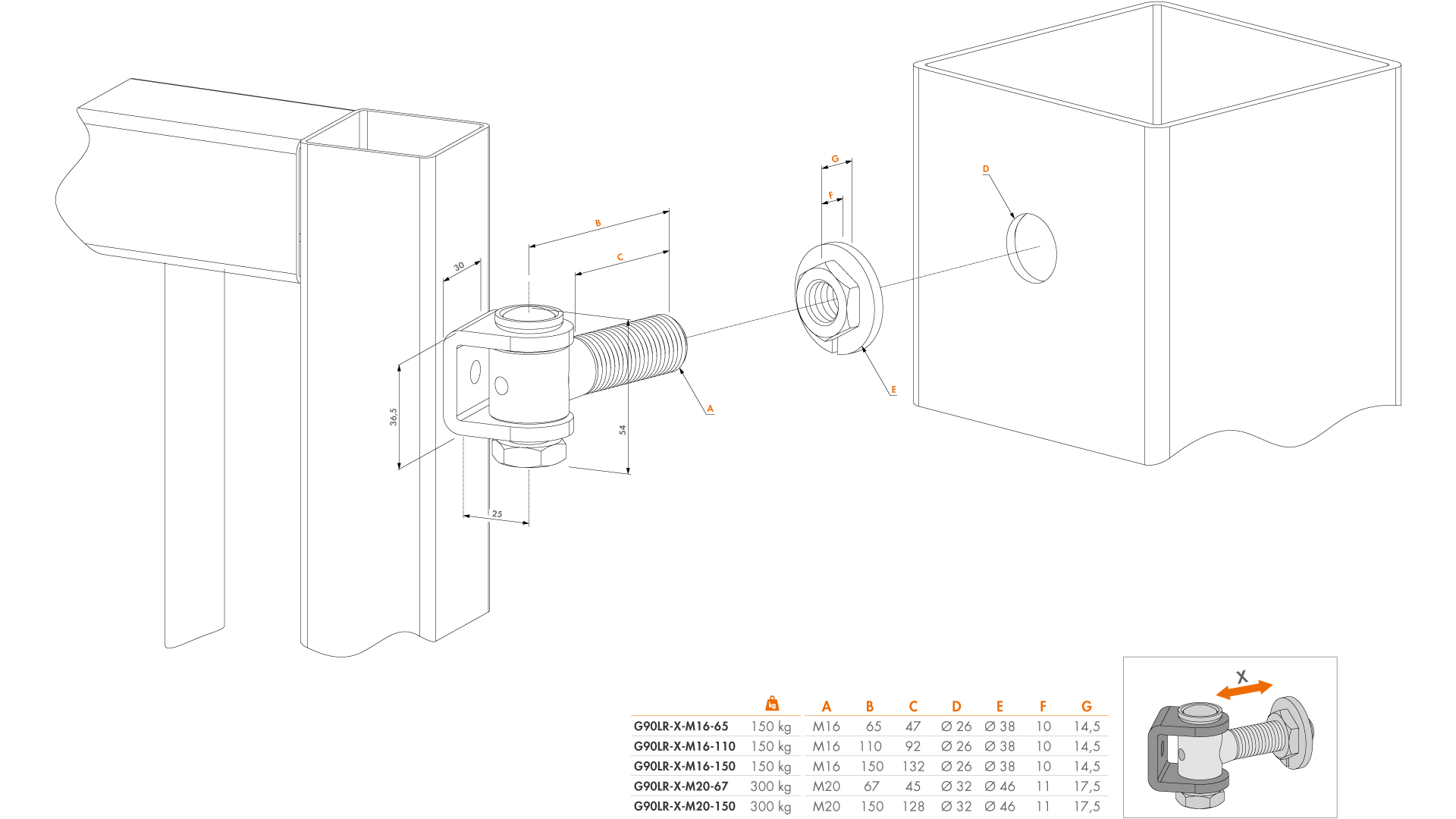

Specifications & Downloads
| Length | 65mm - 150mm |
| Height | 54mm |
| Width | 30mm |
| Movement Angle | 90° |
| Finish | Zinc Plated |
What's Included
| Name | Quantity |
|---|---|
| Eyebolt | 1 |
| Earplate | 1 |
| Adjustable Weld Nut | 1 |
Specifications & Downloads
| Length | 65mm - 150mm |
| Height | 54mm |
| Width | 30mm |
| Movement Angle | 90° |
| Finish | Zinc Plated |
What's Included
| Name | Quantity |
|---|---|
| Eyebolt | 1 |
| Earplate | 1 |
| Adjustable Weld Nut | 1 |
