Locinox Dino 180° Double Bearing Hinge
Product Description
Locinox Dino 180° Double Bearing Hinge
The Locinox Dino 180° Double Bearing Hinge is a premium hinging solution designed to deliver exceptionally smooth and reliable gate movement. Supplied individually, these hinges feature an aluminium housing combined with stainless steel bearings, ensuring long-term durability and consistent performance in outdoor environments.
The double bearing design guarantees smooth opening and closing, even on frequently used gates. Installation is fast and straightforward thanks to the Quick-Fix system, allowing secure mounting with minimal effort while maintaining accurate alignment. With a full 180° opening angle, the Dino hinge pair is suitable for a wide range of pedestrian and access gate applications.
The Dino’s aesthetically superior aluminium casing provides a sleek, modern look that conceals the high-performance internal hardware. By utilising dual stainless steel bearings, it eliminates the mechanical "play" often found in traditional hinges, ensuring the gate leaf remains perfectly stable and silent throughout its entire 180° travel.
Please note this product is NOT sold in pairs - 1 Unit is 1 Hinge Set
Key Features
- Supplied and sold individually
- Double bearing hinge design for smooth gate operation
- Aluminium housing with stainless steel bearings
- 180° opening angle for full gate movement

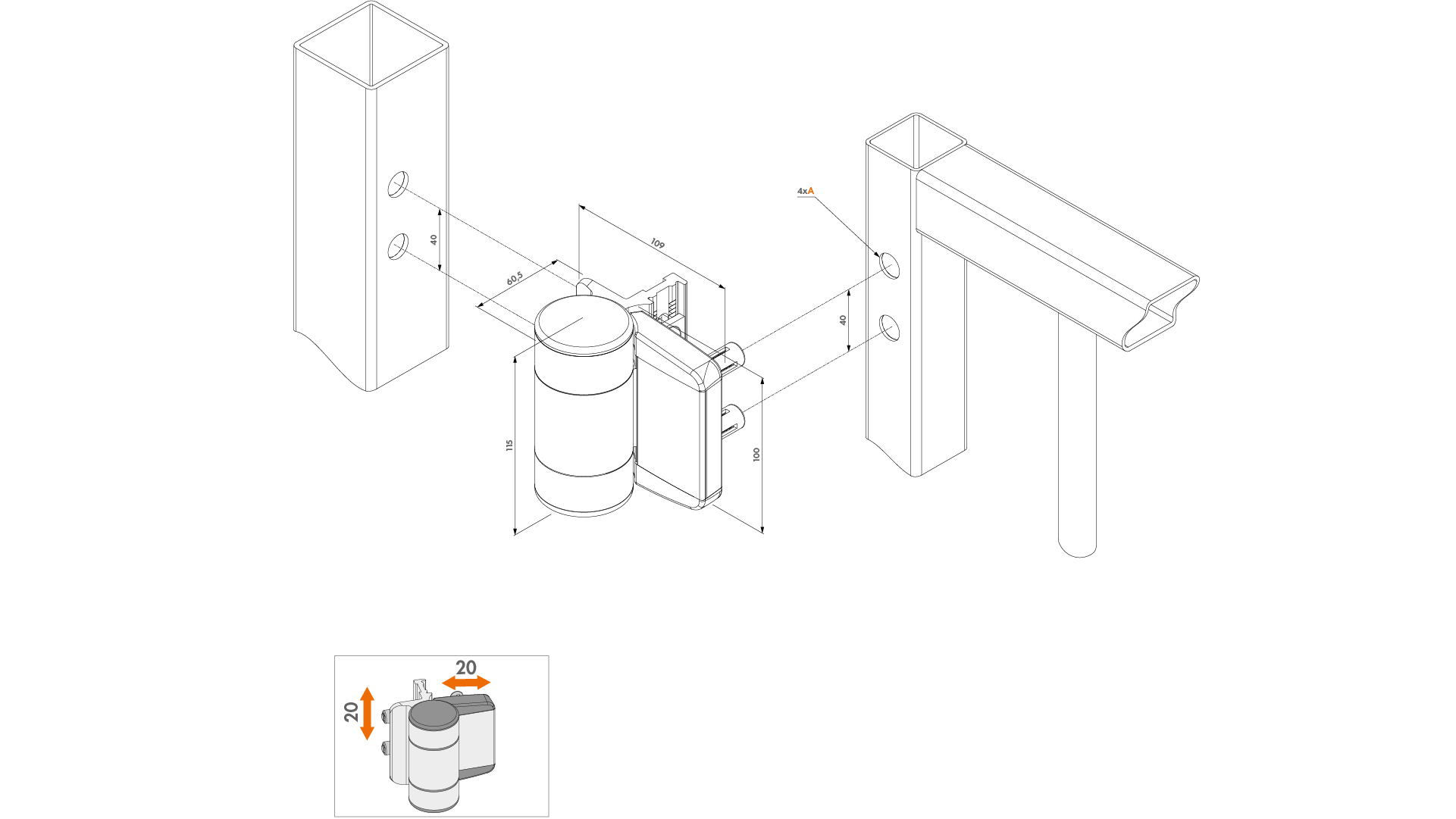

- Quick-Fix system for fast and secure installation
- Durable construction for long-term outdoor use
Applications
The Locinox Dino 180° Double Bearing Hinge Pair is suitable for:
- Pedestrian and access swing gates
- Residential, commercial, and industrial installations
- Gates require smooth and reliable operation
- New builds and retrofit gate projects
Contact Us
For help selecting the right hinge for your gate or installation advice, contact us. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect via live chat for more information.
Specifications & Downloads
| Height | 115mm |
| Width | 109mm |
| Total Weight | Approx. 1.02kg |
| Movement Angle | 180° |
| Maximum Gate Weight | 150kg |
What's Included
| Name | Quantity |
|---|---|
| Hinge | 1 |
| Quick-Fix Fitting Kit | 1 |
Specifications & Downloads
| Height | 115mm |
| Width | 109mm |
| Total Weight | Approx. 1.02kg |
| Movement Angle | 180° |
| Maximum Gate Weight | 150kg |
What's Included
| Name | Quantity |
|---|---|
| Hinge | 1 |
| Quick-Fix Fitting Kit | 1 |
