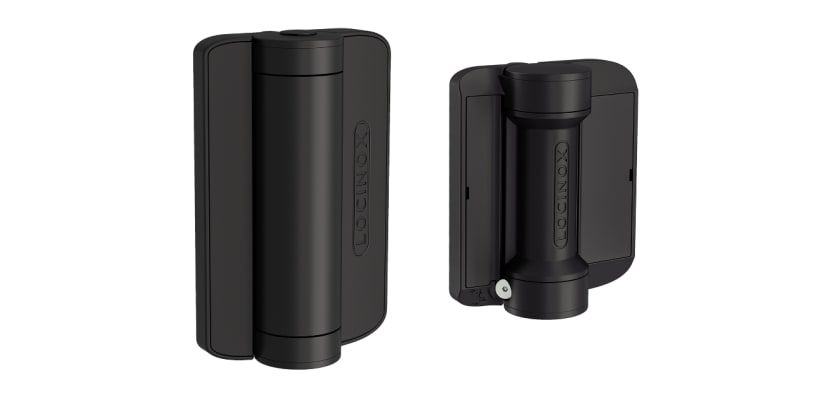

Locinox Caracal 180° Hydraulic Gate Closer and Hinge
Product Description
Locinox Caracal 180° Hydraulic Gate Closer and Hinge
The Locinox Caracal is an aesthetic, compact 180° hydraulic gate closer designed to deliver smooth and reliable operation across a wide range of light- to medium-duty installations. Its glass fibre-reinforced PA housing protects the high-tech internal components, ensuring consistent performance in all weather conditions.
With 20 mm of both vertical and horizontal adjustability, the Caracal offers flexibility during installation and makes fine-tuning straightforward on-site. It is firmly fixed using self-drilling screws, removing the need for any welding and allowing rapid installation on both square and round gate frames.
Supplied with the Serval self-closing hinge, the Caracal provides a complete, ready-to-install closing solution suitable for a range of pedestrian access environments.
Key Features
180° hydraulic gate closer with adjustable closing speed.
Glass fibre-reinforced PA housing for strong, weather-resistant performance.

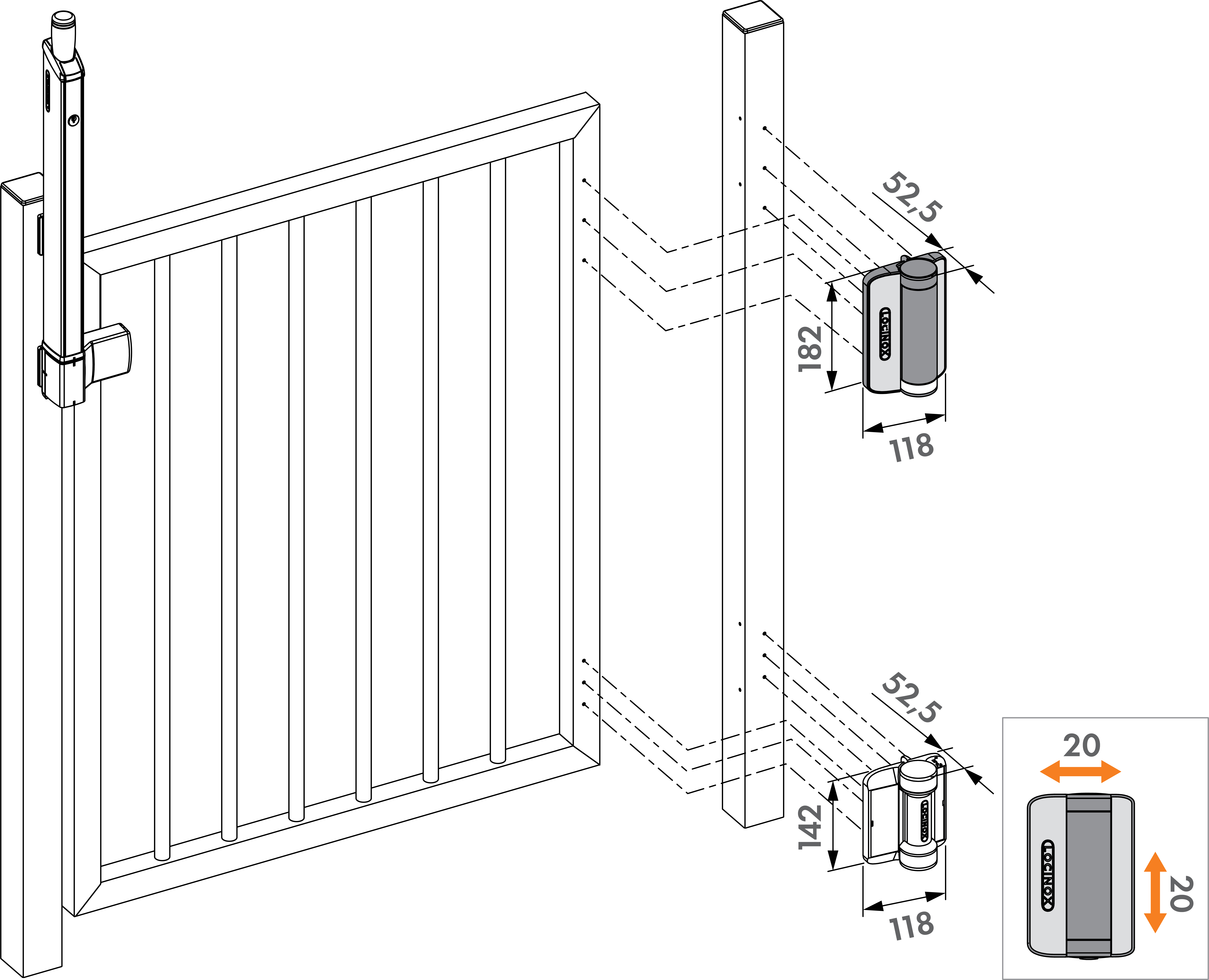

20 mm vertical and horizontal adjustment for easy installation and alignment.
No welding required – securely fixed with self-drilling screws.
Suitable for square and round gate frames.
Supplied with the Serval self-closing hinge for a complete set.
Designed for light- to medium-duty pedestrian gate applications.
Applications
The Locinox Caracal is ideal for:
Swimming pool enclosures.
Playgrounds and public parks.
Residential garden gates.
Light commercial pedestrian access points.
Locations requiring safe, controlled closing without compromising aesthetics.
Explore other Products
The Caracal is often used on high-end residential, modern commercial or apartment complex gates. The SlimStone-2 Keypad is a popular pair for Caracal, as is the Valentino or Leornado Decorative Lock.
Contact Us
If you need assistance choosing the right gate closer for your installation, our team is ready to help. Call 01283 512111 or reach us via online chat for support.
Specifications & Downloads
| Maximum Gate Width | 1100mm |
| Maximum Operating Weight | 65kg |
| Height (Top Hinge) | 182mm |
| Height (Bottom Hinge) | 142mm |
| Width | 118mm |
| Depth | 52.5mm |
| Item Weight | Approx. 1.79kg |
| Maximum Force | 10N |
| Profile Type | Flat, Round, Square |
| Maximum Opening Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Self Closing Hinge Set | 1 |
| Self-Drilling Screw Pack | 1 |
