Locinox Bolt-On-HD-4D Adjustable Hinge
Product Description

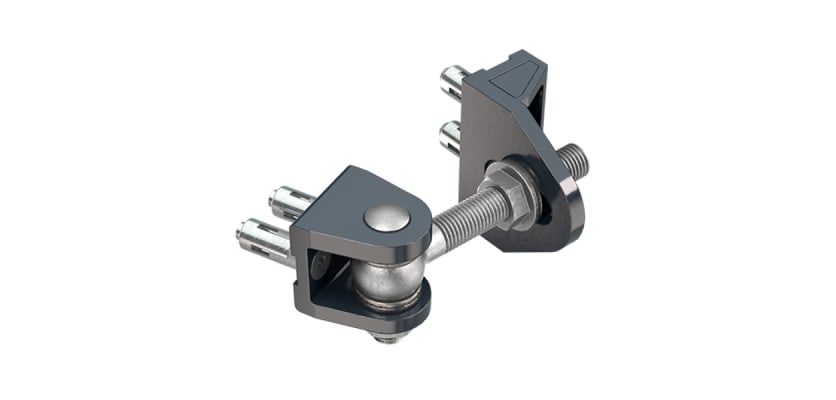

Locinox Bolt On-HD-4D Adjustable Hinge
The Locinox Bolton-HD-4D Adjustable Hinge is a heavy-duty, 180° gate hinge designed to deliver strength, flexibility, and ease of installation without the need for welding. Suitable for demanding gate installations, this hinge provides reliable performance while allowing precise on-site adjustment.
Built to incorporate all the advantages of the GBMU4D range, the Bolton-HD-4D offers full adjustability in height, depth, and the distance between the gate and post. Its vandal-proof design enhances security, while the left/right interchangeable configuration allows the hinge to be used on both left- and right-hand opening gates, simplifying specification and installation.
The four-way adjustment capability allows for precise alignment, compensating for even the slightest post-movement or ground settlement over time. This ensures the gate remains perfectly level, preventing latching failures and reducing stress on the mounting hardware.
By eliminating the need for specialised welding equipment, the Bolton-HD-4D significantly reduces labour costs and onsite installation time. Its hot-dip galvanised components provide a high-performance barrier against oxidation, making it a premier choice for high-traffic environments where mechanical reliability and a clean, bolt-on aesthetic are paramount.
Key Features
- Heavy-duty adjustable gate hinge with 180° opening
- No welding required for installation
- Adjustable height, depth, and gate-to-post distance
- Vandal-proof design for enhanced security
- Left/right interchangeable for flexible use
- Suitable for a wide range of gate installations
Applications
The Locinox Bolton-HD-4D Adjustable Hinge is suitable for:
- Pedestrian and access gates
- Residential, commercial, and industrial gate installations
- New builds and retrofit projects
- Applications requiring precise gate alignment and adjustability
Contact Us
For guidance on hinge selection or installation advice, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect via live chat for more information.
Specifications & Downloads
| Total Weight | Approx. 0.815kg |
| Maximum Gate Width | 2000mm |
| Bolt Type | M16 |
What's Included
| Name | Quantity |
|---|---|
| Bolt-on Earplate | 1 |
| Bolt-on Grip | 1 |
| Quick-Fix Fixing Kit | 1 |
