KTOM5024E Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 5.0m Per Leaf
Product Description
KTOM5024E Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 5.0m Per Leaf
The KTOM5024E is a comprehensive kit that includes all the essential components needed to transform a manual gate into an automated system.

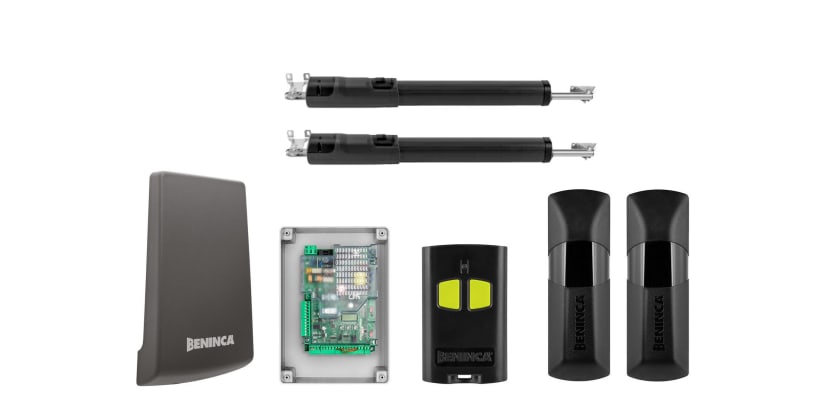

Kit Contents

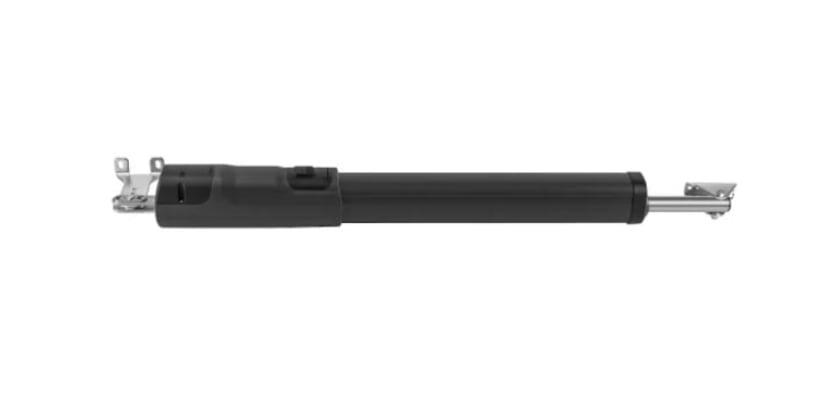

TOM5024E Swing Gate Operator (x2)
The TOM5024E is a dependable, advanced gear motor featuring two adjustable mechanical stops to ensure smooth operation during opening and closing. Accessible from above and located beneath the shaft's metal cover, these stops provide convenient operation. Designed for automating various swing gates, this unit stands out with its compact 96mm width and screw-in brackets, allowing for easy installation.

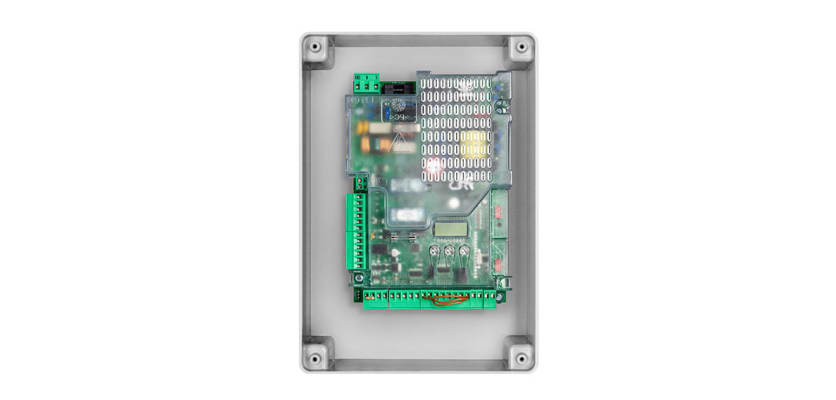

Trust24 Control Panel
The Trust.24 is designed for use with the TOM series gate control motors. It features an integrated LCD and radio receiver. It has a range of programmable features and is compatible with remote transmitters.

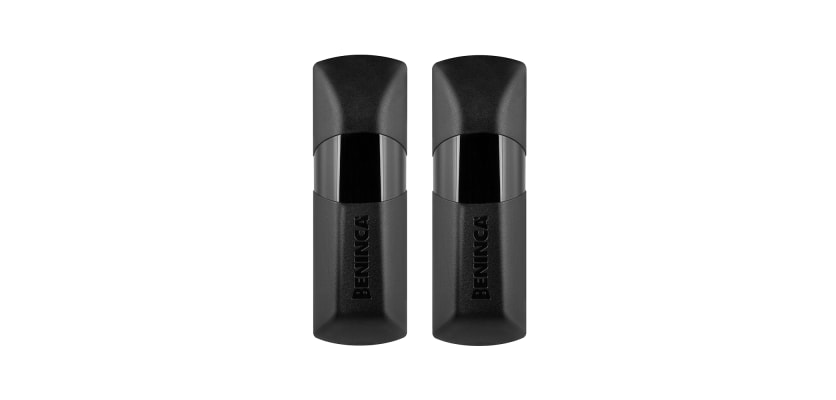

PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or movement, causing the gate to stop or reverse, preventing accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a versatile transmitter designed for gate automation systems. It can control two separate functions or gates, making it suitable for properties with multiple gates or where separate commands for entry and exit are needed. This kit comes with 2 transmitters.

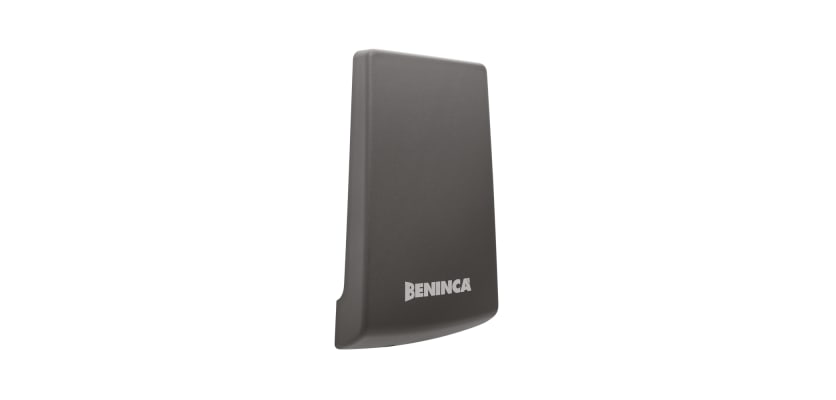

AWO Long Range Aerial
Long-range aerials enhance gate automation systems by increasing the range and reliability of remote control functions. Ideal for properties with long driveways, they allow gates to be operated from a greater distance. This kit includes one AWO long-range aerial, designed for external installation, with a 5m shielded RG58 cable and an IP54-rated box.
Get More From First Fence
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, alisade, mesh, railings, and specialist and custom offerings.
Contact Us
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512 111 or by using the online chat tool.
Specifications & Downloads
| Motor Supply | 24 Vdc |
| Gate Usage | Residential |
| Motor Type | Electromechnical |
| Duty Cycle | 99% |
| Wind Loading | 25% |
| Built In Physical Stops | Yes |
| Fixing Bracket Type | Screw on |
| Protection Level | IP44 |
| Encoder | Yes |
| Max Gate Width | 5.0m |
What's Included
| Name | Quantity |
|---|---|
| TOM5024E Above Ground Swing Gate Operator | 2 |
| Brainy24 Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
Specifications & Downloads
| Motor Supply | 24 Vdc |
| Gate Usage | Residential |
| Motor Type | Electromechnical |
| Duty Cycle | 99% |
| Wind Loading | 25% |
| Built In Physical Stops | Yes |
| Fixing Bracket Type | Screw on |
| Protection Level | IP44 |
| Encoder | Yes |
| Max Gate Width | 5.0m |
What's Included
| Name | Quantity |
|---|---|
| TOM5024E Above Ground Swing Gate Operator | 2 |
| Brainy24 Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
