KTOM4024ME Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 4.0m Per Leaf
| Motor Supply | 24 Vdc |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 99% |
| Wind Loading | 25% |
| Built In Physical Stops | Yes |
| Fixing Bracket Type | Screw on |
| Protection Level | IP44 |
| Encoder | Yes |
| Max Gate Width | 3.5m |
| Name | Quantity |
|---|---|
| TOM4024E Above Ground Swing Gate Operator | 2 |
| Trust24 Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
KTOM4024ME Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 4.0m Per Leaf
The KTOM4024ME is a comprehensive kit that includes all the essential components needed to transform a manual gate into an automated system.

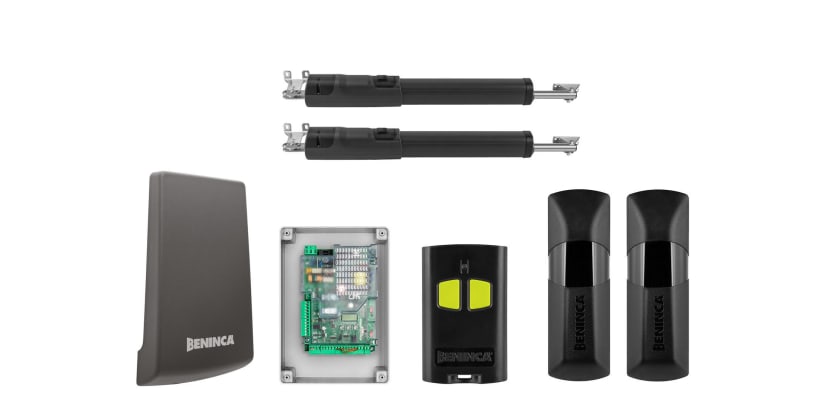

Kit Contents

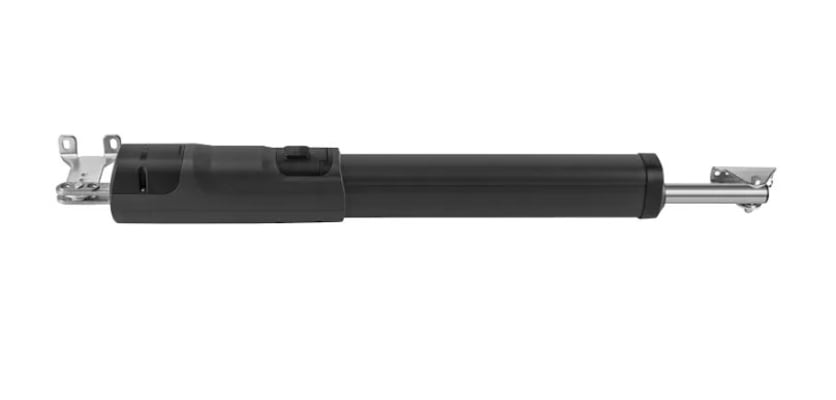

TOM4024E Swing Gate Operator (x2)
The TOM4024E is a reliable, advanced gear motor with two adjustable stops for smooth opening and closing. These stops are easily accessible under the metal shaft cover. Designed for swing gates, it features a compact 96mm width and screw-in brackets for easy installation.
Its 45° wiring cable angle minimises ground clearance, while aligned brackets optimise load distribution for longer actuator life. The worm screw is protected by a wiper ring and stainless steel shaft for durability.

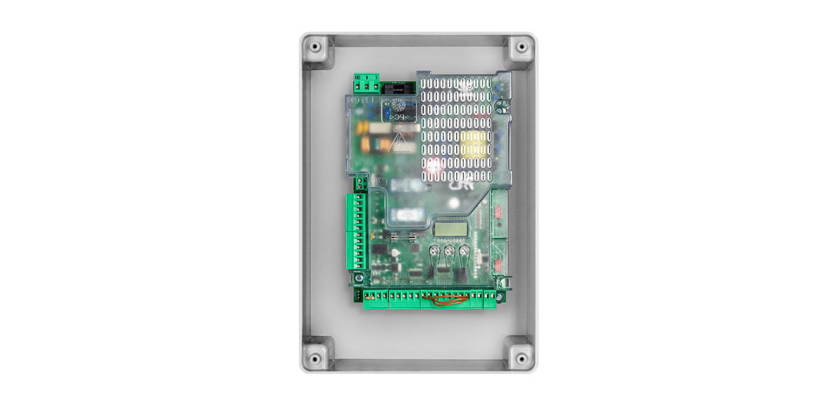

Trust24 Control Panel
The Trust.24 is designed for use with the TOM series gate control motors. It features an integrated LCD display and radio receiver. It has a range of programmable features and is compatible with remote transmitters.
PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or movement, causing the gate to stop or reverse, preventing accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a flexible transmitter for gate automation, capable of controlling two functions or gates, perfect for properties with multiple gates or separate entry and exit commands. It features secure coding technology to prevent unauthorized access and comes with two TO.GO2VA transmitters.

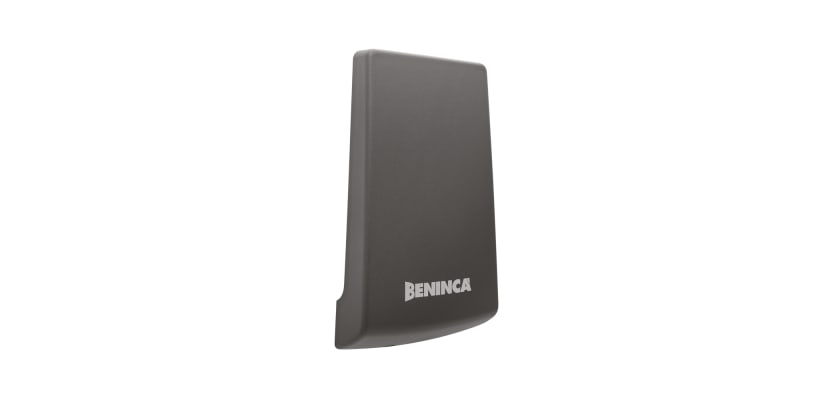

AWO Long Range Aerial
Long-range aerials enhance gate automation systems by increasing the range and reliability of remote control functions. Ideal for properties with long driveways, they allow gates to be operated from a greater distance. This kit includes one AWO long-range aerial, designed for external installation, with a 5m shielded RG58 cable and an IP54-rated box.
