KSDU.IT14NVE Underground Single Leaf Swing Gate Operator Kit - Up to 2.1m Leaf
Product Description
KSDU.IT14NVE Underground Single Leaf Swing Gate Operator Kit - Up to 2.1m Leaf
The KSDU.IT14NVE Underground Single Leaf Swing Gate Operator Kit is a comprehensive collection of all the items needed to convert your gate into an automatic operation.

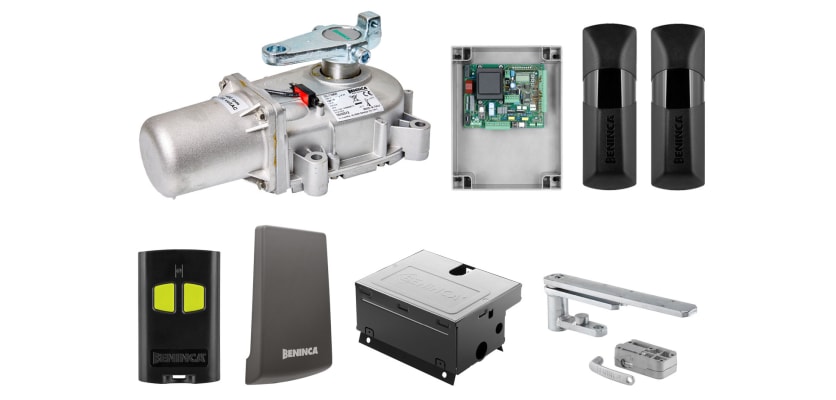

Kit Contents

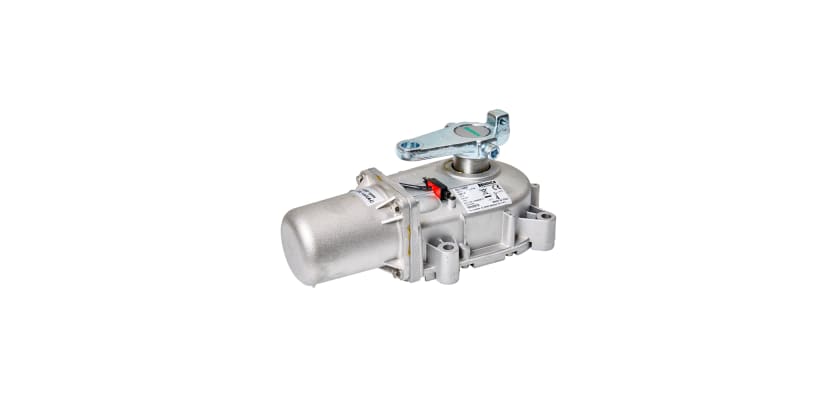

DU.IT14NVE Underground Swing Gate Operator
The DU.IT14NVE is a 230 Vac underground operator for gate leaves up to 2.1 metres.
This gate operator is electromechanical and irreversible, meaning that after the gate is opened or closed, it cannot be manually adjusted without first releasing the mechanism. This feature effectively prevents unauthorised tampering or access attempts.
Underground swing gate operators are frequently selected when appearance is important, offering a discreet and streamlined option for gate automation. Their main benefit is that the motors and mechanical parts are hidden below the gate. This design saves above-ground space and protects the equipment from harsh weather conditions.

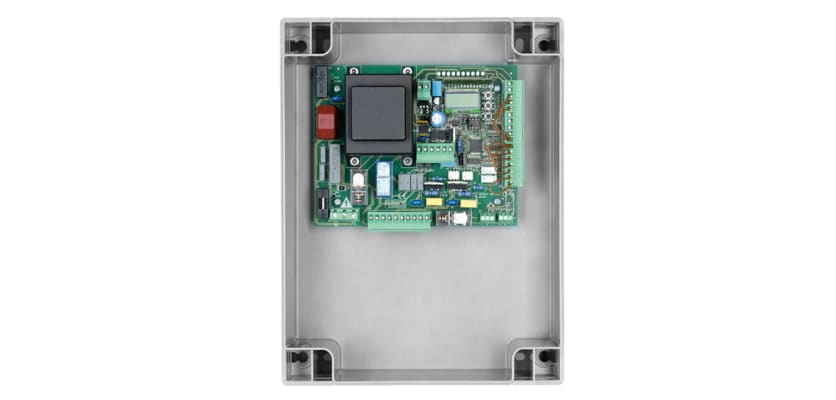

Brainy 230V Control Panel
The Brainy 230V control panel is specifically designed for swing gates and can support one or two motors. It includes a built-in LCD for straightforward setup and a 433.92 MHz radio receiver that works with Advanced Rolling Code, Rolling Code, and Fixed Code. The panel features removable terminal boards, multiple operating modes (automatic, semi-automatic, deadman’s), and inputs for an encoder, individual limit switches, and various gate functions. It also has dedicated photocell inputs for managing opening and closing phases, as well as an input for N.C. or 8K2 sensitive edges.

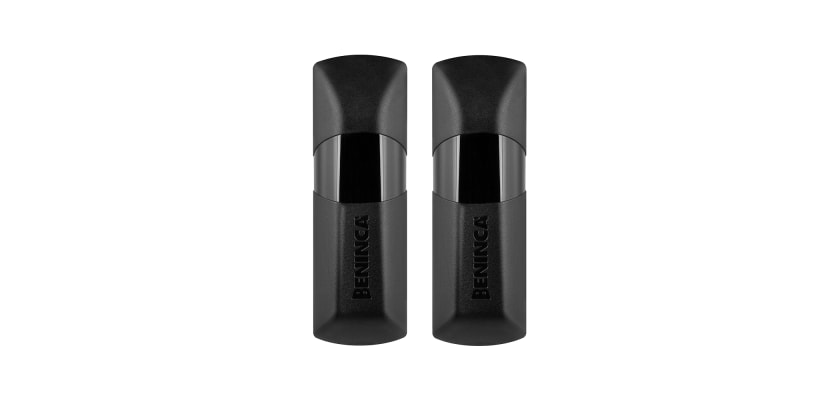

Pupilla Hard-Wired Photocells - 1 pair
The Pupilla photocells are essential components in gate automation systems, enhancing security and safety. Positioned near gate openings, they establish an invisible barrier that detects movement or obstacles, prompting the gate to halt or reverse to avoid damage or accidents. The Pupilla is a reliable and versatile photocell featuring a 180-degree rotating lens.

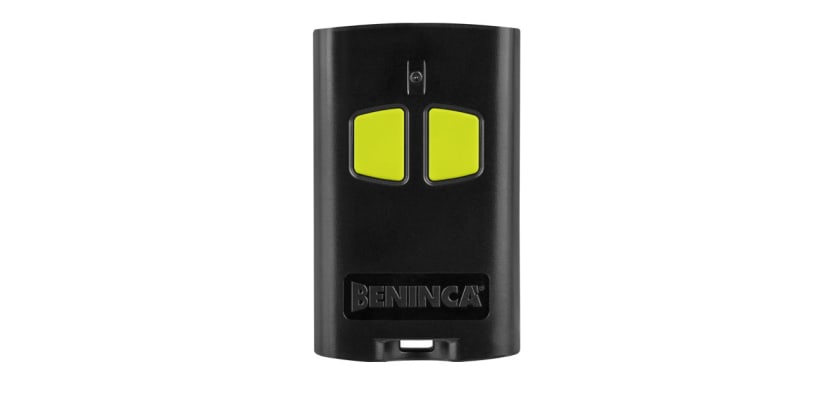

TO.GO2VA Two Button Dual Code Transmitter (x2)
The TO.GO2VA is a versatile transmitter used for gate automation systems. It has the facility to control two separate functions or gates, making it ideal for properties with multiple gates or where separate commands for entry and exit are needed. This transmitter uses secure coding technology to prevent unauthorised access and code cloning. This product comes with a battery.

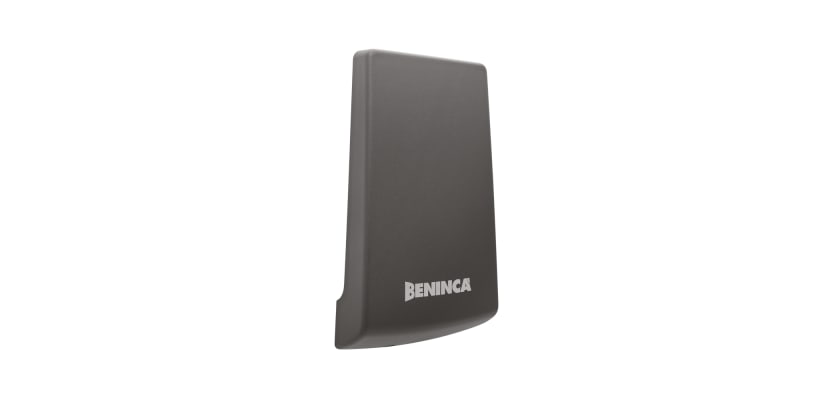

AWO Long Range Aerial
The AWO long range aerial is designed for outdoor use and comes with a 5 metre shielded RG58 cable enclosed in an IP54-rated housing. Operating at 433.92 MHz, this antenna provides excellent range and effective penetration through physical obstacles.

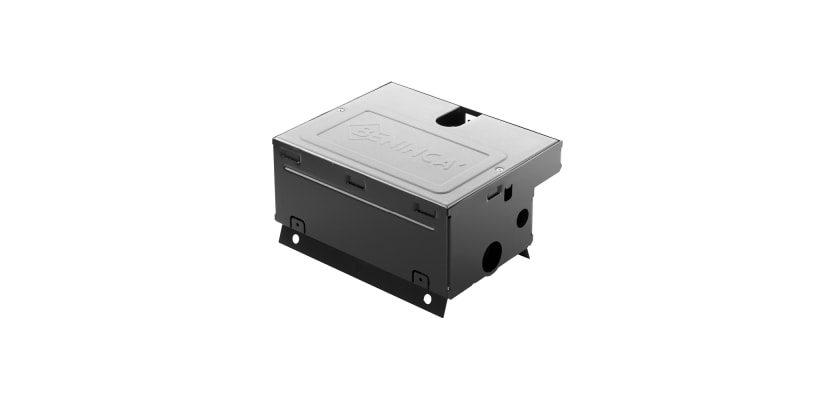

DU.CZS Foundation Box for DU.IT Underground Motors
The DU.CZS foundation box is for encasing the underground gate operator. Foundation Boxes play a vital role in protecting gate operators, ensuring efficient operation and longevity. The motor fits perfectly inside the foundation box and is then protected from debris, moisture and temperature fluctuations.

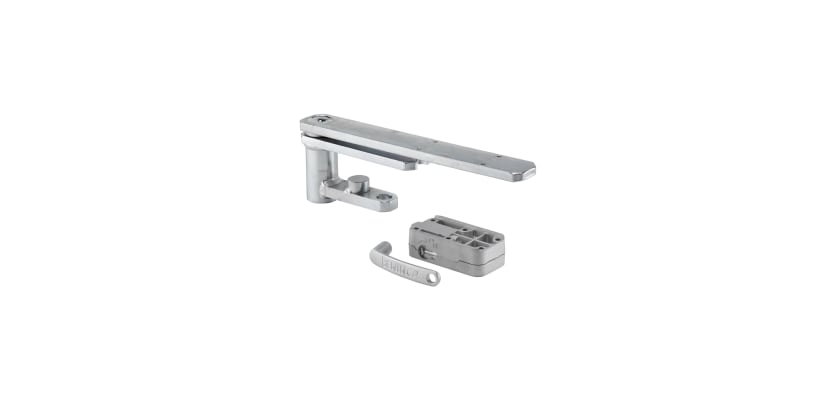

SB.DUITL Manual Release Shoe Kit with Hex Key
The SB.DUIT kit allows users to manually override the automated system if needed, such as during power cuts or maintenance.
Get More From First Fence
First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates, such as access gates, including palisade, mesh, railings, and specialist and custom offerings.
Contact Us
For assistance with this product line, please reach out. Our sales team is ready to provide expert guidance to help you find the ideal product. You can contact them at 01283 512 111 or through the online chat tool.
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 40% |
| Wind Loading | 50% |
| Built In Physical Stops | Yes |
| Protection Level | IP67 |
| Encoder | Yes |
| Max Gate Width | 2.1m |
What's Included
| Name | Quantity |
|---|---|
| DU.IT14NVE Underground Swing Gate Operator | 1 |
| Brainy 230V Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
| DU.CZS Foundation Box | 1 |
| SB.DUITL Manual Release Shoe Kit with Hex Key | 1 |
