KSDU.350NVE Underground Single Leaf Swing Gate Operator Kit - Up to 3.0m Leaf
Product Description
KSDU.350NVE Underground Single Leaf Swing Gate Operator Kit - Up to 3.5m Leaf
The KSDU.350NVE Underground Swing Gate Operator Kit contains everything needed to transform a single leaf manual gate into an automatic system.
Kit Contents
DU.350NVE Underground Swing Gate Operator
The DU.350NVE offers versatility for gates with widths up to 3.5m. This heavy duty gate operator functions via electromechanical mechanisms and operates irreversibly. After the gate is closed or opened, manual manipulation is not possible without first disengaging the mechanism; this feature effectively prevents unauthorised tampering or access attempts. While often found in industrial or commercial settings, this gate type can also be effectively utilised in residential environments.
Underground swing gate operators are often chosen in situations where aesthetics are paramount, providing a discreet and sleek automation solution. Their primary benefit lies in their concealment, with motors and mechanical parts buried beneath the gate, saving above-ground space and shielding them from harsh weather.
Brainy 230V Control Panel
The Brainy 230V control panel is designed for swing gates and supports one or two motors. It features an integrated LCD for easy setup and a 433.92 MHz radio receiver compatible with Advanced Rolling Code, Rolling Code, and Fixed Code. The design includes removable terminal boards, offers multiple operating modes (automatic, semi-automatic, deadman’s), and has inputs for an encoder, individual limit switches, and various gate functions. Separate photocell inputs manage opening and closing phases, and there’s also an input for N.C. or 8K2 sensitive edges.

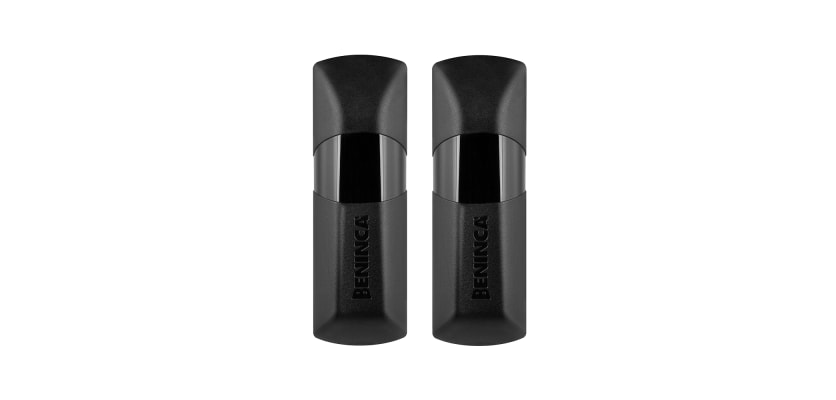

Pupilla Hard-Wired Photocells - 1 pair
The Pupilla photocells play an important role within gate automation systems, ensuring security and safety. When placed near gate openings, they create an invisible barrier that detects movement or obstacles, triggering the gate to stop or reverse to prevent damage or accidents. The Pupilla is a dependable and adaptable photocell with a 180-degree rotating lens.

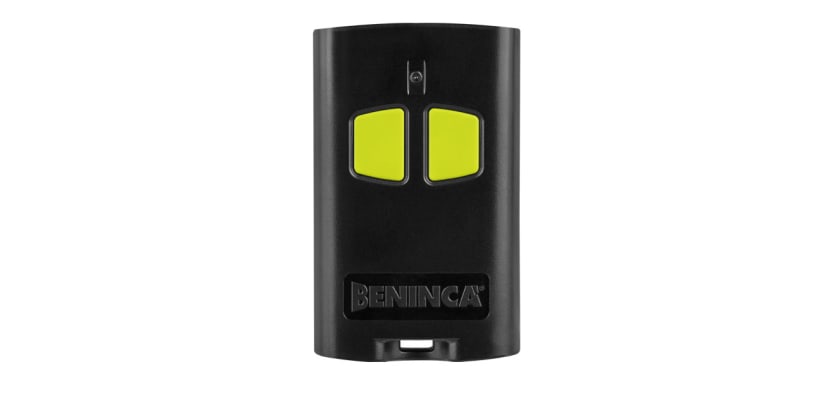

TO.GO2VA Two Button Dual Code Transmitter (x2)
The TO.GO2VA is a versatile transmitter used for gate automation systems. It has the facility to control two separate functions or gates, making it ideal for properties with multiple gates or where separate commands for entry and exit are needed. This transmitter uses secure coding technology to prevent unauthorised access and code cloning. This product comes with a battery.

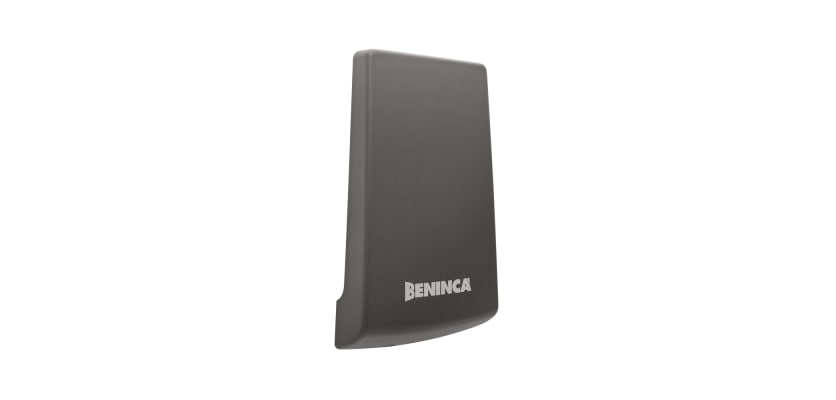

AWO Long Range Aerial
The AWO long range aerial is designed for outdoor use and comes with a 5 metre shielded RG58 cable enclosed in an IP54-rated housing. Operating at 433.92 MHz, this antenna provides excellent range and effective penetration through physical obstacles.
DU.350CF Foundation Box
The DU.350CF foundation box is for encasing the underground gate operator. Foundation Boxes play a vital role in protecting gate operators, ensuring efficient operation and longevity. The motor fits perfectly inside the foundation box and is then protected from debris, moisture and temperature fluctuations.

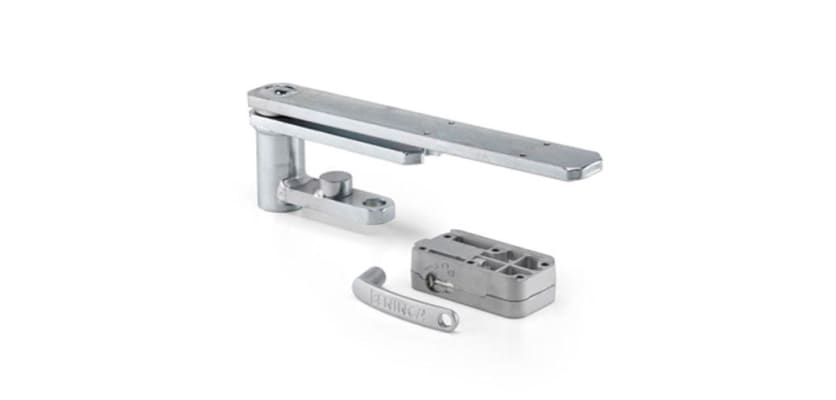

SB.DU350.L Manual Release Shoe Kit with Hex Key
The SB.DU350.L kit allows users to manually override the automated system if needed, such as during power cuts or maintenance.
Get More From First Fence
First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates, such as access gates, including palisade, mesh, railings, and specialist and custom offerings.
Contact Us
For assistance with this product line, please reach out. Our sales team is ready to provide expert guidance to help you find the ideal product. You can contact them at 01283 512 111 or through the online chat tool.
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Light Commercial |
| Motor Type | Electromechanical |
| Duty Cycle | 99% |
| Wind Loading | 75% |
| Built In Physical Stops | Yes |
| Protection Level | IP67 |
| Encoder | Yes |
| Max Gate Width | 3.5m |
What's Included
| Name | Quantity |
|---|---|
| DU.350NVE Underground Swing Gate Operator | 1 |
| Brainy 230V Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
| DU.350CF Foundation Box | 1 |
| SB.DU350L Manual Release Shoe Kit with Hex Key | 1 |
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Light Commercial |
| Motor Type | Electromechanical |
| Duty Cycle | 99% |
| Wind Loading | 75% |
| Built In Physical Stops | Yes |
| Protection Level | IP67 |
| Encoder | Yes |
| Max Gate Width | 3.5m |
What's Included
| Name | Quantity |
|---|---|
| DU.350NVE Underground Swing Gate Operator | 1 |
| Brainy 230V Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
| DU.350CF Foundation Box | 1 |
| SB.DU350L Manual Release Shoe Kit with Hex Key | 1 |
