KDU.IT14NE Underground Double Leaf Swing Gate Operator Kit - Up to 3.0m Per Leaf
Product Description
KDU.IT14NE Underground Double Leaf Swing Gate Operator Kit - Up to 3.0m Per Leaf
The KDU.IT14NE Underground Double Leaf Swing Gate Operator Kit is a comprehensive collection of all the items needed to convert your double gate into an automatic operation.

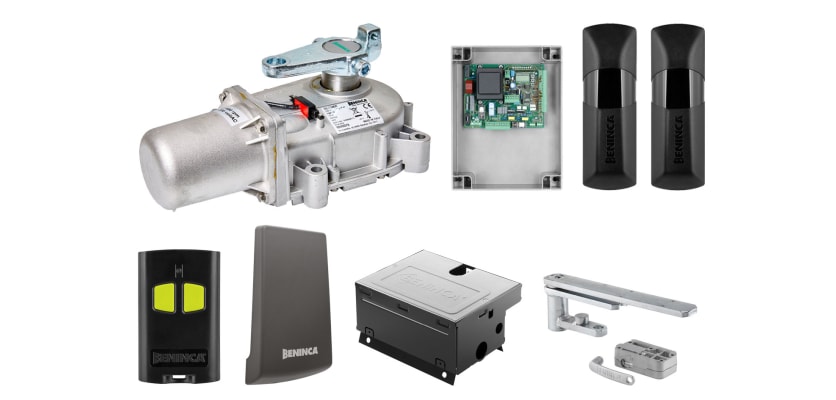

Kit Contents

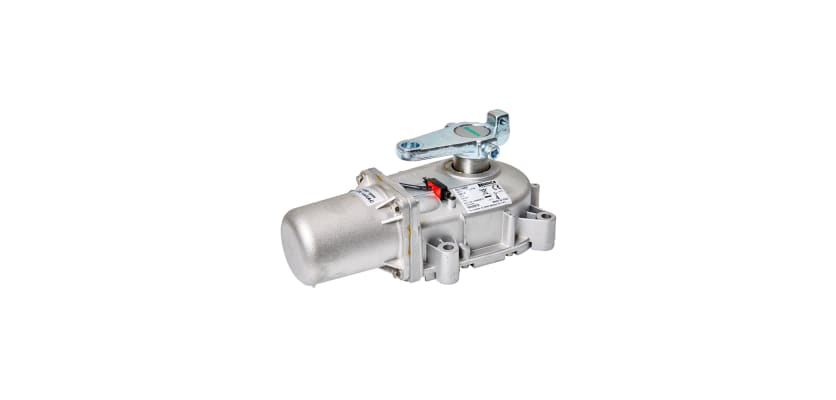

DU.IT14NE Underground Swing Gate Operator (x2)
The DU.IT14NE gate operator is a versatile solution for gates up to 3.0m wide (per leaf). This gate operator is designed to be irreversible, meaning that after the gate is opened or closed, it cannot be manually adjusted without first releasing the mechanism. This feature deters tampering and prevents unauthorised access attempts.
Underground swing gate operators are ideal for a discreet look, as they hide the motors below ground, saving space and shielding them from harsh weather.

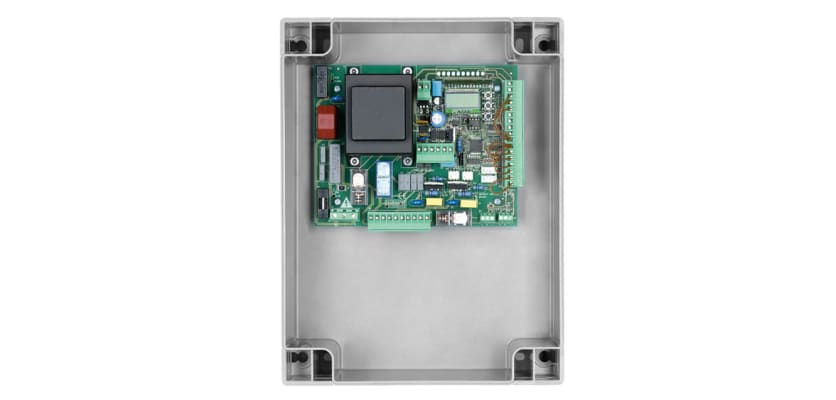

Brainy 230V Control Panel
The Brainy 230V control panel is designed for swing gates and supports one or two motors. It includes an LCD for easy setup, a 433.92 MHz receiver compatible with multiple codes, removable terminal boards, and various operating modes. Inputs support an encoder, limit switches, gate functions, separate photocells for open/close phases, and N.C. or 8K2 sensitive edges.

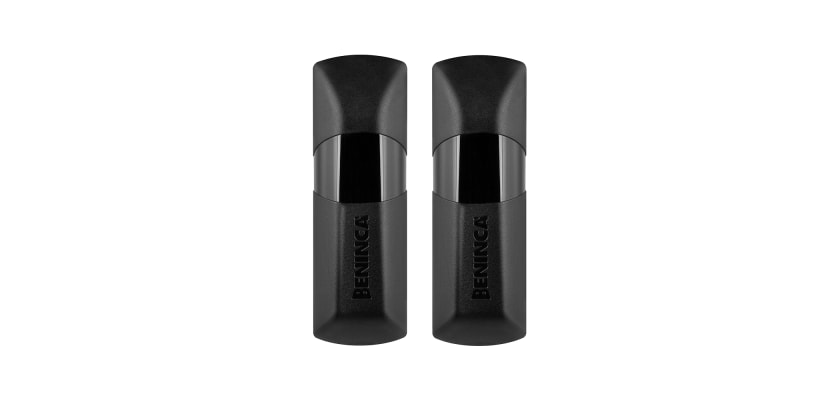

Pupilla Hard-Wired Photocells - 1 pair
The Pupilla photocells play an important role within gate automation systems, ensuring security and safety. When placed near gate openings, they create an invisible barrier that detects movement or obstacles, triggering the gate to stop or reverse to prevent damage or accidents. The Pupilla is a reliable and versatile photocell featuring a lens that rotates 180 degrees.

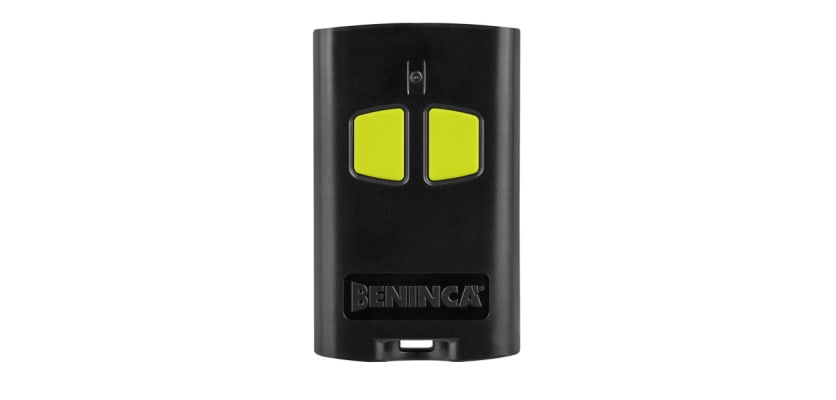

TO.GO2VA Two Button Dual Code Transmitter (x2)
The TO.GO2VA is a flexible transmitter designed for gate automation systems, capable of controlling two different gates or functions, making it perfect for properties with multiple gates or separate entry and exit commands. It utilises secure coding technology to prevent unauthorised access and code duplication and includes a battery.

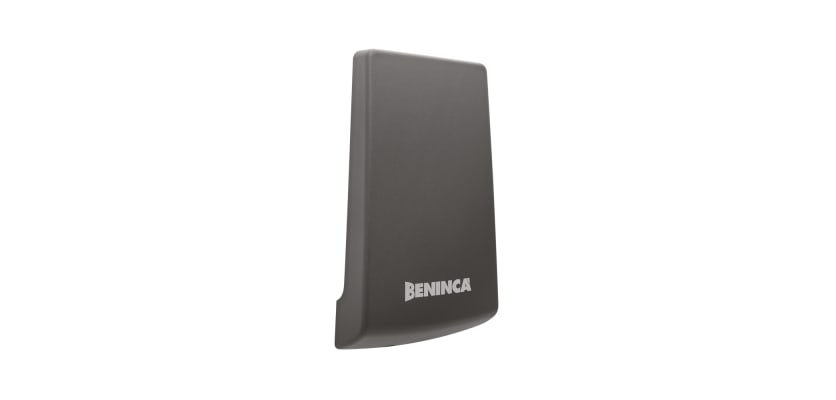

AWO Long Range Aerial
The AWO long range aerial is designed for outdoor use and comes with a 5 metre shielded RG58 cable enclosed in an IP54-rated housing. Operating at 433.92 MHz, this antenna provides excellent range and effective penetration through physical obstacles.

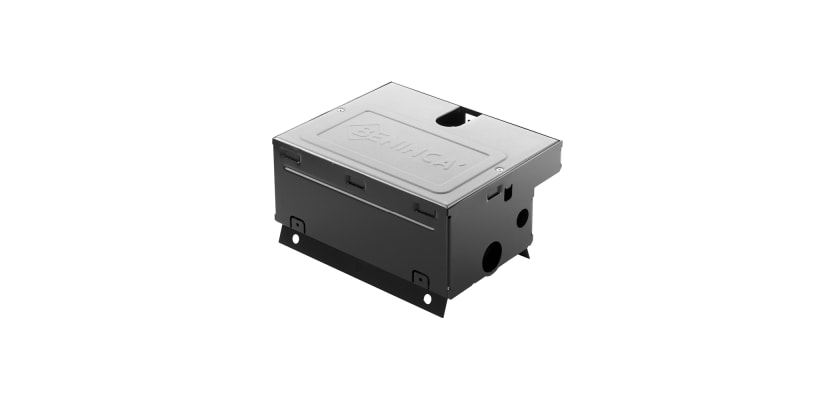

DU.CZS Foundation Box for DU.IT Underground Motors (x2)
The DU.CZS foundation box is for encasing the underground gate operator. Foundation Boxes play a vital role in protecting gate operators, ensuring efficient operation and longevity. The motor fits perfectly inside the foundation box and is then protected from debris, moisture and temperature fluctuations.

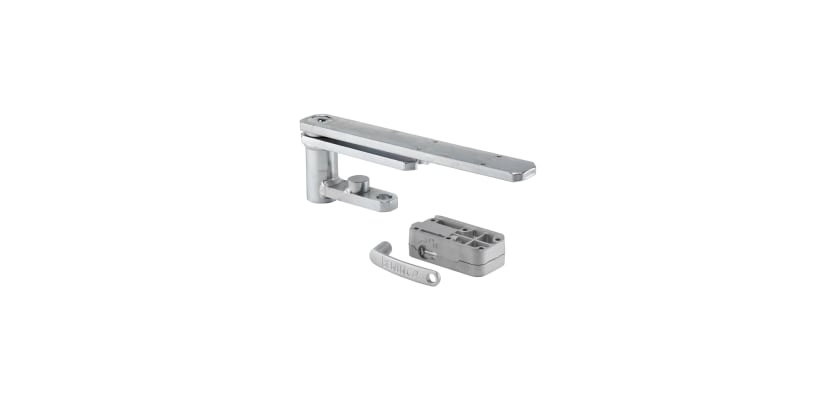

SB.DUITL Manual Release Shoe Kit with Hex Key (x2)
The SB.DUITL kit allows users to manually override the automated system if needed, such as during power cuts or maintenance.
Get More From First Fence
First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates, such as access gates, including palisade, mesh, railings, and specialist and custom offerings.
Contact Us
For assistance with this product line, please reach out. Our sales team is ready to provide expert guidance to help you find the ideal product. You can contact them at 01283 512 111 or through the online chat tool.
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 30% |
| Wind Loading | 50% |
| Built In Physical Stops | Yes |
| Protection Level | IP67 |
| Encoder | Yes |
| Max Gate Width | 3.0m [Per Leaf] |
What's Included
| Name | Quantity |
|---|---|
| DU.IT14NE Underground Swing Gate Operator | 2 |
| Brainy 230V Control Panel | 2 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
| DU.CZS Foundation Box | 2 |
| SB.DUITL Manual Release Shoe Kit with Hex Key | 2 |
Specifications & Downloads
| Motor Supply | 230 Vac |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 30% |
| Wind Loading | 50% |
| Built In Physical Stops | Yes |
| Protection Level | IP67 |
| Encoder | Yes |
| Max Gate Width | 3.0m [Per Leaf] |
What's Included
| Name | Quantity |
|---|---|
| DU.IT14NE Underground Swing Gate Operator | 2 |
| Brainy 230V Control Panel | 2 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
| DU.CZS Foundation Box | 2 |
| SB.DUITL Manual Release Shoe Kit with Hex Key | 2 |
