Height | 2.4m [Installed] |
Access Width | 1.2m |
Number of Leaves | 1 |
Mesh Type | 868 Mesh |
Material | Pre-Galvanised/Hot Dip Galvanised Steel |
PPC Colours | Black or Green |
PPC Standards | BS EN 13438 |
Galvanising Standards | ISO 1461 |
Safety Standards | BS 12604 [When used with a Gate Safety Tether] |
Wind Loading Standards Compliance | BS-EN 1991-1-4:2005+A1:2010 |
Name | Quantity |
---|---|
RapidShield® 2.4m High 60 x 60mm 868 Mesh Hinge Frame | 1 |
RapidShield® 2.4m High 60 x 60mm 868 Mesh Catch Frame | 1 |
AdaptiGuard® 2.4m High x 1.2m Wide Slider Gate Leaf | 1 |

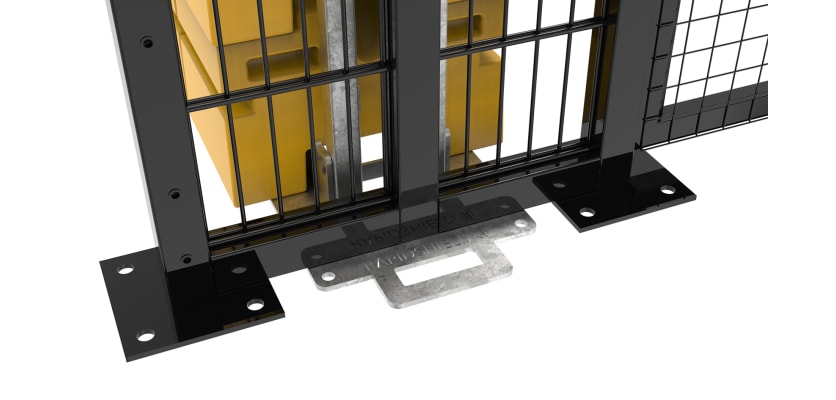

RapidShield® UniFoot Kit with 200kg Ballast | 2 |
Black Ribbed Inserts [60 x 60mm] | 4 |
Universal Mesh Fencing Clips [Black] | 16 |
M8 x 40mm Star Profile Mesh Security Screw | 16 |
Black Ribbed Inserts [40 x 40mm] | 2 |
Adjustable Gate Eyes | 2 |
M5 x 20mm One-Way Pan Head Screw A2 | 1 |
M5 Shear Nut A2 | 1 |
Universal Gate Drop Bolt | 1 |
Please Note: To assemble the Rapid Deployment Mesh Fencing, you will need an M8 x 40mm Star Torque Bit. This item is available in the "Purchasable Extras" section above and can easily be added to your order.

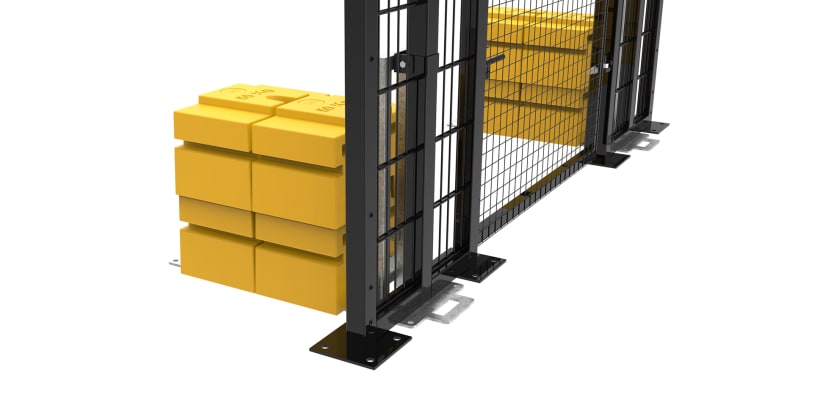

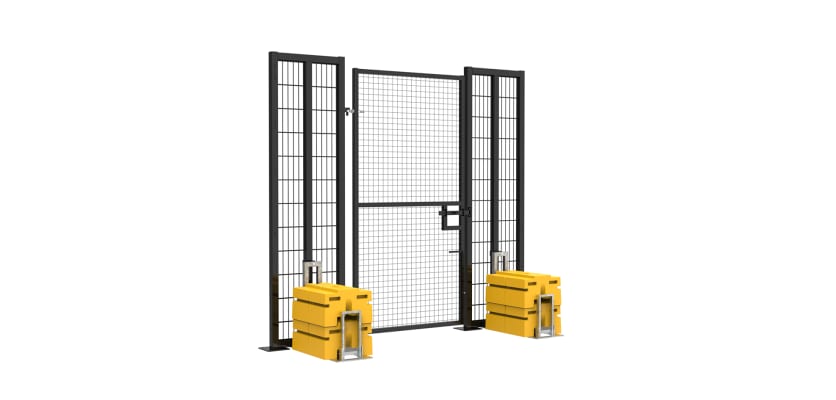

The 2.4m High x 1.2m Wide Single Leaf Gate Kit is a robust and secure access solution designed to complement high-security mesh fencing systems. Ideal for locations requiring controlled pedestrian entry points, this gate offers exceptional strength, stability, and durability. Whether installed on a construction site, industrial facility, school perimeter, or infrastructure project, it helps maintain security and site integrity while allowing authorised foot traffic to move safely and efficiently.
Engineered to match 868 V mesh or 358 mesh fencing, this single leaf gate delivers consistent performance and appearance across the fence line. With a height of 2.4 metres, it acts as both a physical and psychological deterrent to trespassers. The narrow 1.2m width ensures it’s perfectly suited for pedestrian access, creating a clearly defined entry point without compromising perimeter protection.

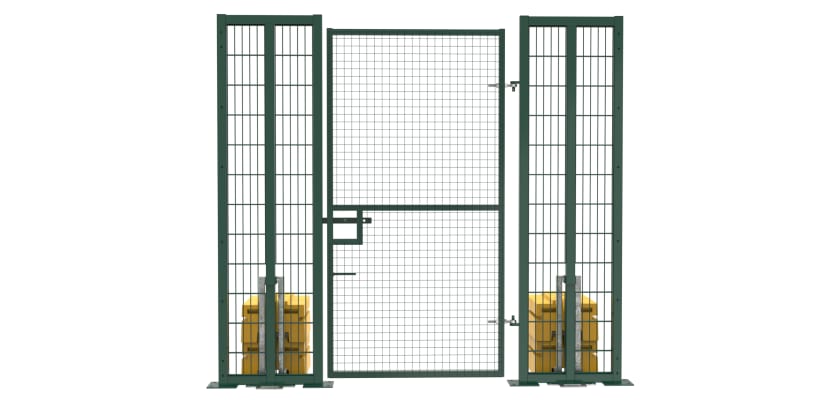

Manufactured from high-quality pre-galvanised steel, the gate frame is designed to withstand heavy use and the challenges of outdoor environments. It is finished with a polyester powder coating in a choice of black (RAL 9005) or green (RAL 6005) as standard, providing enhanced resistance to corrosion and a professional appearance that blends into a wide range of settings. Custom colours are available upon request for projects requiring bespoke finishes.

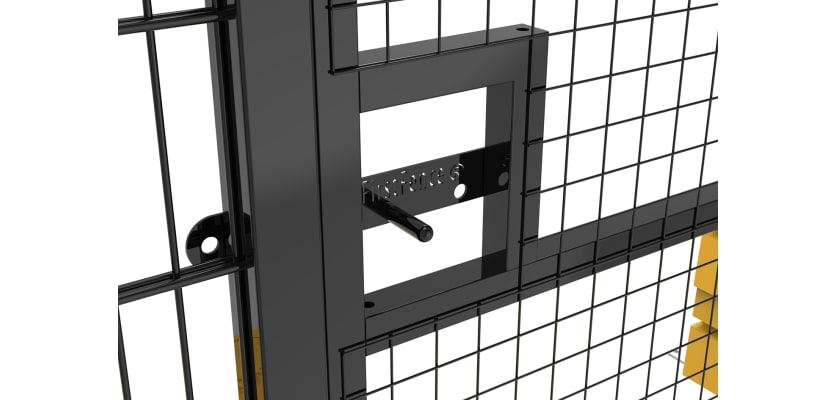

The gate comes complete with a welded mesh infill, offering anti-climb properties through tight spacing and strong weld points. It’s compatible with a variety of access control methods, from simple padlocks to keypad entry and electronic systems. This makes it an excellent choice for sites that need to balance high security with the convenience of controlled access.
This gate is widely used across multiple sectors, including construction, utilities, education, transport, and logistics. It’s also a popular choice for public sector projects where safety, access control, and durability are essential.
In addition to its structural benefits, the gate provides peace of mind. Whether managing a busy site with hundreds of workers or protecting sensitive installations, having a reliable pedestrian gate in place ensures smoother operations, better flow control, and improved overall security.
For clients who require permanent fencing systems with professional-grade performance, the 2.4m High x 1.2m Wide Single Leaf Gate Kit offers the ideal balance of function, form, and long-term value. It can be delivered quickly, installed efficiently, and trusted to perform for years to come with minimal maintenance.
If you need any guidance on our products, then please get in touch; the sales team will be happy to assist you. The team can be contacted by calling 01283 512111 or by using the online chat tool.
