HD.30 Above Ground Hydraulic Swing Gate Operator
Product Description

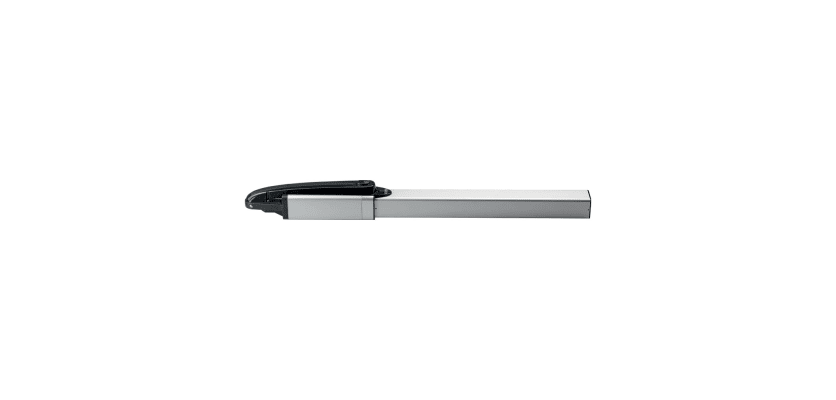

HD.30 Above Ground Hydraulic Swing Gate Operator
HD.30 Above Ground Hydraulic Swing Gate Operator is a reversible operator for gates up to 3.0m.
Reversible gate operators are designed to automate the opening and closing of gates, offering the flexibility to operate in both directions. The operators are typically used in residential, commercial and industrial settings where the gate needs to be opened and closed frequently, and where the ability to reverse the gate's movement direction is an advantage. This type of flexibility is useful in situations where there are space constraints.
The HD.30 Above Ground Hydraulic Swing Gate Operator is made from high-quality materials, will give reliable performance, and is relatively easy to install and maintain.
Features
The HD.30 is a hydraulic operator designed for gates up to 3.0 meters.

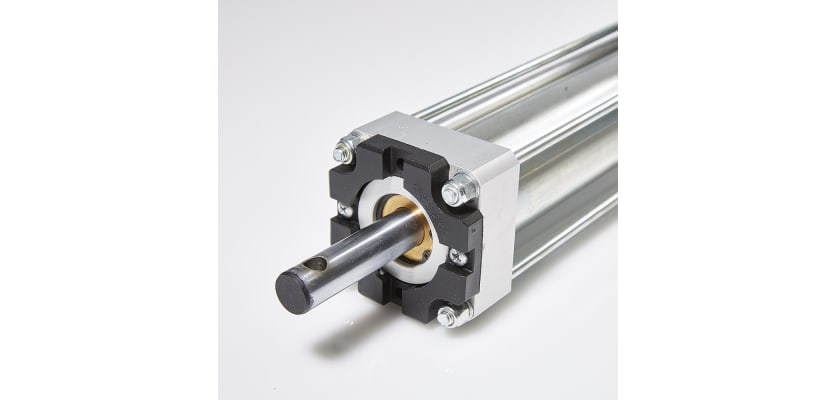

With chrome-plated steel shafts and anodised aluminium profiles, it offers maximum resistance to environmental conditions.
Brass bypass valves provide enhanced regulation and ensure optimal crush resistance.
The electric motor delivers exceptional performance, optimal thrust, and supports more intensive use.

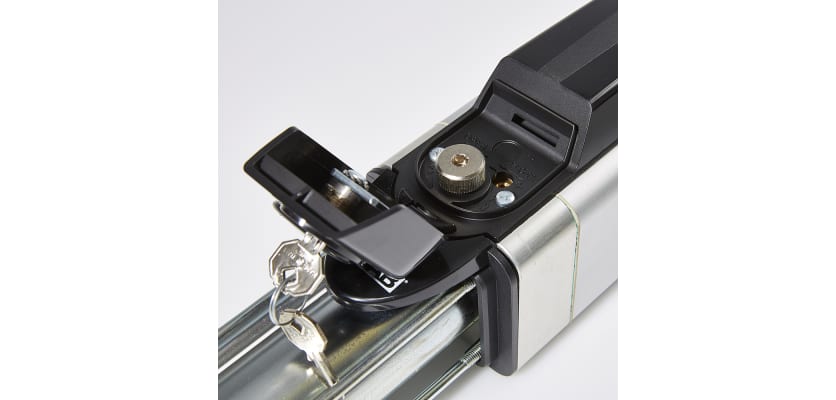

Features a personalised key-operated release and self-alignment.
The rear pivot joint simplifies installation, compensating for any misalignment with the gate.

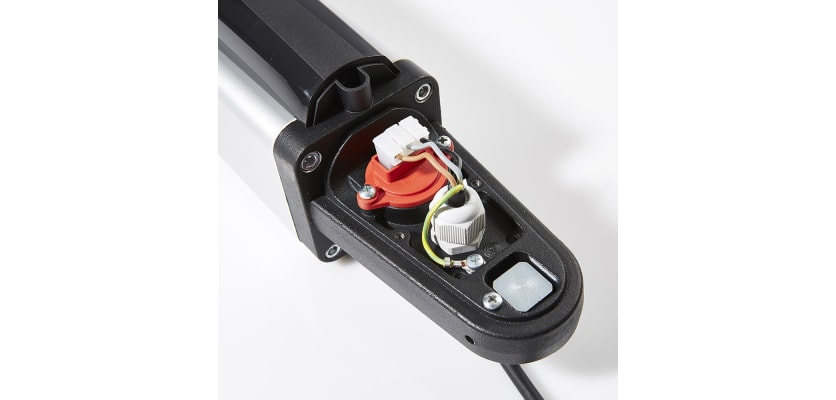

The terminal boards built into the oil cap make installation faster and easier. Also, it is easy to replace the power cable and control the oil level even when the operator is already installed.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1177mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.1 A |
| Maximum Thrust | 4000 N |
| Duty Cycle | 99% |
| Stroke Length | 270mm |
| Protection Level | IP55 |
| Encoder | No |
| Built In Physical Stops | No |
| Operating Temperature | -15°C/+50°C |
| Max Gate Width | 3.0m |
| Motor Type | Hydraulic |
| Gate Usage | Commercial |
| Fixing Bracket Type | Weld On |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
