HD.18AC Above Ground Hydraulic Swing Gate Operator
Product Description

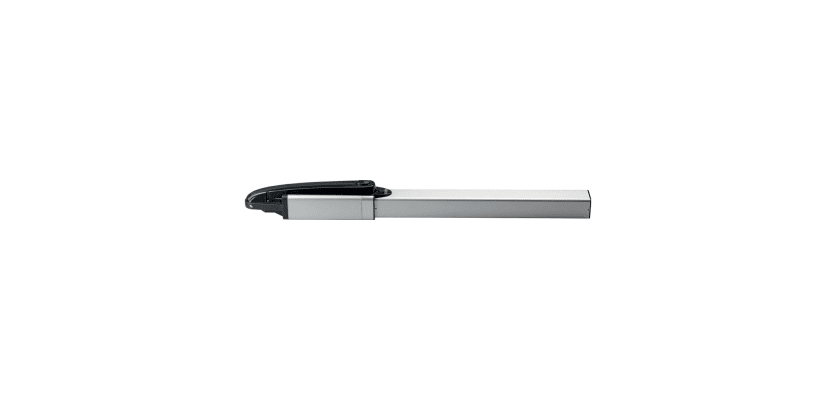

HD.18AC Above Ground Hydraulic Swing Gate Operator
The HD.18AC is an irreversible hydraulic operator for gates up to 1.8m for multi-flat residential use.
An irreversible gate operator provides maximum security and reliability by preventing unauthorised manual operation; once the gate is closed or opened, it cannot be manually manipulated. They are the preferred choice in applications where security is paramount, such as airports, industrial sites, or secure facilities. Their design ensures that they remain securely closed or open until operated by authorised personnel.
The HD.18AC Above Ground Hydraulic Swing Gate Operator is made from high-quality materials, will give reliable performance, and is relatively easy to install and maintain.
Features
Brass bypass valves provide enhanced regulation, ensuring maximum crush resistance.
The electric motor delivers outstanding performance, optimal thrust, and supports more intensive use.

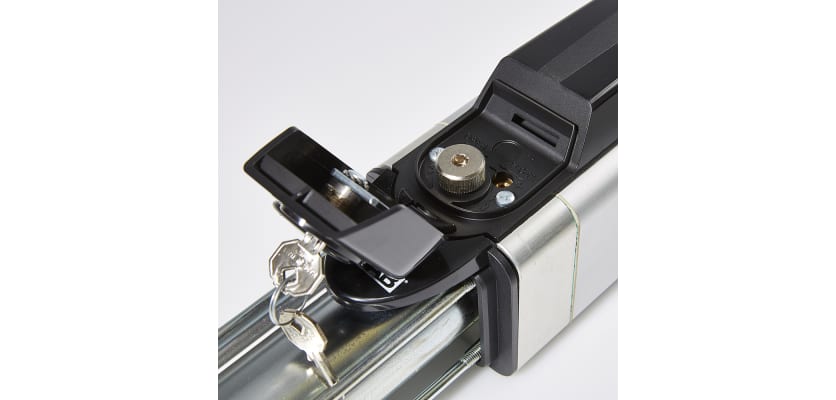

Features a personalised key-operated release and self-alignment.
The rear pivot joint simplifies installation, compensating for any misalignment of the gate.
It is made for easy installation and maintenance.

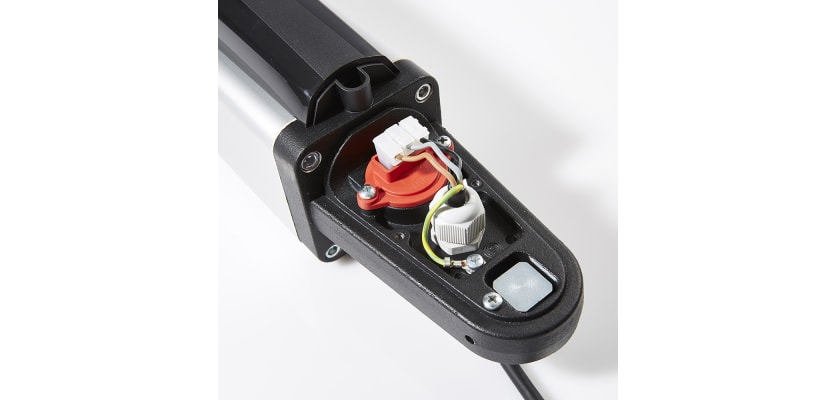

The terminal boards integrated into the oil cap facilitate quicker and simpler installation.
Additionally, replacing the power cable and checking the oil level is straightforward, even after the operator is installed.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as a huge range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1087mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.1 A |
| Maximum Thrust | 4000 N |
| Duty Cycle | 99% |
| Stroke Length | 250mm |
| Protection Level | IP55 |
| Encoder | No |
| Built In Physical Stops | No |
| Operating Temperature | -15°C/+50°C |
| Max Gate Width | 1.8m |
| Motor Type | Hydraulic |
| Gate Weight | 400kg |
| Gate Usage | Light Commercial |
| Fixing Bracket Type | Weld On |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Length | 1087mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.1 A |
| Maximum Thrust | 4000 N |
| Duty Cycle | 99% |
| Stroke Length | 250mm |
| Protection Level | IP55 |
| Encoder | No |
| Built In Physical Stops | No |
| Operating Temperature | -15°C/+50°C |
| Max Gate Width | 1.8m |
| Motor Type | Hydraulic |
| Gate Weight | 400kg |
| Gate Usage | Light Commercial |
| Fixing Bracket Type | Weld On |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
