FFL 95 Automated Vertical Bar Cantilever Gate 3.5m - 5.5m Wide
The FFL Series comes with a 2-year manufacturer warranty
Product Description

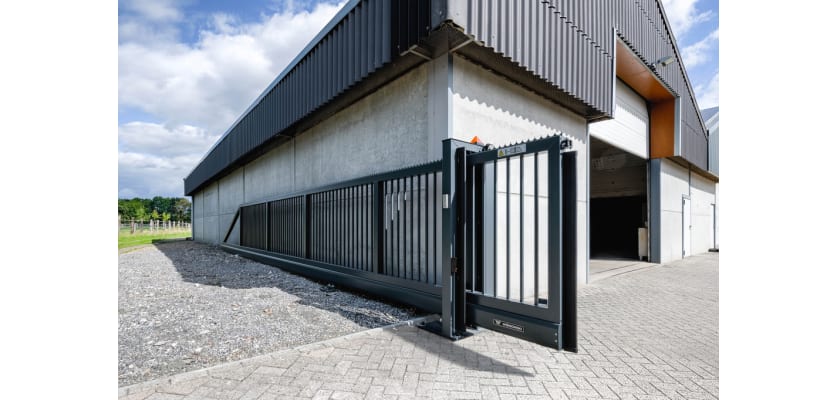

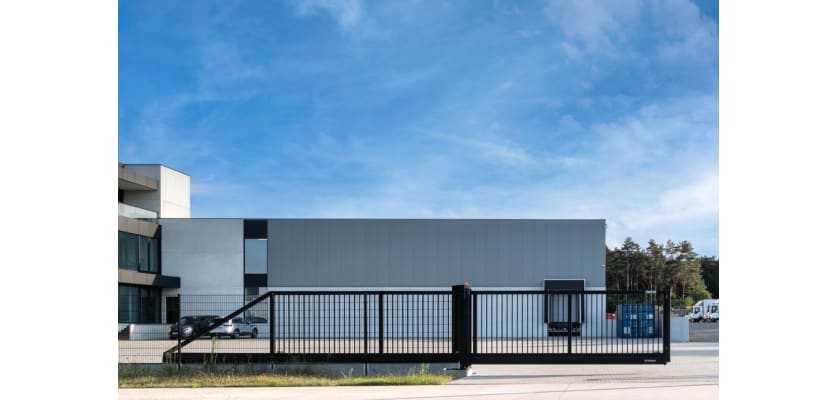

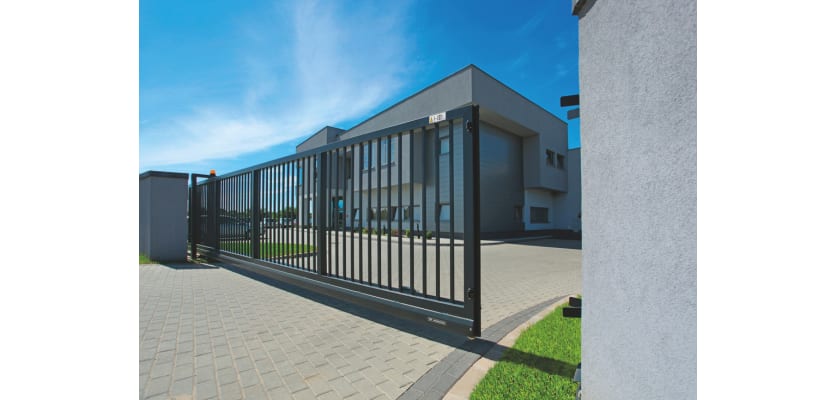

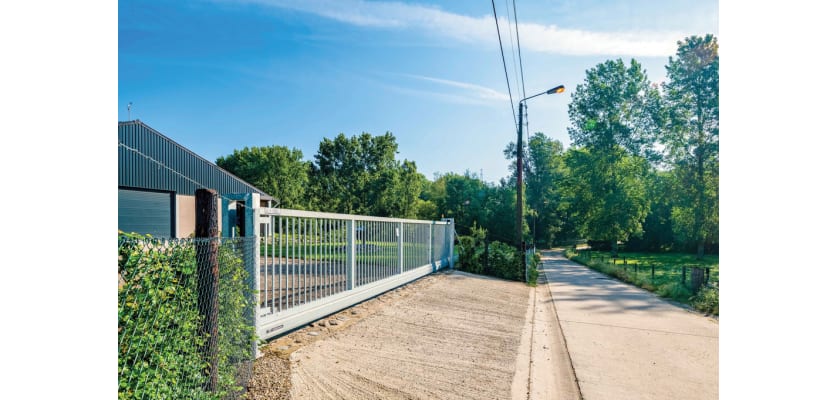

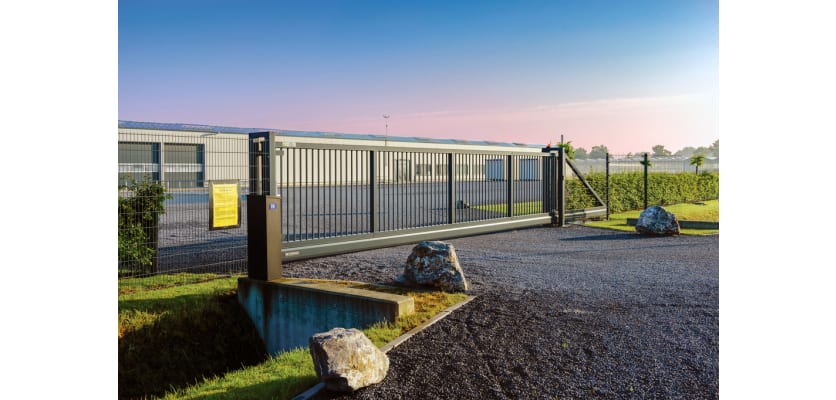

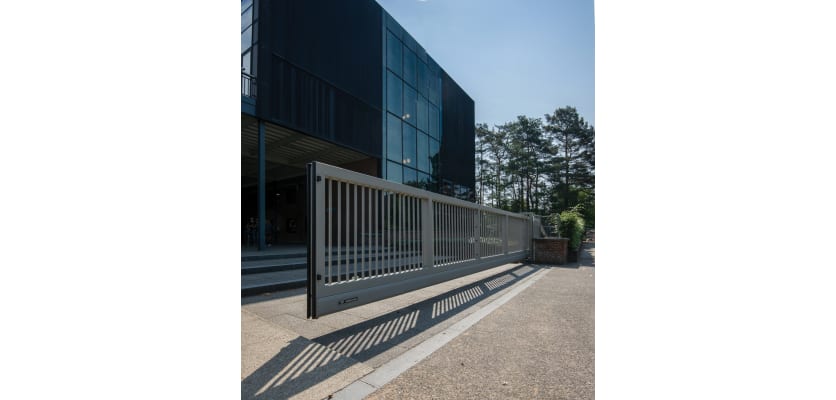

FFL 95 Automated Vertical Bar Cantilever Gate 3.5m - 5.5m Wide
Introducing First Fence's line of cantilever gates, a premium solution for secure and elegant access control. Designed with a commitment to quality and innovation, these gates offer reliability and convenience for commercial premises.
The cantilever system ensures smooth sliding without ground tracks, and this type of gate is ideal for properties with limited space as it does not require additional room for opening and closing.
As standard, these gates are fitted with a heavy duty, 230V motor to offer 100% duty cycle no matter how often the gate is used. With an in built cooling fan and an oil bath to ensure zero overheating and loss of performance.

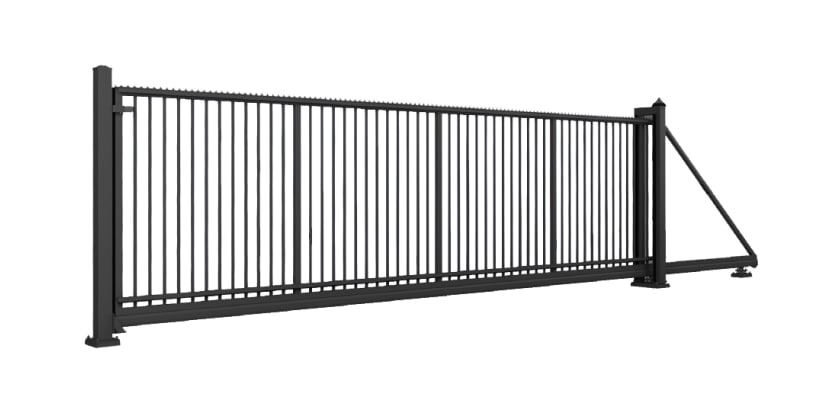

The FFL 95 Automated Cantilever Gates from First Fence are constructed with a vertical 25mm round bar infill, providing a sleek and modern appearance while maintaining high security levels. The infill is welded to the frame.
It is available in a choice of width and height, and in a large selection of standard RAL colours. If you don't see the colour you require, or if you would like a galvanised-only product, then please get in touch to discuss your requirements. Please note that there is an additional charge for custom colours.
These gates are also available as the FFL 130 (6.0 - 7.5m wide) and the FFL 200 (8.0 - 12m wide) and as a manual version.
The FFL Series of manual and automated cantilever gates comes with a 2-year manufacturer warranty.
Features and Benefits
- Manufactured using high-grade steel for superior strength and longevity
- 230v sliding gate motor - offering 100% duty cycle.
- Opening speed up to 9m/min
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with advanced locking mechanisms to provide maximum security
- Safety sensors detect obstructions and halt operation to prevent accidents
- Available in a range of colours to match any fencing system
- Enhanced security: protects your property with robust, tamper-proof construction and reliable locking mechanisms
- The cantilever mechanism reduces ground contact, minimising maintenance and ensuring long-term performance
- Automated operation and smart technology integrations make access control user-friendly
- 2-year manufacturer warranty.
A selection of additional options is available to add to your gate order, including anti-climb spikes (these are available only on gates over 1.8m high), run back support rollers and reflective strips. First Fence offers an extensive line of related products to enhance your gate purchase including loop detectors, intercoms, press to exit buttons and laser scanners.
The FFL 95 automated gate comes with a two-year manufacturer warranty and comes as 'plug and play.'
When making your gate selection you need to factor in the recommended run back space required for the gates to open into and the overall space required:
FFL 95 GATE WIDTH | RECOMMENDED RUN BACK SPACE | OVERALL SPACE REQUIRED |
|---|---|---|
3500mm | 5200mm | 8700mm |
4000mm | 5900mm | 9900mm |
4500mm | 6600mm | 11100mm |
5000mm | 7100mm | 12100mm |
5500mm | 7800mm | 13300mm |
Get in touch
If you need additional information or assistance in selecting the right product, then please get in touch and one of our sales team will be happy to guide you through your purchase. The team can be contacted by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Width | 3.5, 4.0, 4.5, 5.0 or 5.5m [5.5m is not available as 2.2m Height] |
| Height | 1.0, 1.2, 1.5, 1.8, 2.0 or 2.2m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel |
| Duty Cycle | 100% Duty Cycle for Intensive Use |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 60 x 60mm |
| Infill Type | 25mm Vertical Bar |
| Manufacturer Warranty | 2-Years |
| Standards | Automated Gate Safety to BS EN 12453 |
What's Included
| Name | Quantity |
|---|---|
| Gear Rack [Fitted] | 1 |
| Cantilever Carriages | 1 |
| Bolt Down End Catcher Post | 1 |
| Motor Cabinet & Rear Support Post | 1 |
| Top Support Roller System | 1 |
| Heavy Duty Sliding Gate Motor With Built-In Control Panel | 1 |
| Flashing Light | 1 |
| Dual Height Photocells | 1 |
| Key-Operated Switch With Emergency Stop Button | 1 |
| Category 3 Safety Edges | 6 |
| Remote Control Transmitters/Fobs | 2 |
| Gate Mounted Safety Edge Transmission System | 1 |
| External RF Aerial | 1 |
