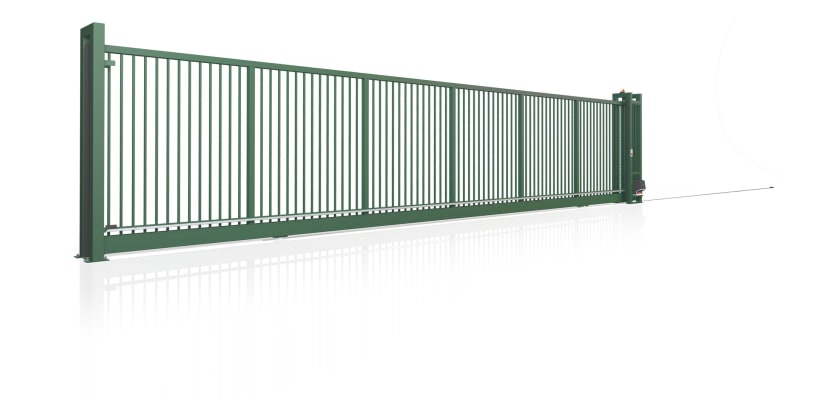

FFL 200T Automated Vertical Bar Tracked Sliding Gate 8.0m - 12.0m Wide
12m Wide Automated with Vertical Bar Infill
Product Description
FFL 200T Automated Vertical Bar Tracked Sliding Gate 8.0m - 12.0m Wide
The FFL 200T Automated Vertical Bar Tracked Sliding Gate is a heavy-duty access solution designed for secure and reliable vehicle entry. Suitable for residential, commercial and industrial properties, the tracked design is ideal for sites where there is limited run-back space for a cantilever gate or where wider or taller openings are required.
The gate operates along a ground-level track, sliding parallel to the boundary rather than swinging open. The track must be installed on level ground and kept clear of dirt and obstructions to ensure smooth operation.
The FFL 200T features a vertical 25mm round bar infill, providing a sleek, modern appearance while maintaining high security. The infill is welded to the gate frame for increased strength and durability.
Fitted with a 230V heavy-duty motor, the gate provides a 100% duty cycle and opening speeds of up to 9m/min, making it suitable for frequent use. An integrated cooling fan and oil bath help prevent overheating and maintain reliable performance.
Available in a range of widths and heights, the FFL 200T can be finished in a selection of standard RAL colours. Custom colours and galvanised-only finishes are also available on request, with additional charges applying to bespoke colours.
The FFL 200T is also available as the FFL 120T (3.0m - 7.5m wide) and as a manual version.
All FFL Series manual and automated tracked sliding gates come with a 2-year manufacturer's warranty. The automated version complies with the Automated Gate Safety BS EN 12453 standard.
Features & Benefits
- Heavy-duty steel construction for strength and durability
- 230V motor with a 100% duty cycle
- Opening speed of up to 9m/min
- 25mm round bar vertical infill for a modern appearance and high security
- Infill is welded to the frame for added strength
- Ground-track system provides smooth and reliable operation
- Ideal for sites with limited cantilever run-back space
- Protective finish helps prevent rust and withstand harsh weather
- Safety sensors detect obstructions and stop the gate
- Manual emergency override in case of power failure
- Advanced locking system for enhanced security
- Available in a range of RAL colours
- Compatible with access control and smart technology
Common Applications
The FFL 200T is suitable for a wide range of properties, including:
- Residential: Secure driveways and entrances where run-back space is limited
- Commercial: Business premises, car parks and storage facilities
- Industrial: Warehouses, factories and large sites
- Public Facilities: Schools, hospitals and other controlled-access locations
Optional Extras
Enhance your gate with a range of additional options, including:
- Anti-climb spikes (available on gates over 1.8m high)
- Reflective strips
- Loop detectors
- Loop cable
- Intercoms
- Press-to-exit buttons
- Control panels
- Important Installation Information
The ground track must be installed on level ground to ensure smooth gate operation. The track should also be kept clean and free from debris or other obstructions.
Contact Us
Not sure whether a tracked or cantilever gate is right for your site? Our sales team can help you find the right solution. Call 01283 512111, email sales@firstfence.co.uk, or speak to us using our online chat.
Specifications & Downloads
| Width | 8.0, 8.5, 9.0, 9.5, 10.0, 11.0 or 12.0m [11.0m and 12.0m are not available as 1.2 and 2.1m Height] |
| Height | 1.2, 1.5, 1.8, 2.0 or 2.1m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 80 x 80mm |
| Infill Type | 25mm Round Tube |
| Manufacturer Warranty | 2-Years |
| Standards | Automated Gate Safety to BS EN 12453 |
| Duty Cycle | 100% Duty Cycle |
What's Included
| Name | Quantity |
|---|---|
| Gear Rack [Fitted] | 1 |
| 20mm O Groove Wheels [Fitted] | 2 |
| Bolt Down Support Posts with Motor Mounting Base | 1 |
| Top Support Roller System | 1 |
| Heavy Duty Sliding Gate Motor With Built-In Control Panel | 1 |
| Flashing Light | 1 |
| Dual Height Photocells | 1 |
| Key-Operated Switch With Emergency Stop Button | 1 |
| Category 3 Safety Edges | 6 |
| Remote Control Transmitters/Fobs | 2 |
| Gate Mounted Safety Edge Transmission System | 1 |
| External RF Aerial | 1 |
| Concrete In Ground Track | 1 |
| Bolt Down End Catcher Posts | 1 |
| Gate Leaf | 1 |
| Ground Anchor Bolts | 8 |
