FFL 200 Manual Palisade Cantilever Gate 8.5m - 12.0m Wide
FFL 200 With Triple Point Palisade Infill - Black
Product Description

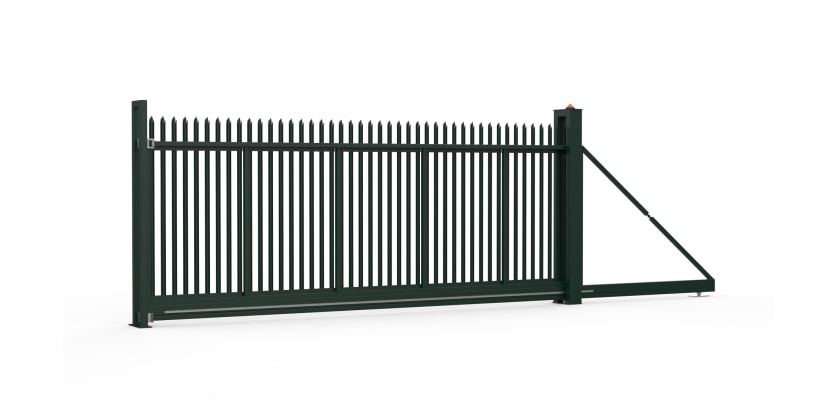

FFL 200 Manual Palisade Cantilever Gate 8.5m - 12.0m Wide
Introducing First Fence's collection of cantilever gates, a premium option for secure and stylish access control. Designed with a commitment to quality and innovation, these gates offer reliable and convenient access for residential and commercial properties alike.
The cantilever design ensures smooth sliding without ground tracks, making these gates perfect for properties with limited space, as they require no extra room to open or close.

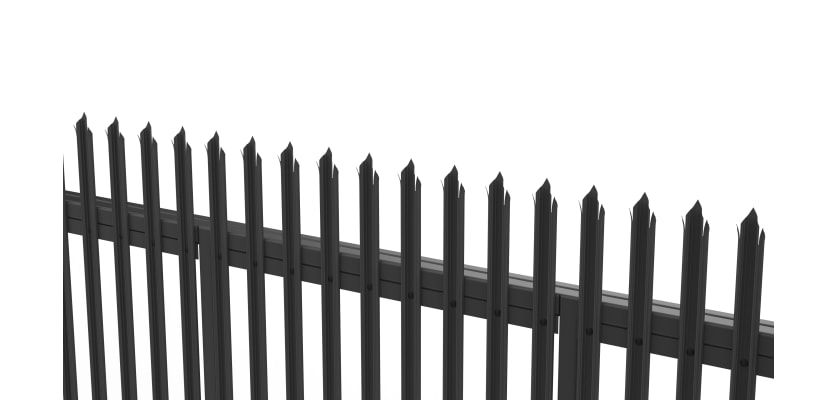

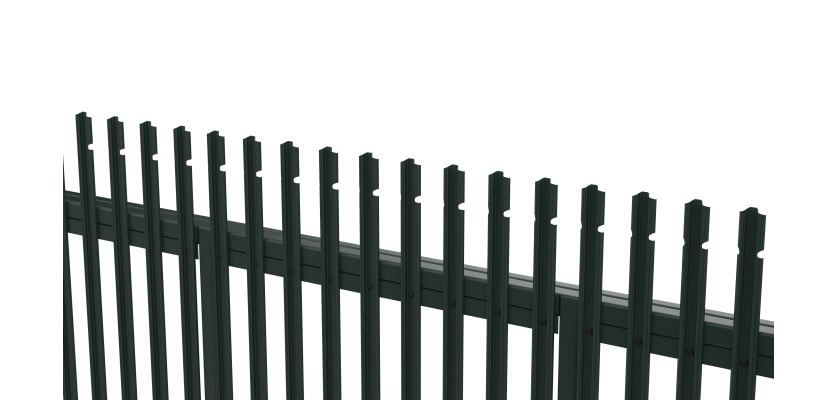

First Fence's FFL 200 Manual Cantilever Gates feature several infill options: Triple Pointed Pales, Round & Notched Pales or Single Point Pales, the palisade pales are supplied loose to be fitted on site by the installer.
The FFL 200 Manual Cantilever Gate comes in various widths and heights and is available in a wide range of standard RAL colours. If you require a colour not listed or prefer a galvanised-only finish, please reach out to us to discuss your needs. Please note that custom colours will involve an additional charge.
These gates are also available as the FFL 130 (6.0 - 7.5m wide) and the FFL 95 (3.5 - 5.5m wide), and as an automated version. This gate line is also available with a vertical bar or 868 Twin Mesh infill.
The FFL series of manual and automated cantilever gates comes with a 2-year manufacturer warranty.
Features and Benefits
- Manufactured using high-grade steel for superior strength and longevity
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with advanced locking mechanisms to provide maximum security
- Available in a range of colours to match any fencing system
- Enhanced security: protects your property with robust, tamper-proof construction and reliable locking mechanisms
- The cantilever mechanism reduces ground contact, minimising maintenance and ensuring long-term performance
A selection of additional options is available to add to your gate order, including run back support rollers and reflective strips.
When making your gate selection you need to factor in the recommended run back space required for the gates to open into and the overall space required:
FFL 200 GATES | RECOMMENDED RUN BACK SPACE | OVERALL SPACE REQUIRED |
|---|---|---|
8.5m (x1.8m and 2.0m) | 10600mm | 18600mm |
8.5m (x2.1m and 2.4m) | 11100mm | 19600mm |
9.0m | 11100mm | 19600mm |
9.5m | 11900mm | 20900mm |
10.0m (x1.8m and 2.0m) | 11900mm | 20900mm |
10.0m (x2.1m and 2.4m) | 12400mm | 21900mm |
11.0m (all heights) | 12400mm | 21900mm |
12.0m (all heights) | 13000mm | 23000mm |
Get in touch
If you need additional information or assistance in selecting the right product, then please get in touch and one of our sales team will be happy to guide you through your purchase. The team can be contacted by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Width | 8.5m, 9.0m, 9.5m, 10.0m, 11.0m or 12.0m |
| Height | 1.8m, 2.0m, 2.1m or 2.4m |
| Size | Other Sizes Available - Call To Discuss |
| Lead Time | Starts From Drawings Sign Off |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 100 x 100mm [8.5m, 9.0m, 10.0m and 11.0m], 120 x 120mm [12.0m] |
| Infill Type | Triple Pointed Pales, Round & Notched Pales or Single Point Pales |
| Manufacturer Warranty | 2-Years |
| Standards | Manual Gate Safety to BS EN 12604 |
What's Included
| Name | Quantity |
|---|---|
| Palisade Gate Leaf | 1 |
| Cantilever Carriages | 2 |
| Bolt Down End Catcher Post | 1 |
| Top Support Roller System | 1 |
