SKU: WEB-08443

FFL 130 Manual Palisade Cantilever Gate 5.5m - 8.0m Wide

£5,000.00
EACH
£6,000.00 incl VAT
In Stock
Or three monthly payments of £2060.00 with
Available to UK Limited businesses only
Images shown are for illustration purposes only and may differ slightly
Trade Installer Banner
Gate Height
Gate Width
Pale Type
Choose Finish
Opening Direction
From the outside looking in, which way does your gate open?
£0.00 EA
Exact delivery cost added during basket checkout
£0.00 incl VAT

Product Description

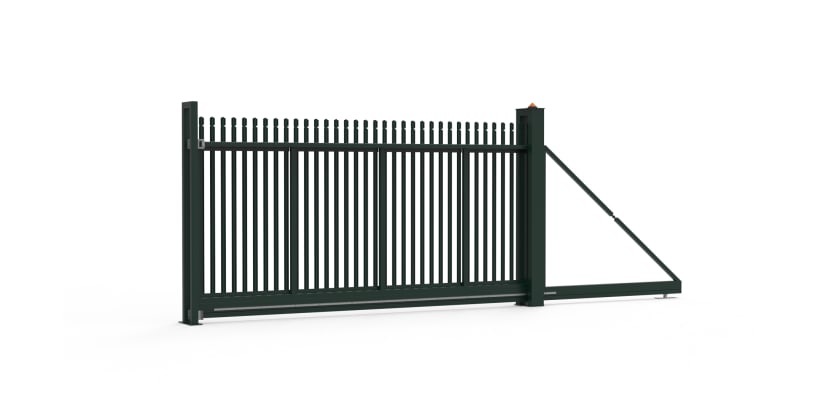

FFL 130 Manual Palisade Cantilever Gate 5.5m - 8.0m Wide

Introducing First Fence's range of cantilever gates, a high-end choice for secure and stylish access control. Crafted with a dedication to quality and innovation, these gates provide reliable and convenient access for both residential and commercial properties.

The cantilever system provides smooth sliding without ground tracks, making these gates ideal for properties with limited space since they do not need extra room for opening and closing.

First Fence's FFL 130 Manual Palisade Cantilever Gates feature a range of heights starting at 1.8m high up to 2.4m high. Select from a range of widths to get the perfect fit for your location.

If you require a specific colour not listed or prefer a galvanised-only finish, please reach out to us to discuss your needs. Be aware that custom colours will incur an additional charge.

These gates are also available as the FFL 95 (3.5 - 5.0m wide) and the FFL 200 (8.5 - 12.0m wide), and as an automated version. This gate line is also available with a vertical bar or 868 Twin Mesh infill.

The FFL series of manual and automated cantilever gates comes with a 2-year manufacturer warranty.

Features and Benefits

  • Manufactured using high-grade steel for superior strength and longevity
  • Finished with a protective coating to withstand harsh weather conditions and prevent rust
  • Equipped with advanced locking mechanisms to provide maximum security
  • Available in a range of colours to match any fencing system
  • Enhanced security: protects your property with robust, tamper-proof construction and reliable locking mechanisms
  • The cantilever mechanism reduces ground contact, minimising maintenance and ensuring long-term performance

A selection of additional options is available to add to your gate order, run back support rollers and reflective strips.

When making your gate selection you need to factor in the recommended run back space required for the gates to open into and the overall space required.

FFL 130 GATE

RECOMMENDED RUN BACK SPACE

OVERALL SPACE REQUIRED

5.5m (x1.8m and 2.0m)

6600mm

11100mm

5.5m (x2.1m and 2.4m)

7100mm

12100mm

6.0m (all heights)

8100mm

14100mm

6.5m (x1.8m, 2.0m and 2.1m)

8100mm

14100mm

6.5m x 2.4m

8800mm

15300mm

7.0m (all heights)

8800mm

15300mm

7.5m (x1.8m and 2.0m)

8800mm

15300mm

7.5m (x2.1m and 2.4m)

9500mm

16500mm

8.0m (all heights)

10600mm

18600mm

Get in touch

If you need additional information or assistance in selecting the right product, then please get in touch and one of our sales team will be happy to guide you through your purchase. The team can be contacted by calling 01283 512111 or by using the online chat tool.

Specifications & Downloads

Width5.5m, 6.0m, 6.5m, 7.0m, 7.5m or 8.0m
Height1.8m, 2.0m, 2.1m, 2.4m
SizeOther Sizes Available - Call To Discuss
Lead TimeStarts From Drawings Sign Off
MaterialGalvanised Steel
FinishPolyester Powder Coated
Box Section of Main Gate Frame80 x 80mm

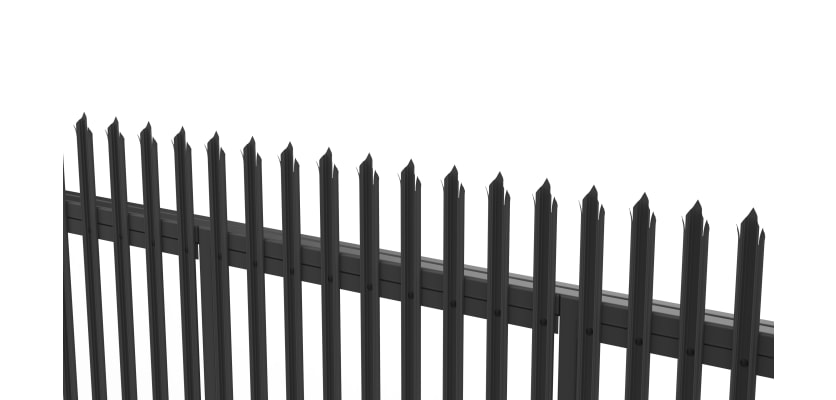

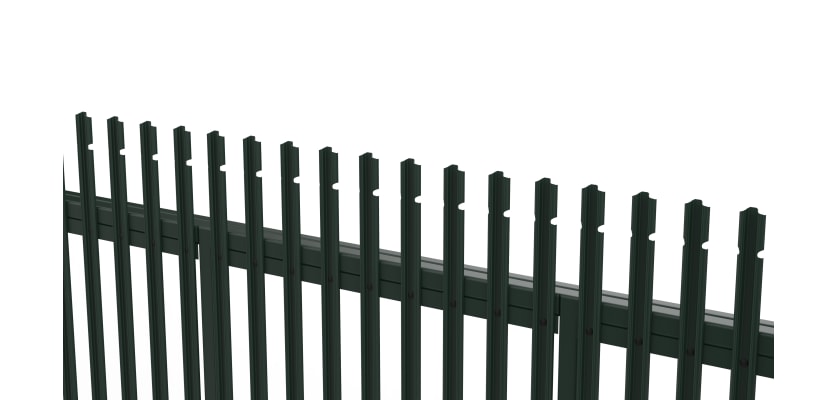

Infill TypeTriple Pointed Pales, Round & Notched Pales or Single Point Pales
Manufacturer Warranty2-Years
StandardsManual Gate Safety to BS EN 12604

What's Included

NameQuantity
Palisade Gate Leaf1
Cantilever Carriages2
Bolt Down End Catcher Post1
Top Support Roller System1

Specifications & Downloads

Width5.5m, 6.0m, 6.5m, 7.0m, 7.5m or 8.0m
Height1.8m, 2.0m, 2.1m, 2.4m
SizeOther Sizes Available - Call To Discuss
Lead TimeStarts From Drawings Sign Off
MaterialGalvanised Steel
FinishPolyester Powder Coated
Box Section of Main Gate Frame80 x 80mm
Infill TypeTriple Pointed Pales, Round & Notched Pales or Single Point Pales
Manufacturer Warranty2-Years
StandardsManual Gate Safety to BS EN 12604

What's Included

NameQuantity
Palisade Gate Leaf1
Cantilever Carriages2
Bolt Down End Catcher Post1
Top Support Roller System1

Product Description

FFL 130 Manual Palisade Cantilever Gate 5.5m - 8.0m Wide

Introducing First Fence's range of cantilever gates, a high-end choice for secure and stylish access control. Crafted with a dedication to quality and innovation, these gates provide reliable and convenient access for both residential and commercial properties.

The cantilever system provides smooth sliding without ground tracks, making these gates ideal for properties with limited space since they do not need extra room for opening and closing.

First Fence's FFL 130 Manual Palisade Cantilever Gates feature a range of heights starting at 1.8m high up to 2.4m high. Select from a range of widths to get the perfect fit for your location.

If you require a specific colour not listed or prefer a galvanised-only finish, please reach out to us to discuss your needs. Be aware that custom colours will incur an additional charge.

These gates are also available as the FFL 95 (3.5 - 5.0m wide) and the FFL 200 (8.5 - 12.0m wide), and as an automated version. This gate line is also available with a vertical bar or 868 Twin Mesh infill.

The FFL series of manual and automated cantilever gates comes with a 2-year manufacturer warranty.

Features and Benefits

  • Manufactured using high-grade steel for superior strength and longevity
  • Finished with a protective coating to withstand harsh weather conditions and prevent rust
  • Equipped with advanced locking mechanisms to provide maximum security
  • Available in a range of colours to match any fencing system
  • Enhanced security: protects your property with robust, tamper-proof construction and reliable locking mechanisms
  • The cantilever mechanism reduces ground contact, minimising maintenance and ensuring long-term performance

A selection of additional options is available to add to your gate order, run back support rollers and reflective strips.

When making your gate selection you need to factor in the recommended run back space required for the gates to open into and the overall space required.

FFL 130 GATE

RECOMMENDED RUN BACK SPACE

OVERALL SPACE REQUIRED

5.5m (x1.8m and 2.0m)

6600mm

11100mm

5.5m (x2.1m and 2.4m)

7100mm

12100mm

6.0m (all heights)

8100mm

14100mm

6.5m (x1.8m, 2.0m and 2.1m)

8100mm

14100mm

6.5m x 2.4m

8800mm

15300mm

7.0m (all heights)

8800mm

15300mm

7.5m (x1.8m and 2.0m)

8800mm

15300mm

7.5m (x2.1m and 2.4m)

9500mm

16500mm

8.0m (all heights)

10600mm

18600mm

Get in touch

If you need additional information or assistance in selecting the right product, then please get in touch and one of our sales team will be happy to guide you through your purchase. The team can be contacted by calling 01283 512111 or by using the online chat tool.
