FFL 120T Automated Palisade Tracked Sliding Gate 3.0m - 7.5m Wide

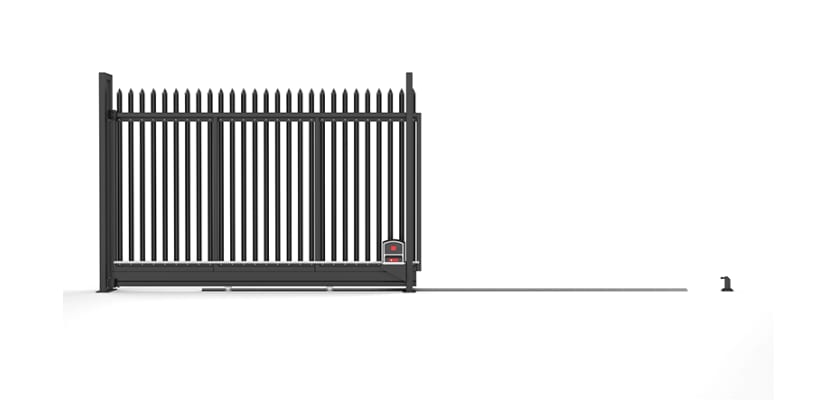

Black Option With Triple Point Infill
Product Description

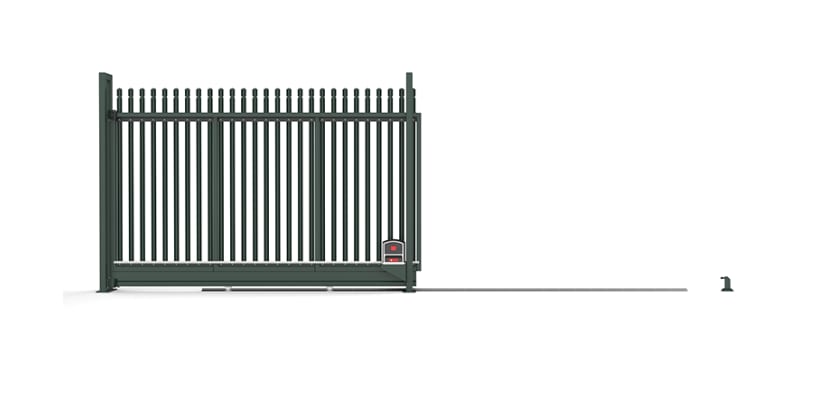

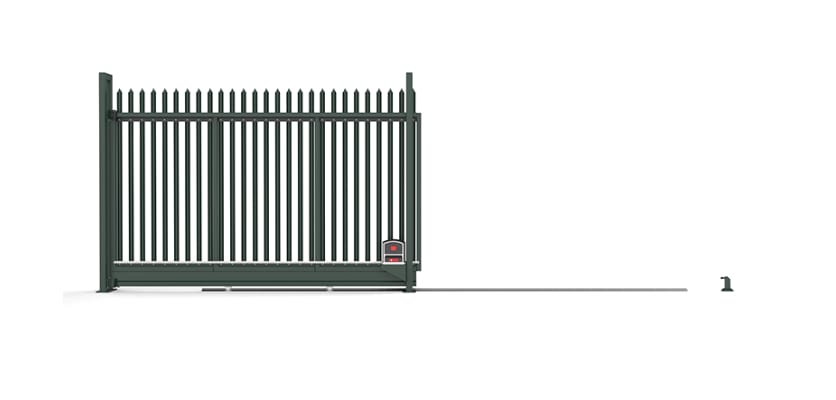

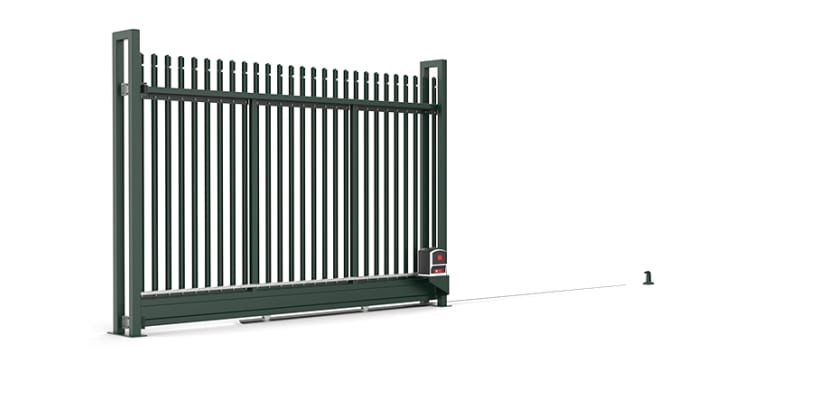

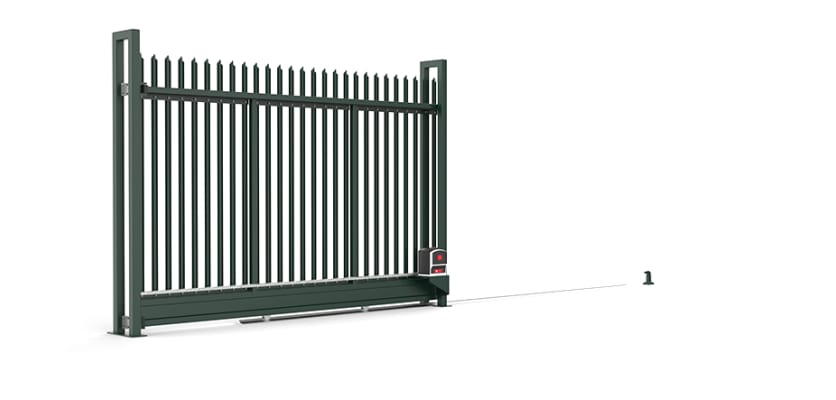

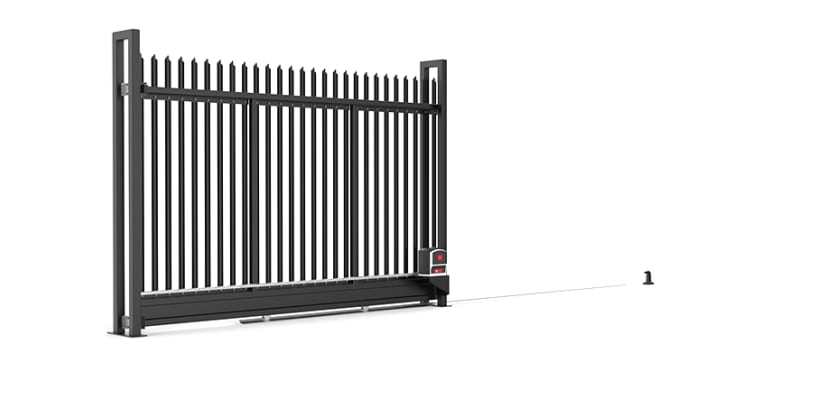

FFL 120T Automated Palisade Tracked Sliding Gate 3.0m - 7.5m Wide
The FFL 120T Automated Palisade Tracked Sliding Gate provides secure, reliable and convenient automatic access for residential, commercial and industrial properties. Ideal where space is limited behind the gate, or where wider openings and greater heights are required.
Operating along a level ground track, the gate slides parallel to the boundary fence, saving space compared to swing gates. The heavy-duty 230V motor provides a 100% duty cycle, with an integrated cooling fan and oil bath to prevent overheating and maintain performance.
FFL 120T Automated Palisade Tracked Sliding Gate
The FFL 120T combines robust steel construction with reliable automation for long-lasting security and access control. It is available with a choice of Triple Pointed Pales, Round & Notched Pales, or Single Point Pales, supplied loose for installation on site.
Available in a range of sizes and standard RAL colours, with custom colours and galvanised-only finishes available on request. Additional charges may apply.
The FFL series is also available as the FFL 200T, covering 8.0m–12.0m widths, or as a manual tracked sliding gate.
Please note: The ground track must be installed on level ground and kept clear to ensure smooth operation.
The FFL series comes with a 2-year manufacturer's warranty, while the automated gates comply with BS EN 12453 Automated Gate Safety standards.
Key Features
- 3.0m–7.5m wide options available
- Heavy-duty 230V motor with 100% duty cycle
- Opening speed of up to 9m/min
- Slides parallel to the fence line to maximise space
- Remote control, keypad, smartphone app and sensor compatibility
- Obstacle detection for enhanced safety
- Emergency manual override in the event of power loss
- Durable steel construction for long-term performance
- Protective coating available in a range of colours
- Advanced locking mechanisms for increased security
Common Applications
- Residential: Secure driveways and properties where space is limited.
- Commercial: Control access to business premises, car parks and storage areas.
- Industrial: Secure large sites, facilities and complexes.
- Public facilities: Manage access at schools, hospitals and other institutions.
Accessories & Additional Products
Enhance your automated gate system with loop detectors, intercoms, press-to-exit buttons and laser scanners.
First Fence also offers a range of automated and manual cantilever gates, which operate without a ground track.
Contact Us
For help choosing the right gate or accessories, contact our sales team on 01283 512111 or via online chat.
Specifications & Downloads
| Width | 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0 or 7.5m |
| Height | 1.8, 2.0, 2.1 or 2.4m |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| Box Section of Main Gate Frame | 60 x 60mm |
| Infill Type | Triple Pointed Pales, Round & Notched Pales or Single Point Pales |
| Manufacturer Warranty | 2-Years |
| Standards | Automated Gate Safety to BS EN 12453 |
| Duty Cycle | 100% Duty Cycle |
| Lead Time | Starts From Drawings Sign Off |
What's Included
| Name | Quantity |
|---|---|
| Gear Rack [Fitted] | 1 |
| 20mm O Groove Wheels [Fitted] | 2 |
| Bolt Down Support Posts with Motor Mounting Base | 1 |
| Top Support Roller System | 1 |
| Heavy Duty Sliding Gate Motor With Built-In Control Panel | 1 |
| Flashing Light | 1 |
| Dual Height Photocells | 1 |
| Key-Operated Switch With Emergency Stop Button | 1 |
| Category 3 Safety Edges | 6 |
| Remote Control Transmitters/Fobs | 2 |
| Gate Mounted Safety Edge Transmission System | 1 |
| External RF Aerial | 1 |
| Concrete In Ground Track | 1 |
| Bolt Down End Catcher Posts | 1 |
| Gate Leaf | 1 |
| Ground Anchor Bolts | 8 |
