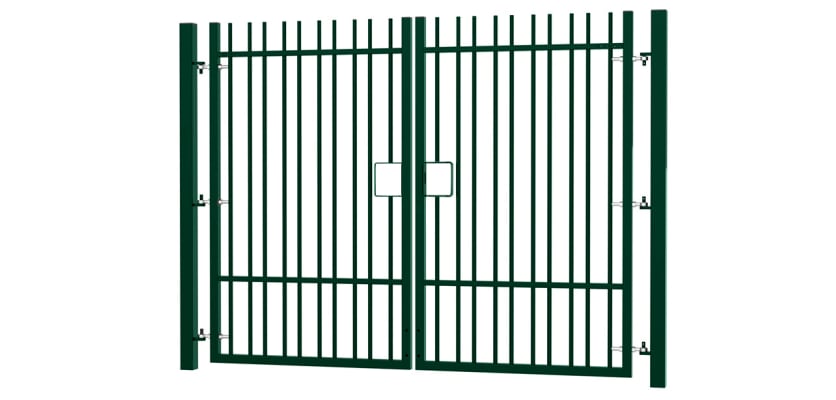

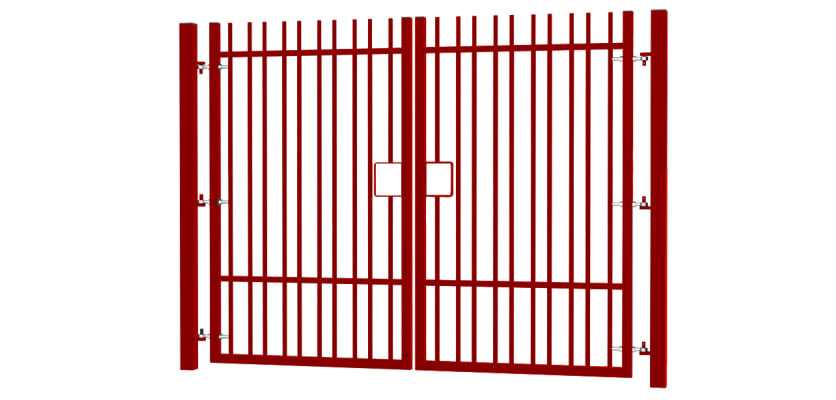

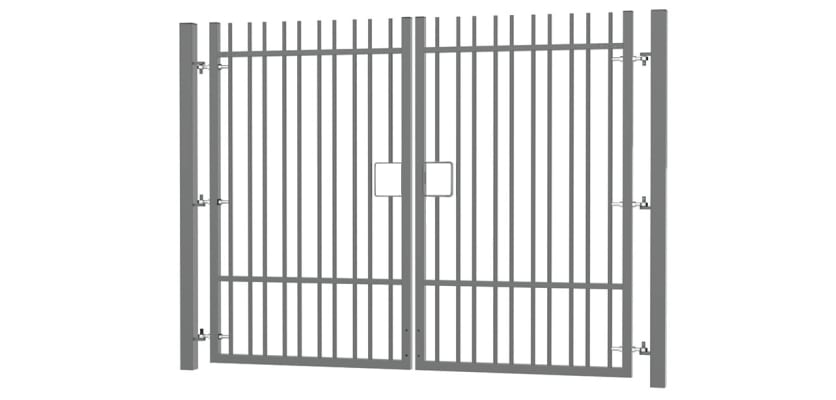

2.4m High x 3.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Product Description
2.4m High x 3.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Discover the EnviroRail® Vertical Bar gates, now part of the expansive First Fence collection. With varying widths, heights, and an array of RAL colours, these gates seamlessly adapt to diverse ground substances and terrains. Choose between dig-in and bolt-down formats to suit your preferences. Prioritise assessing your site's ground type before purchasing to ensure the correct post format. For guidance, connect with our sales team at 01283 512111, and they'll gladly assist you.
Key Features and Benefits
Explore the versatility of the EnviroRail® Vertical Bar Double Leaf Gate Kit, measuring 2.4m high x 3.0m wide. The double leaf format offers superior flexibility, allowing you to opt for open or closed positions for one or both leaves, granting complete control over property access. This gate's taller specification enhances security, making it challenging for intruders to scale. With a medium width, it's ideal for mid-sized gates or driveway openings.
Embracing an eco-conscious approach, these gate kits minimise welding reliance by incorporating custom-made, laser-cut components. The resulting strong bonds during assembly ensure durability. Their modular and lightweight design simplifies installation, featuring pre-drilled holes for adjustable hinges and a drop bolt. Strict adherence to BS 12604 safety standards guarantees maximum stability. Even in hinge failure, these gates remain upright, reducing the risk of injury or damage. The modular functionality allows for adjustments, unlike fixed hardware. Additionally, fully welded gate hooks with fixed-axis hinges eliminate vertical movement.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
Available in various heights and widths, the gate kits come in both dig-in and bolt-down versions. The dig-in variant suits softer terrain, requiring Post Mix for secure installation. The bolt-down option is ideal for harder ground surfaces, secured with four M16 x 125mm anchor bolts per post.
Compatible with our security locks, available now to add to your order, this gate kit allows up to 30mm of adjustment from the catch post when correctly installed, with gates having a 50mm ground clearance. Consider an optional separate locking drop bolt for added security with the double leaf gate. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.
In addition to the gate kit, First Fence offers EnviroRail® Railings, Estate Railings, and Gates to enhance security. Consider including a heavy-duty padlock for an extra layer of protection.
Contact Us
The First Fence sales team is ready to assist. For product queries or guidance on choosing the best products for your project, call us at 01283 512111 or use the online chat tool.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50X50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50X50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
