2.0m High x 6.0m Wide EnviroRail® Play Sec Railing Double Leaf Gate Kit
Product Description

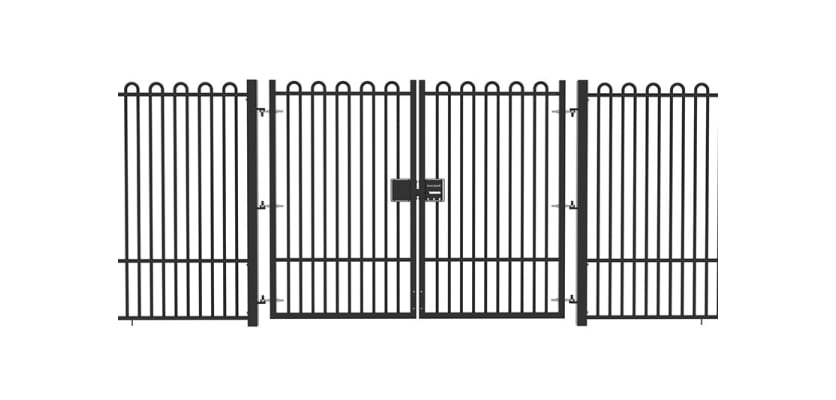

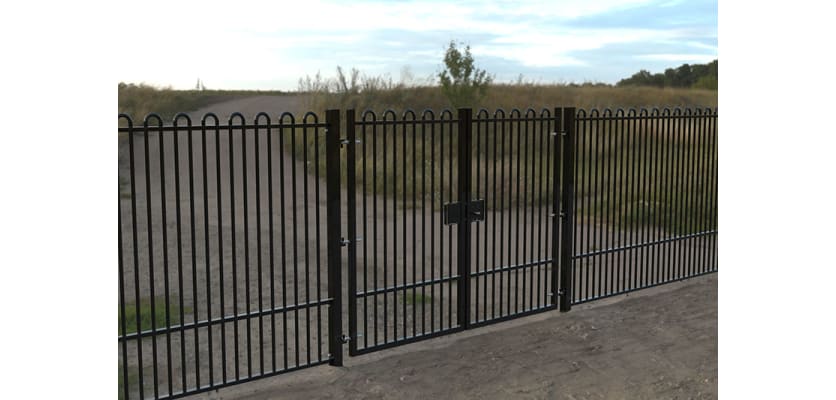

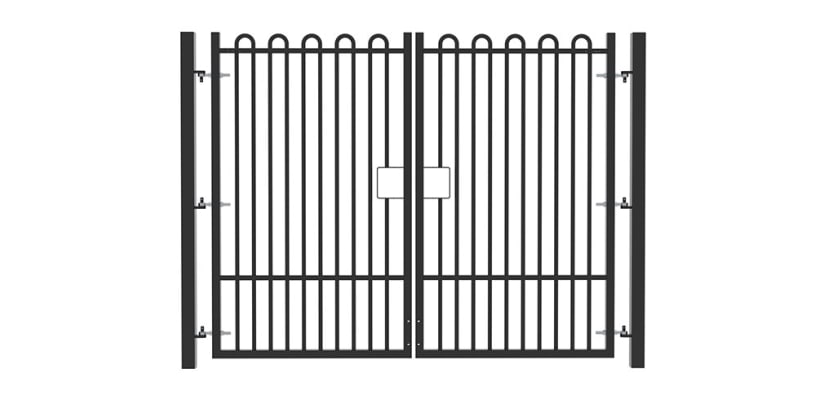

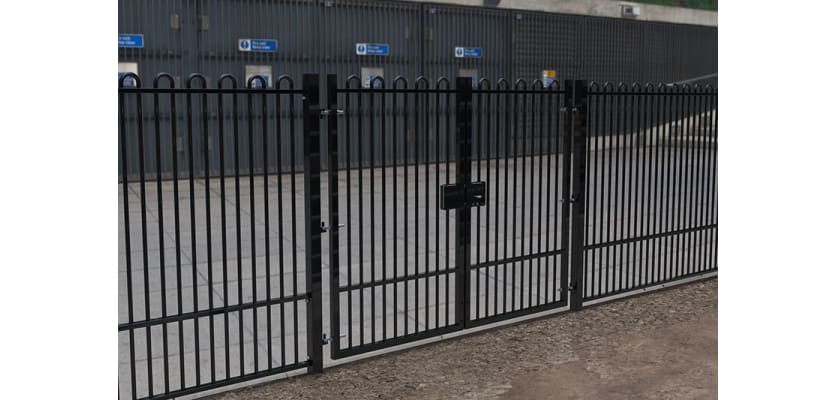

2.0m High x 6.0m Wide EnviroRail® Play Sec Railing Double Leaf Gate Kit
Opt for First Fence's EnviroRail® Play Sec Railings to ensure a secure and safe playground environment. These top-tier choices prioritise safety through features such as anti-climbing height, closely spaced vertical rails, smooth surfaces, and enduring durability. Our EnviroRail® Play Sec gates, specifically crafted to complement the railing kits, provide flexibility in both width and height for dig-in or bolt-down installations. Prior to making your selection, perform a thorough ground assessment for optimal product suitability. Reach out to our knowledgeable sales team at 01283 512111 for expert guidance.
Features and Benefits
The EnviroRail® Play Sec Railing Double Leaf Gate Kit, with proportions of 2.0m in height and 6.0m in width, offers the user total gate access control. This gate performs superbly in terms of entry management by enabling the operation of either one or both leaves. For additional security, it is advisable to include a locking drop bolt with the double leaf format, available as an additional purchase option.
The EnviroRail® Double Gates present a lightweight and fully modular system that is equipped for swift installation of a variety of gate hardware kits. These gates have a universal handing, providing maximum flexibility on-site when choosing the preferred leaf orientation. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
These double leaf gates are notable for their environmentally conscious manufacturing process. Using a low-weld technique on custom laser-cut pre-galvanised components ensures strong joins without resource-intensive welding, making it an ideal choice for environmentally conscious customers, a feature First Fence takes pride in providing.
Every EnviroRail® Play Sec Gate Kit is made from pre-galvanised steel, meeting BS 10346 standards, and coated with polyester powder for extended durability. This dual-layered protection guarantees long-lasting functionality, resisting outdoor elements and maintaining aesthetic appeal for years.
The kit for the double-leaf gate includes two hinge posts, two Play Sec Railing leaves, and six adjustable gate eyes. Featuring three hinges per leaf, the gate adheres to BS 12604 standards, ensuring safety even in the rare occurrence of a hinge failure. The gate hooks are securely welded to the gate post, providing a fixed-axis hinge that eliminates any up and down movement.
Pre-drilled holes streamline the installation of gate eyes and a drop bolt, complemented by plastic plugs to conceal any unused openings on the gate attack face, ensuring a polished appearance and preventing water accumulation. Crafted for seamless compatibility with our security locks, the gate allows for up to 30mm of adjustment from the catch post, streamlining the installation process. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Safety Compliance
The rails, spaced at 100mm intervals, avert entrapment, while the 90mm top bows prevent trapping of wrists or necks. The design and production of the EnviroRail® Play Sec Railing Gate adhere entirely to the BS EN 1176 regulations.
The gate provides a 50mm ground clearance when correctly installed, with the gate opening 90° in and out.
Available in various heights and widths, these gates come in a dig-in or bolt-down version, suitable for diverse environments. The dig-in variant requires the addition of Post Mix to the order, while the bolt-down version requires four M16 x 125mm ground anchor bolts per post.
Need Assistance?
For any inquiries about this product range or any of First Fence's offering then feel free to reach out. Our sales team is ready to assist you! Contact the team by calling 01283 512111 or using the convenient online chat tool.
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 6000mm |
| Total Post Length | 2000mm [Bolt Down], 2600mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 6000mm |
| Total Post Length | 2000mm [Bolt Down], 2600mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
