2.0m High x 4.0m Wide EnviroRail® Play Sec Railing Double Leaf Gate Kit
Product Description
2.0m High x 4.0m Wide EnviroRail® Play Sec Railing Double Leaf Gate Kit
The EnviroRail® Play Sec Railings stand as a popular product from First Fence, serving as the ideal solution for creating secure and safe play areas for young children. Its design addresses crucial factors for play area fencing, featuring an appropriate height to deter climbing, closely spaced vertical rails to prevent potential neck or wrist traps, smooth surfaces for injury prevention, and durability to withstand permanent outdoor installation.
A noteworthy addition to the EnviroRail® range is the Play Sec Railing Double Leaf Gate Kit, intricately designed to complement railings of the same style. Available in various heights and widths, as single or double leaf options, these gate kits provide a secure and suitable entry and exit point for play areas. Highlighting the paramount significance of child safety, these items are meticulously designed with an extra emphasis on improving the overall visual appeal of the area.
Features and Benefits
The EnviroRail® Play Sec Railing Double Leaf Gate Kit, measuring 2.0m in height and 4.0m in width, offers flexible access control. This double leaf gate provides greater entry control with the choice of operating one or both leaves. It is advisable to include a locking drop bolt with the double leaf format, and First Fence offers this as an additional purchase option.
The EnviroRail® Double Gates offer a fully modular and relatively lightweight gate solution, ensuring easy installation for various hardware requirements. With universal handing, they provide on-site flexibility, eliminating fixed left or right-hand specifications. The modular functionality allows for adjustments in case the gates shift, providing a level of flexibility that fixed hardware cannot offer.
Manufactured using an environmentally conscious technique, the EnviroRail® Play Sec Gate Kit distinguishes itself from standard railings, making it the preferred choice for customers with a preference for reduced eco-impact during production. This innovative approach utilises bespoke, laser-cut components pressed together to form robust bonds, significantly reducing the need for energy-intensive welding.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
Each EnviroRail® Play Sec Gate Kit is crafted from pre-galvanised steel meeting BS 10346 standards and coated with polyester powder for durability, ensuring resilience against harsh outdoor elements. This double-layered protection guarantees years of reliable functionality while preserving its aesthetic appeal.

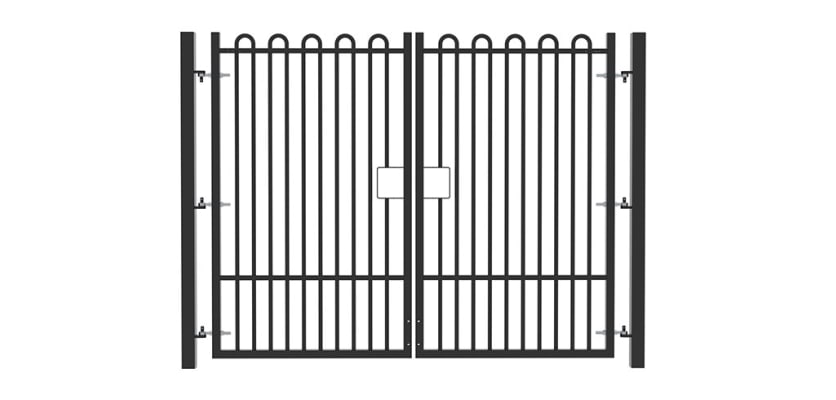

The double leaf gate kit includes two hinge posts, two Play Sec Railing leaves, and six adjustable gate eyes. With three hinges per leaf, the gate remains compliant with BS 12604, ensuring safety even in the unlikely event of a hinge failure. The gate hooks are fully welded to the gate post, providing a fixed-axis hinge that eliminates vertical movement.
Pre-drilled holes streamline the process of affixing gate eyes and a drop bolt. This comes with plastic plugs to conceal any unused openings on the gate attack face, providing a polished appearance and averting water accumulation. The gate is adaptable to security locks and allows for up to 30mm of adjustment from the catch post, facilitating a straightforward installation procedure. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Safety Compliance
The rails, spaced at 100mm intervals, avert entrapment, while the 90mm top bows prevent trapping of wrists or necks. The design and production of the EnviroRail® Play Sec Railing Gate adhere entirely to the BS EN 1176 regulations.
The gate provides a 50mm ground clearance when correctly installed, with the gate opening 90° in and out.
Available in various heights and widths, these gates come in a dig-in or bolt-down version, suitable for diverse environments. The dig-in variant requires the addition of Post Mix to the order, while the bolt-down version requires four M16 x 125mm ground anchor bolts per post.
Get in Touch
For any inquiries about this product range, feel free to reach out. Our sales team is ready to assist you! Contact the team by calling 01283 512111 or using the online chat tool.
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 4000mm |
| Total Post Length | 2000mm [Bolt Down], 2600mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Type | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 4000mm |
| Total Post Length | 2000mm [Bolt Down], 2600mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Type | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
