2.0m High x 4.0m Wide EnviroRail® Bow Top Double Leaf Gate Kit
Product Description

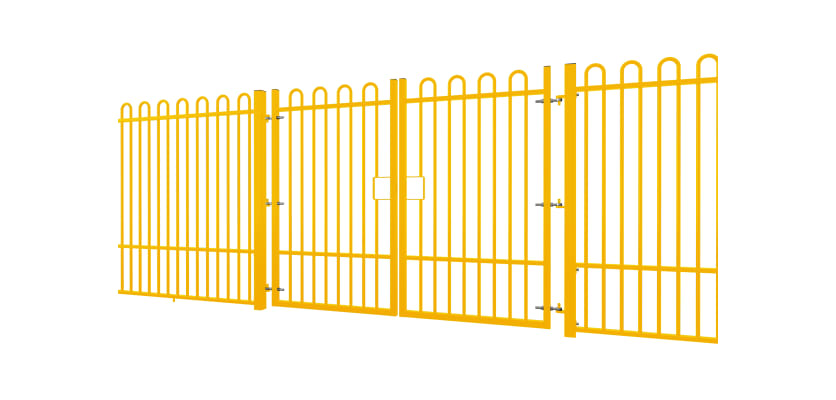

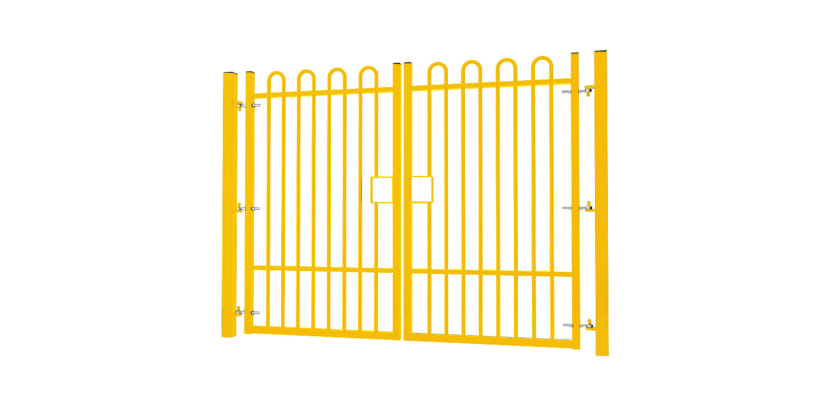

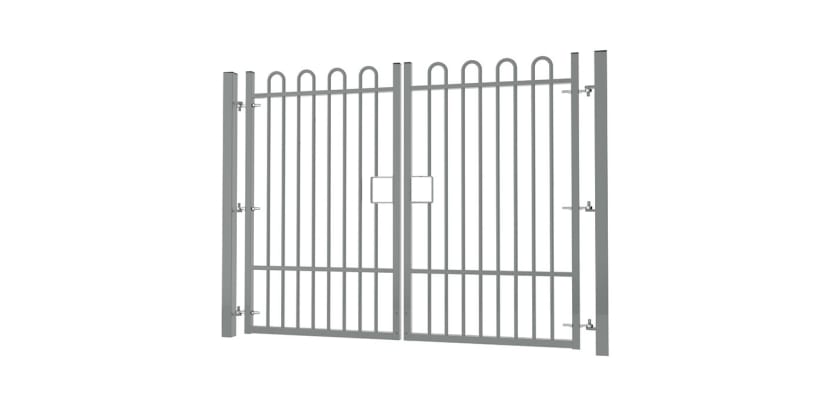

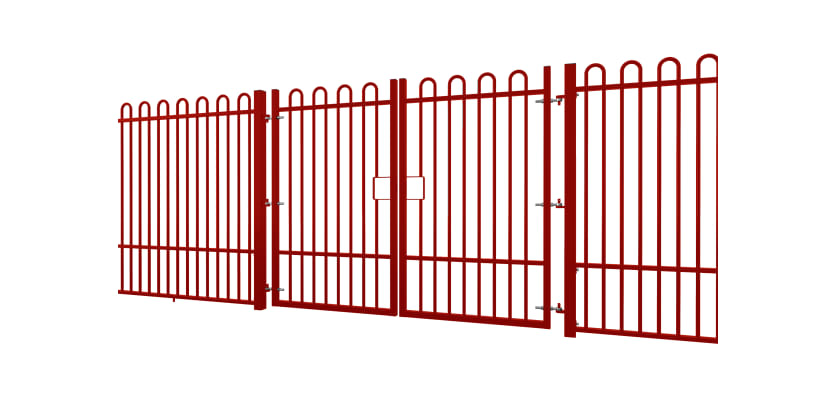

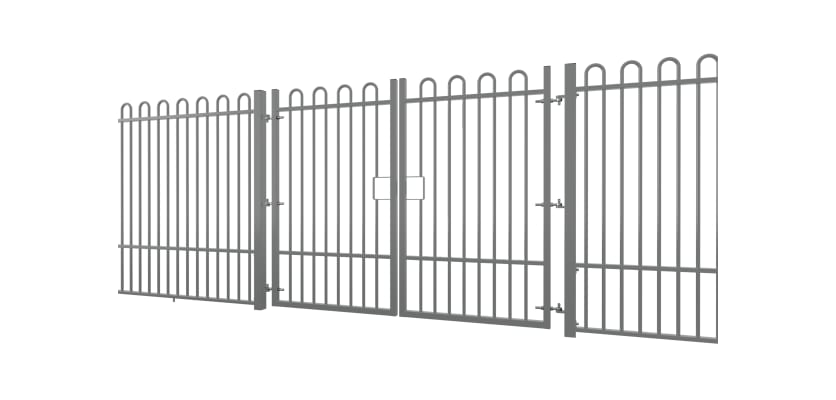

2.0m High x 4.0m Wide EnviroRail® Bow Top Double Leaf Gate Kit

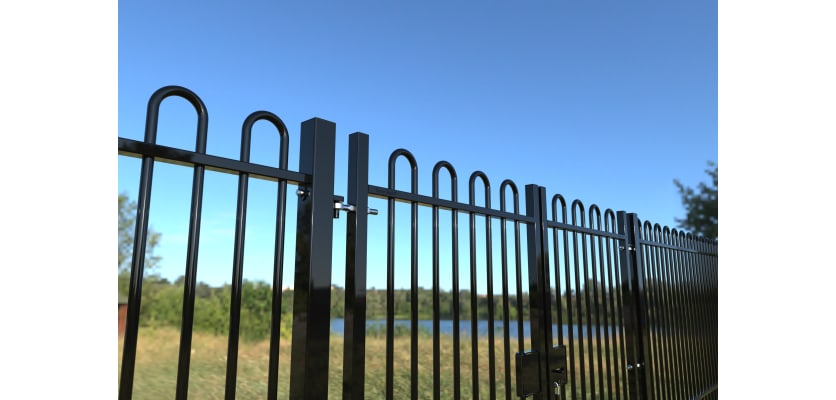

Introducing the timeless good looks and durable functionality of the Bow Top Gates featured in the EnviroRail® collection from First Fence. Known for their enduring, traditional appeal and cost-effectiveness, the Bow Top railing stands out as a quintessential fencing style, effectively demarcating boundaries for both private and public areas.
The EnviroRail® Bow Top Gate is a crucial component of this product collection, and has been designed to harmonise with its corresponding railing system. Its gracefully curved top offers a gentle and welcoming aesthetic distinct from rigid options like palisade-type barriers. Echoing the grace and resilience of 19th-century design, these gates are ideal for various environments such as parks, schools, commercial spaces, and residential areas. Originally fashioned from wrought iron, the traditional crafting process has evolved to include materials like steel or aluminium, ensuring accessibility without compromising on quality.
As a part of the EnviroRail® series, First Fence proudly presents gate kits available in both single and double leaf options, boasting a wide range of polyester powder-coated colours. These gates are adaptable to diverse ground conditions, providing flexible formats for bolt-down or dig-in installations, ensuring suitability for various environmental landscapes.
Features and Benefits

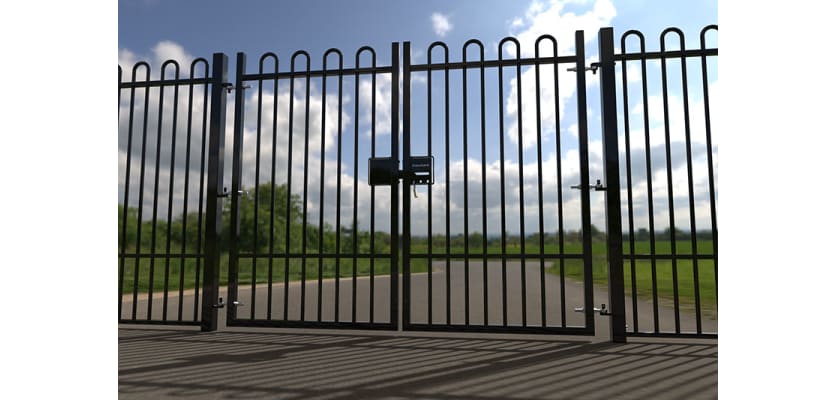

The EnviroRail® Bow Top Double Leaf Gate Kit stands tall at 2.0 metres and spans 4.0 metres wide, making it one of the taller gates available within this range. Its ample dimensions efficiently cater to pedestrian and vehicular access requirements while discouraging climbing attempts due to its height. Crafted from pre-galvanised steel and further coated for added protection, these gates ensure durability and an extended lifespan. The polyester powder coating not only offers a sleek finish but also shields the gates from weather and environmental damage. There is a choice of RAL colours.
Taking an eco-conscious approach, these gate kits minimise welding reliance by utilising custom-made, laser-cut components. Their modular and lightweight design simplifies installation, featuring pre-drilled holes for adjustable hinges and a drop bolt while strictly adhering to BS 12604 safety standards, ensuring maximum stability. Even in the event of hinge failure, these gates remain upright and secure, significantly reducing the risk of injury or damage.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.

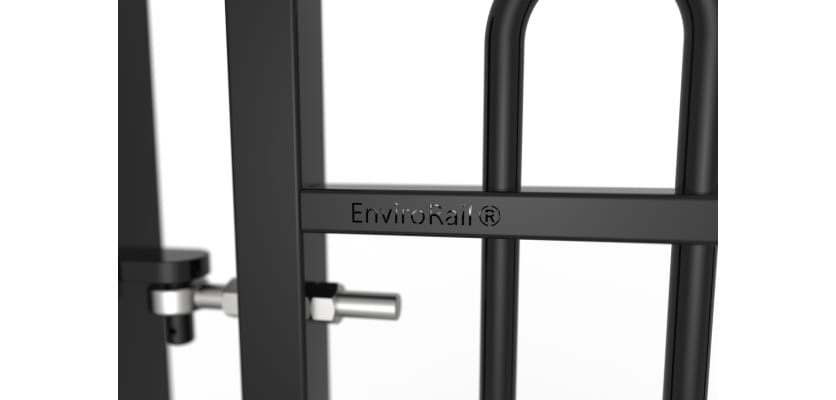

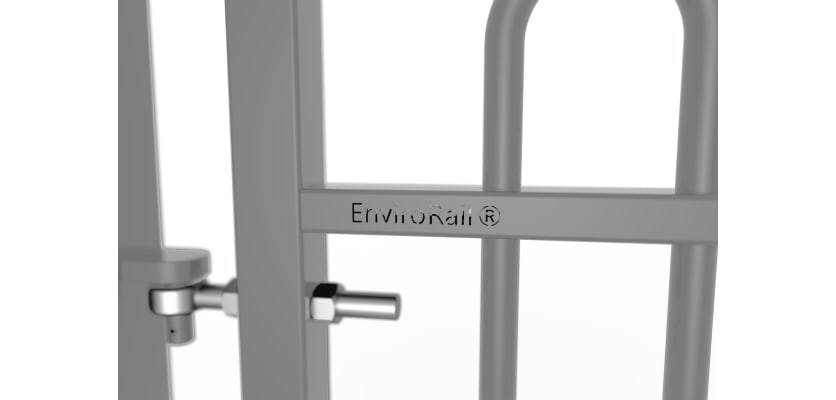

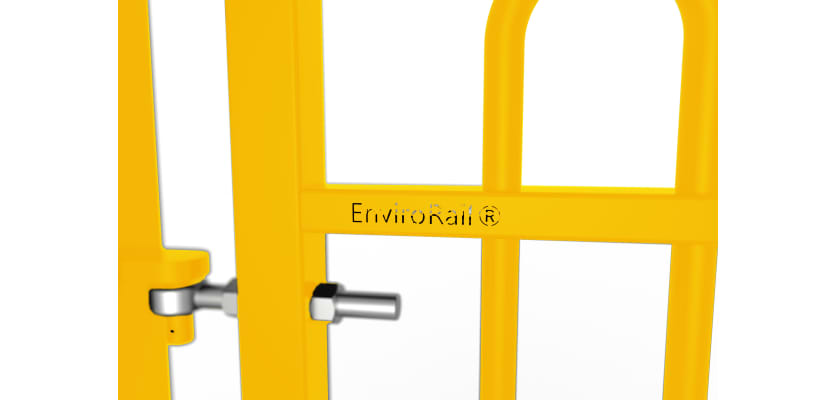

The EnviroRail® Double Gates present a fully modular and relatively lightweight solution, streamlining gate or driveway security with easy installation adaptable to various hardware requirements. They offer universal handing, providing on-site flexibility without fixed left or right-hand specifications. Each gate in the kit includes pre-drilled holes for six adjustable hinges and a drop bolt, along with plastic hole plugs for unused holes. A locking drop bolt enhances security and is recommended for the double leaf gate.

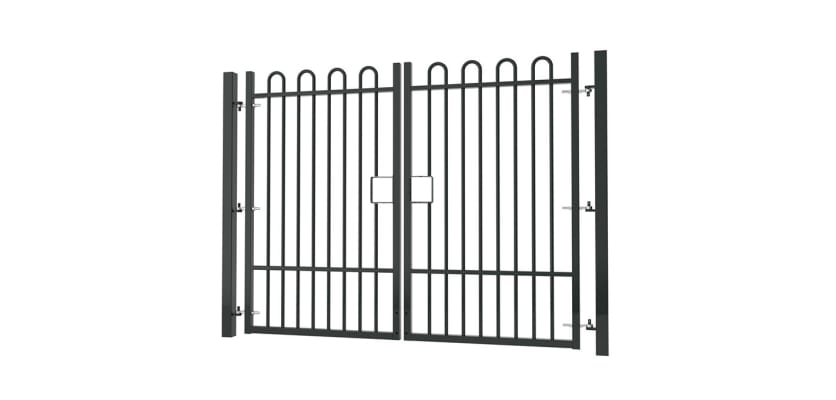

Comprising two gate leaves, posts, and adjustable gate eyes, the EnviroRail® Double Gates comply with safety standards for stability, offering flexibility in heights and widths. Available in both dig-in or bolt-down variants, they adapt to different terrains.

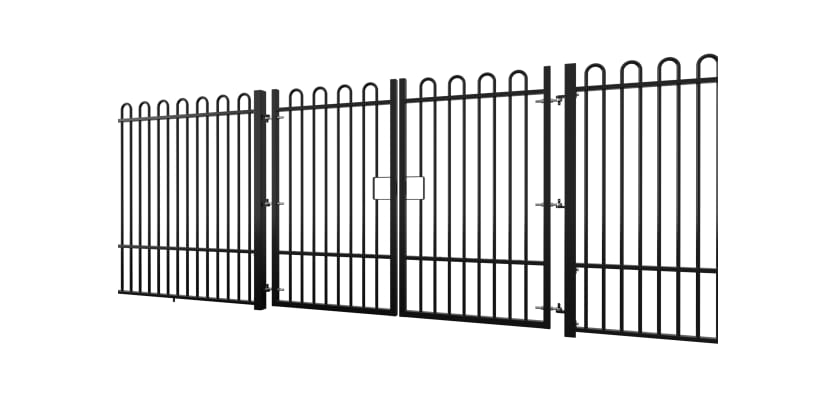

In addition to gate kits, First Fence offers Railings, Estate Railings, and Gates, providing security options equipped with additional locking mechanisms.
Contact Us!
For personalised assistance in product selection, feel free to reach out to the knowledgeable First Fence sales team at 01283 512111 or through our online chat tool. We are dedicated to helping you discover the ideal products for your project requirements!
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 4000mm |
| Total Post Length | 2000mm [Bolt Down], 2600mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Bow Top - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |

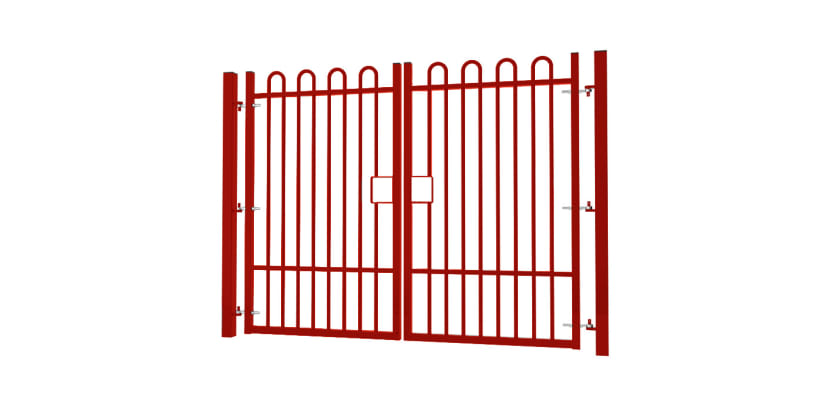

| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
