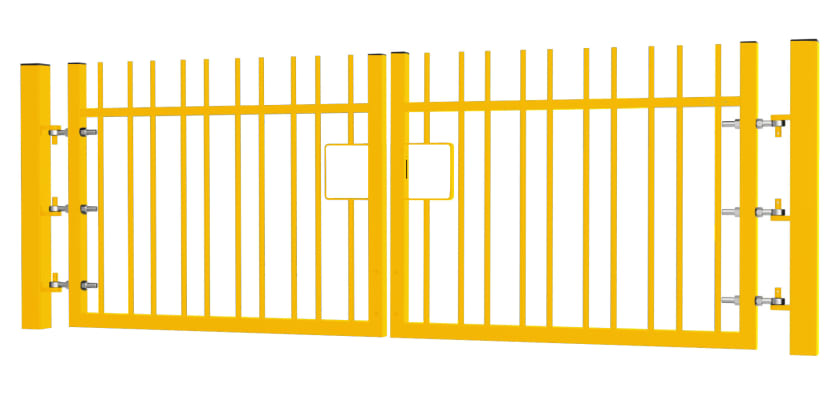

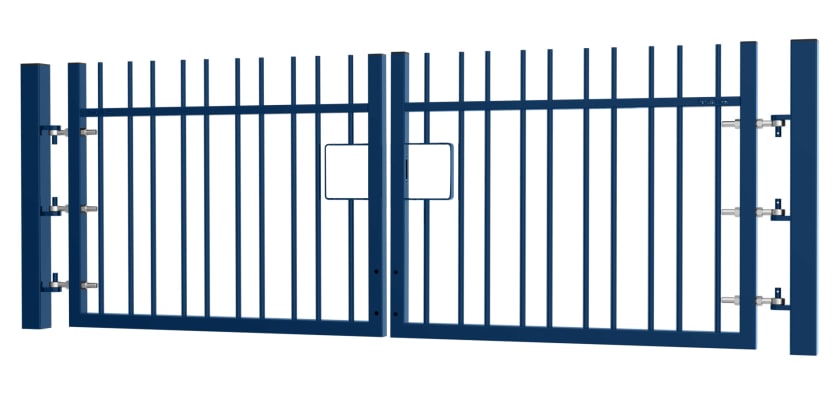

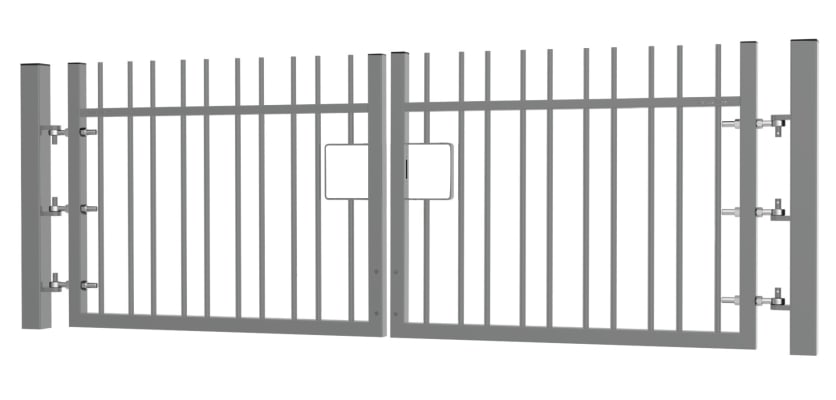

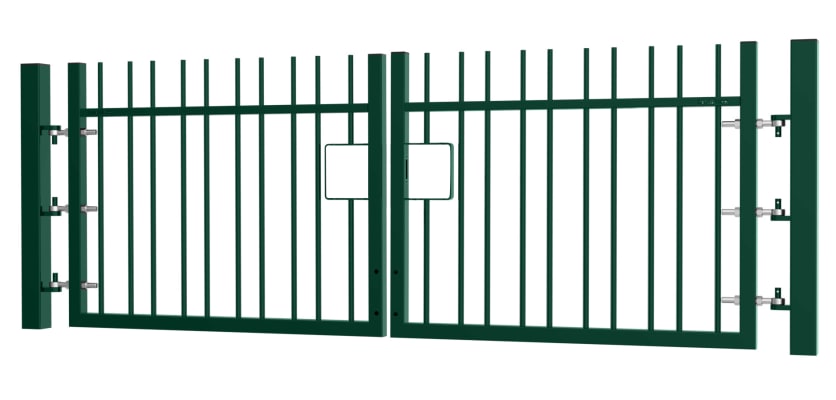

1.0m High x 6.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Product Description
1.0m High x 6.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Introducing the EnviroRail® Vertical Bar Gate by First Fence, the latest addition to our product family. This innovative gate collection is designed to complement our renowned EnviroRail® Vertical Bar Railing range, adding not only visual appeal but also practicality to any installation. Absorb yourself in the clever design and manufacture that integrates affordability with sophistication, promising timeless allure and sturdy durability.
These vertical rail gates are available in various widths and heights, providing complete versatility for both dig-in and bolt-down formats. This ensures that these gates will work right across all types of ground, enhancing the gate's applicability in different settings. Before making your gate purchase, we suggest that a ground assessment is carried out to ensure the selection of the most suitable product for your project. Our knowledgeable sales team is ready to provide advice, so feel free to reach out to them at 01283 512111.
Features and Benefits
The EnviroRail® Vertical Bar Double Leaf Gate Kit, standing at 1.0m in height and 6.0m in width, is designed for larger gates or driveways. This size will easily facilitate the smooth passage of pedestrian traffic and smaller vehicles. The double-leaf gate design provides enhanced flexibility, allowing one or both leaves to be in open or closed positions, giving the user complete access control.
What sets this vertical bar gate apart is its environmentally conscious manufacturing method. By applying an unconventional low-weld technique on custom-made, laser-cut pre-galvanised components this ensures robust connections without the need for resource-intensive and energy-consuming welding. This makes it an optimal choice for customers prioritising reduced environmental impact, and something that First Fence is proud to make available.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
First Fence's EnviroRail® Double Gates offer an advanced, fully modular yet lightweight gate solution. Their universally handed format gives on-site flexibility without fixed left or right-hand specifications, allowing adjustments if the gates move, a significant advantage fixed hardware lacks.
Each gate in the kit arrives pre-drilled with holes, simplifying the fitting of the six adjustable gate eye hinges and a locking drop bolt. Plastic hole plugs are included to conceal any unused openings on the attack face. A locking drop bolt is available as an optional addition, highly recommended for double-leaf gate security.
The kit includes two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each gate leaf), adhering to BS 12604 safety guidelines for gate stability, even if one hinge fails. This is crucial for preventing injury to people and property damage. The gate hooks are securely welded to the gate post, giving fixed-axis hinges that eliminate any vertical movement.
Available in various heights and widths, the gate kits come in both dig-in and bolt-down versions, catering to installation needs in diverse locations. The dig-in variant suits softer terrain such as grass and soil, requiring Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.
Compatible with our security locks, available to add to your order, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with the gates having 50mm ground clearance.
In addition to this gate kit, First Fence offers a comprehensive range of EnviroRail® Railings, Estate Railings, and Gates. Enhance security by incorporating a robust padlock as an extra precautionary measure for both domestic and professional users.
Get in Touch
For guidance in selecting the ideal product, contact the First Fence sales team today at 01283 512111 or use the convenient online chat tool. Elevate your space with the EnviroRail® Vertical Bar Gate – where innovation meets environmental consciousness.
Specifications & Downloads
| Height | 1000mm [Installed] |
| Access Width | 6000mm |
| Total Post Length | 1000mm [Bolt Down], 1500mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
