1.0m High x 3.0m Wide EnviroRail® Play Sec Railing Single Leaf Gate Kit
Product Description
1.0m High x 3.0m Wide EnviroRail® Play Sec Railing Single Leaf Gate Kit
First Fence presents the EnviroRail® Play Sec Railing gate range – an eco-friendly solution tailored for forming safe, secure boundaries around parkland and playgrounds. This gate has been particularly designed to put the safety of children first, while also enhancing the general visual attractiveness of the surroundings.
When selecting railing and gate products for play or recreational areas, several factors demand consideration. The height of the product should be appropriate to prevent easy climbing or slipping through by children. The vertical railings must be closely spaced to stop a child's head from getting stuck while maintaining correct visibility. Smooth exterior lines are essential to prevent cuts or scrapes, and the product should be devoid of sharp edges or protruding elements that could cause injury. Moreover, the product's durability, weather resistance, and low-maintenance features are crucial to withstand outdoor conditions, while compliance with safety standards remains a top priority.
Introducing the EnviroRail® Play Sec Railing Gate – a new addition designed to seamlessly integrate with the EnviroRail® Play Sec Railing range.
Features and Benefits
Crafted using an innovative and environmentally conscious technique, the EnviroRail® Play Sec Gate distinguishes itself with a lower eco-impact during production. Utilising bespoke, laser-cut components pressed together to form robust bonds, this technique reduces the need for energy-intensive welding. The resulting pressed bonds are as sturdy as their welded counterparts.
Each EnviroRail® Play Sec Gate Kit is constructed from pre-galvanised steel meeting BS 10346 standards and coated with polyester powder, ensuring durability and resilience against harsh outdoor elements. This double-layer protection guarantees reliable functionality and preserves aesthetic appeal for many years.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
The EnviroRail® gate range offers full modularity and a lightweight system for swift installation, accommodating various gate hardware items. Universally designed, these gates provide on-site flexibility without the need for specific right or left-hand specifications, simplifying the decision-making process during installation. This modular functionality allows easy adjustments, providing adaptability that fixed hardware cannot offer.

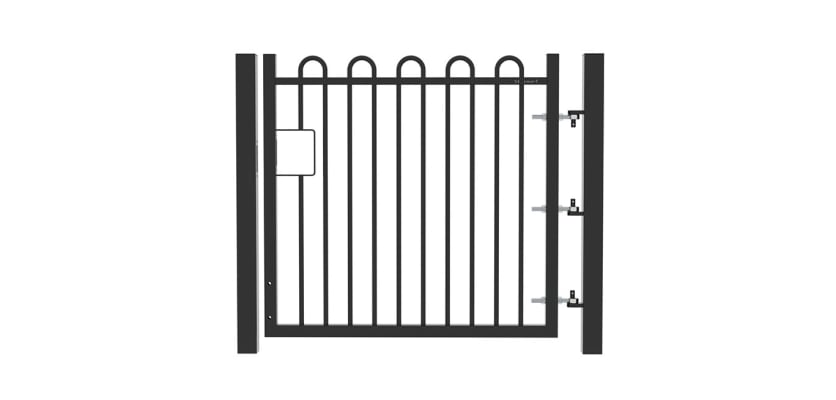

The single leaf gate kit includes a hinge and catch post, a single Play Sec Railing leaf, and three adjustable gate eyes. Three hinges ensure BS 12604 compliance, ensuring safety even in the unlikely event of one hinge failing. The gate hooks, fully welded to the gate post, create a fixed-axis hinge, eliminating vertical movement.
Pre-drilled holes make it straightforward to attach gate eyes and a drop bolt, with plastic plugs included to cover unused holes on the gate attack face. Compatible with security locks, the gate allows for up to 30mm of adjustment from the catch post, ensuring ease of installation. The UniSlide Slider Single Gate Kit comes included with all EnviroRail single gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Safety Compliance
Rails are set at 100mm centres to prevent entrapment, and top bows are 90mm to prevent wrist or neck traps. The design and manufacture of the EnviroRail® Play Sec Railing Gate comply with BS EN 1176 regulations.
The gate offers 50mm ground clearance when correctly installed, opening 90° in and out as a single leaf gate.
Available in various heights and widths, these gates come in dig-in or bolt-down versions, suitable for diverse environments. For the dig-in variant, Post Mix needs to be added to the order, and the bolt-down version requires four M16 x 125mm ground anchor bolts per post.
Get in touch
For inquiries about this product range, reach out to our sales team at 01283 512111 or use the online chat tool for immediate assistance.
Specifications & Downloads
| Height | 1000mm [Installed] |
| Access Width | 3000mm |
| Total Post Length | 1000mm [Bolt Down],1500mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Gate Frame | 2 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
