1.0m High x 3.0m Wide EnviroRail® Flat Top Single Leaf Gate Kit
Product Description

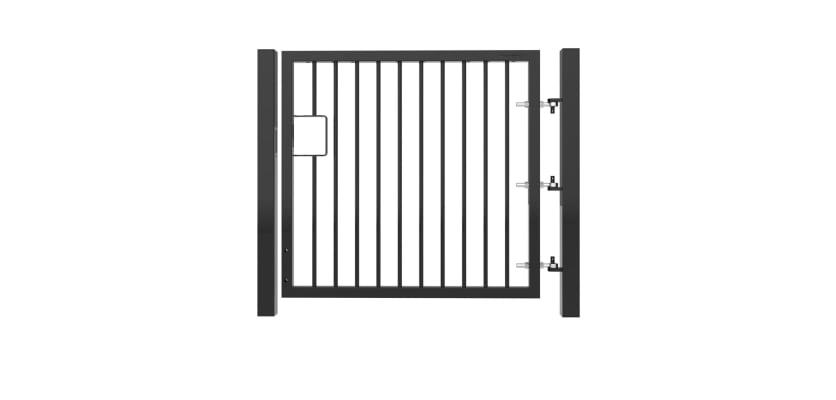

1.0m High x 3.0m Wide EnviroRail® Flat Top Single Leaf Gate Kit
Introducing the EnviroRail® Flat Top Gate series by First Fence, designed and manufactured to match the EnviroRail® Flat Top Railings. Also known as flat handrails or flat bar railings, this product offers a modern railing system with clean lines, suitable for diverse locations. Recognised for the horizontally-oriented top surface, these railings boast a design that goes beyond aesthetics. Functioning as a reliable barrier, this product finds versatile applications in parks, schools, commercial, and residential areas, providing security to public spaces while maintaining an inviting atmosphere.
Within the EnviroRail® collection from First Fence, we offer gate and railing panel kits. Our gates are available in both single and double leaf designs and come in a variety of polyester powder-coated colours.
Features and Benefits
The EnviroRail® Flat Top Railing, resembling a standard bay, implements an environmentally conscious construction technique using a low-weld approach. This method uses custom-made, laser-cut pre-galvanised components, forming robust connections when pressed together during assembly and eliminating the need for energy-intensive welding processes. This eco-friendly choice appeals to customers concerned about minimising environmental impact during production.
Manufactured from quality pre-galvanised steel meeting BS 10346 standards and coated with polyester powder, our gates ensure durability to withstand outdoor challenges.
EnviroRail® Gates present a fully modular, lightweight system equipped with various hardware for quick and easy installation. Universally handed, these gates offer on-site flexibility, enabling the selection of the preferred leaf orientation during installation. The modular functionality provides adjustability, offering flexibility should the gates move, which fixed hardware doesn't provide.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
Each gate comes with pre-drilled frame holes for easy installation of three hinges and a drop bolt, if chosen, accompanied by plastic hole plugs for unused holes to enhance appearance.
The kit includes an EnviroRail® gate leaf, hinge, catch post, and three adjustable gate eyes, complying with BS 12604 safety guidelines. With three hinges, the gate remains secure even if one should fail, preventing potential injury or damage. The gate hooks are fully welded to the gate post for added security, providing fixed-axis hinges eliminating vertical movement. The UniSlide Slider Single Gate Kit comes included with all EnviroRail single gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Offered in various heights and widths, this gate kit provides both dig-in and bolt-down versions suitable for installation in diverse locations. The dig-in option suits softer ground like soil or grass, requiring Post Mix for post stability. Meanwhile, the bolt-down option suits harder ground and is secured using four M16 x 125mm anchor bolts per post.
When installed correctly, the gate allows up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.
The modularity of this gate range means it is compatible with all our security locks, also available from First Fence. An anti-climb Locking Plate can be added for enhanced security, along with a heavy-duty padlock.
In addition, First Fence offers Railings, Estate Railings, and Gates, providing a comprehensive range for various security needs.
Contact Us!
For any inquiries regarding First Fence products, our dedicated sales team is available to assist you. Contact us at 01283 512111 or use our online chat tool for personalised guidance.
Specifications & Downloads
| Height | 1000mm [Installed] |
| Access Width | 3000mm |
| Total Post Length | 1000mm [Bolt Down],1500mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Rail Style | Flat Top - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| UniSlide Slider Kit | 1 |
Specifications & Downloads
| Height | 1000mm [Installed] |
| Access Width | 3000mm |
| Total Post Length | 1000mm [Bolt Down],1500mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Rail Style | Flat Top - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| UniSlide Slider Kit | 1 |
