2.0m High EnviroProtect® SR1 (A1) LPS 1175 Vertical Bar Railing Kit
Product Description
EnviroProtect® SR1 (A1) LPS 1175 2.0m High Vertical Bar Railing Kit
The EnviroProtect® SR1 (A1) LPS 1175 2.0m High Vertical Bar Railing Kit from First Fence represents a versatile and reliable security fencing solution tailored for sites requiring enhanced perimeter height without sacrificing visibility or build quality. Designed to provide an effective physical barrier with proven resistance against forced entry, this kit offers an ideal balance of security, durability, and ease of installation.
Certified A1 (SR1) Security Performance
This fencing kit complies fully with the LPS 1175 SR1 (A1) standard, an assurance that it withstands at least one minute of determined attack by Category A tools, including bolt cutters, screwdrivers, and pliers. This certification is essential for low to medium risk sites, providing a measurable and recognised level of protection.
The SR1 (A1) rating assures site owners that this fence is more than a visual deterrent; it actively delays intruders and complements other security measures like CCTV and patrols.
Low-to-No Weld Design: Engineering Excellence
A standout feature of the EnviroProtect® range, including the 2.0m kit, is its low-to-no weld construction. Unlike conventional welded fencing, this system uses advanced manufacturing techniques that minimise weld points by employing mechanical fasteners and precision assembly. This approach:
- Enhances the overall structural resilience of the fence by reducing potential weak points caused by welding stresses.
- Improves long-term corrosion resistance by limiting heat-affected zones where rust can initiate.
- Delivers a consistently high-quality finish and reduces manufacturing lead times, enabling First Fence to offer competitive pricing without compromising performance.
This innovative design approach ensures that the EnviroProtect® fencing is both strong and reliable under physical attack and environmental exposure.
Technical Details and Construction

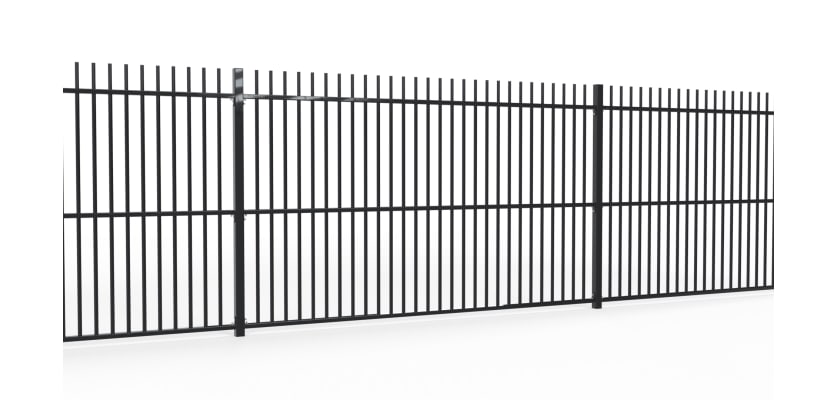

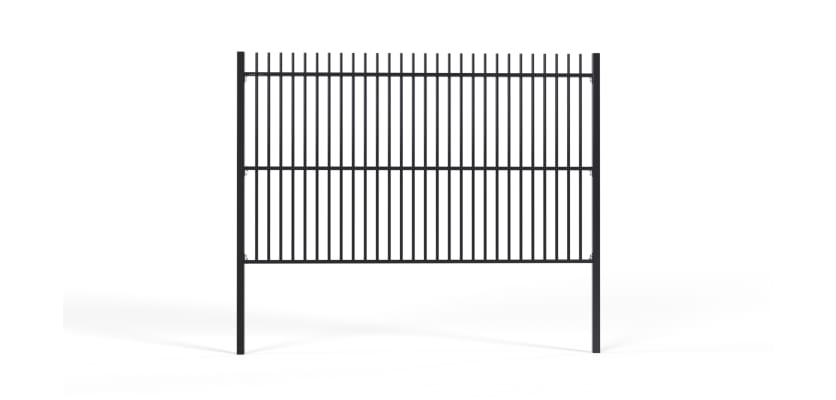

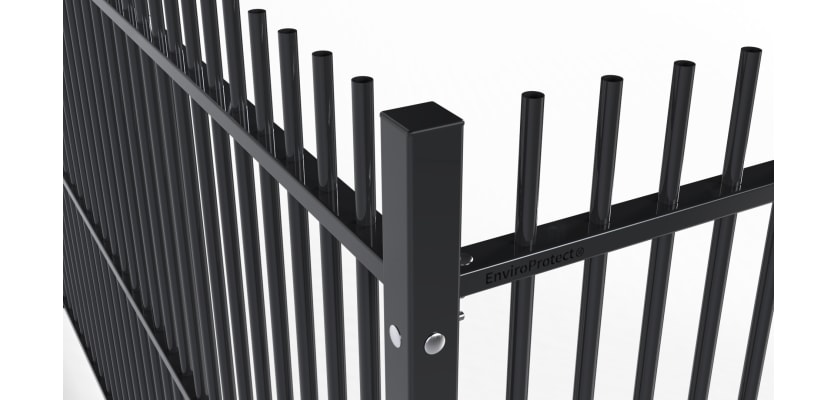

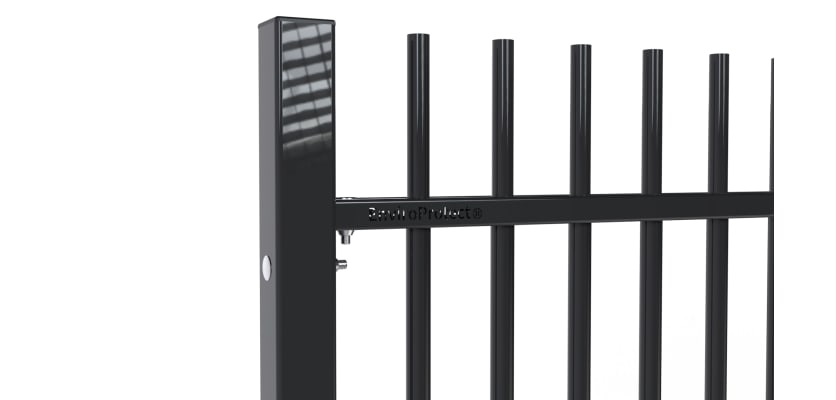

The 2.0m EnviroProtect® railing kit consists of panels 2900mm wide with a total width of 2960mm, including posts. The 2-metre height increases the physical challenge for potential intruders while still allowing easy visibility for security staff and cameras. The vertical bars are 25.4mm tubular steel, spaced at 100mm centres, offering a secure and tough barrier.
Pre-galvanised steel compliant with BS EN 10346 is used throughout the fencing, ensuring excellent protection against corrosion and rust for long outdoor service life.
Installation Versatility
The fencing is designed to suit varied site conditions. It can be bolt-fixed to concrete or hard surfaces using the supplied anchor bolts or concreted in using the dig-in method on softer ground. This flexibility makes the 2.0m kit appropriate for many applications, including commercial sites, utility installations, and mid-level security perimeters.
Applications and Advantages
The 2.0m EnviroProtect® SR1 (A1) kit is perfect for:
- Medium-risk commercial and industrial properties
- Utility sites requiring secure but visible barriers
- Corporate campuses and business parks
- Schools and public institutions are seeking certified security fencing
Its combination of height, strength, and low-weld construction provides peace of mind that perimeter security is uncompromised.
Contact Us
For further details or to arrange a consultation about the 2.0m EnviroProtect® SR1 (A1) Vertical Bar Railing Kit, contact First Fence on 01283 512 111 or via online chat. Our team is ready to assist with tailored advice.
Specifications & Downloads
| Installed Height | 2000mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 2000mm] [Dig In: 2700mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 64.5kg] [Dig In: 66.5kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| Support Legs | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M10 x 45mm Bolts | 6 |
| M10 x 80mm Bolts | 3 |
| M10 Shear Nuts | 9 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
Specifications & Downloads
| Installed Height | 2000mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 2000mm] [Dig In: 2700mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 64.5kg] [Dig In: 66.5kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| Support Legs | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M10 x 45mm Bolts | 6 |
| M10 x 80mm Bolts | 3 |
| M10 Shear Nuts | 9 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
