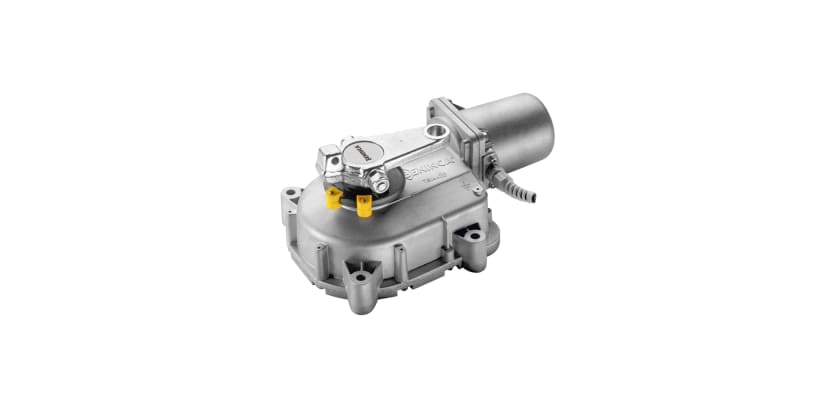

DU.IT24NVE Underground Swing Gate Operator
Product Description
DU.IT24NVE Underground Swing Gate Operator
The DU.IT24NE Underground Swing Gate Operator offers versatility for gates with widths up to 3.5m.
This gate operator operates through electromechanical means and is irreversible. Once the gate is either closed or opened, it cannot be manually operated without disengaging the mechanism. This feature effectively prevents unauthorised tampering or access attempts. This gate type is commonly seen in industrial or commercial environments, but it can also serve effectively in residential settings.
Underground swing gate operators are often preferred in situations where aesthetics are important, providing a discreet and sleek option for gate automation. Their primary benefit is their concealment, as the motors and mechanical parts are buried underground. This design conserves above-ground space and protects the components from harsh weather.
Features
A non-reversible 24 Vdc electromechanical geared motor designed for heavy-duty use.
The integrated encoder provides optimal safety and precision while the gate is moving.
It features an amperometric sensor for obstacle detection to prevent crushing incidents.
Optional battery-powered operation is available.
Constructed with full metal mechanics and includes a built-in mechanical stop.
Suitable for gate leaves up to 3.5 metres.
- First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 335mm x 200mm x 133mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 11 A |
| Opening Time | 15 Seconds |
| Duty Cycle | 99% |
| Wind Loading | 25% |
| Protection Level | IP67 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 3.5m |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Compatible Control Panel | Brainy24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Motor Lever Arm | 1 |
| Instruction Manual | 1 |
