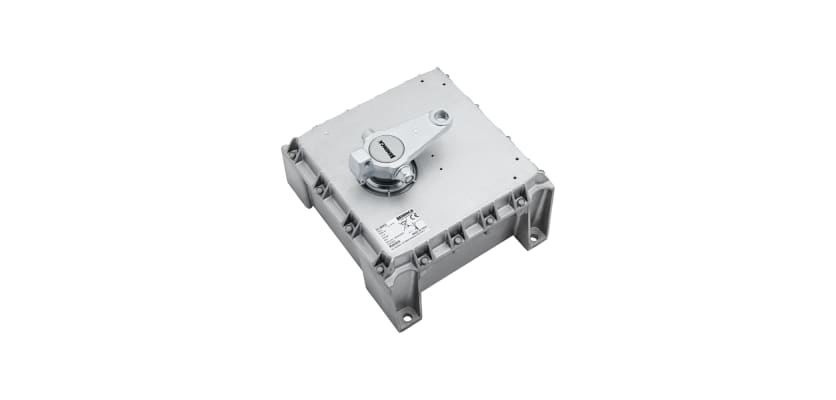

DU.350NGE Underground Swing Gate Operator
Product Description
DU.350NGE Underground Swing Gate Operator
The DU.350NGE Underground Swing Gate Operator offers versatility for gates with widths up to 4.0m.
This heavy duty gate operator functions via electromechanical mechanisms and operates in an irreversible manner. After the gate is closed or opened, manual manipulation is not possible without first disengaging the mechanism; this feature effectively prevents unauthorised tampering or access attempts. While usually found in industrial settings, this gate type can also be effectively utilised in residential environments.
Underground swing gate operators are often chosen in situations where aesthetics are paramount, providing a discreet and sleek automation solution. Their primary benefit lies in their concealment, with motors and mechanical parts buried beneath the gate, saving above-ground space and shielding them from harsh weather.
Features
Non-reversible electromechanical geared motors designed for large gates.

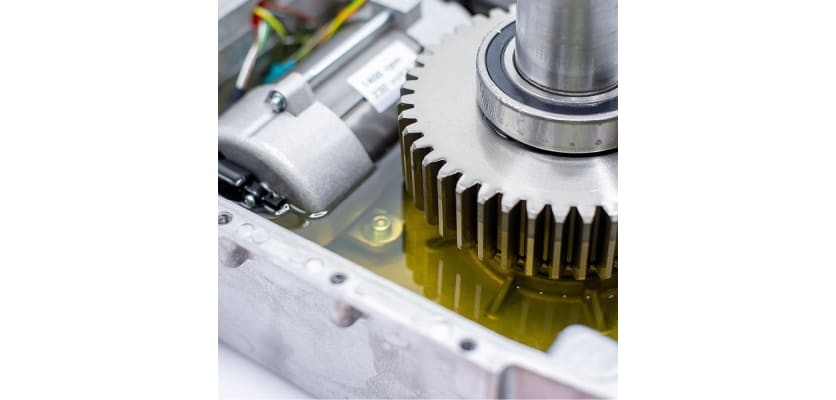

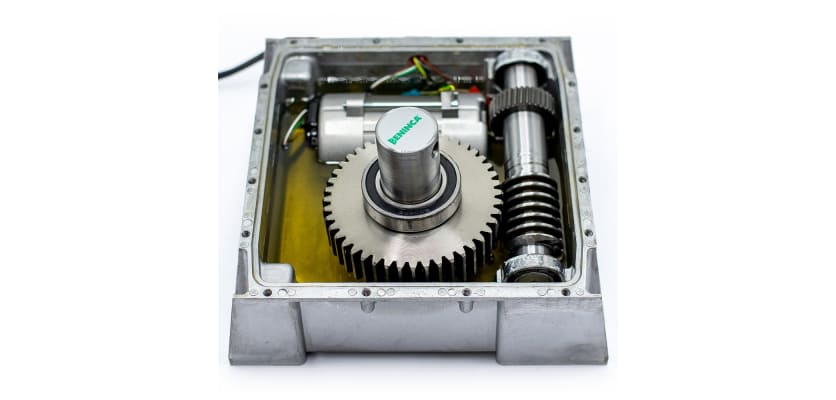

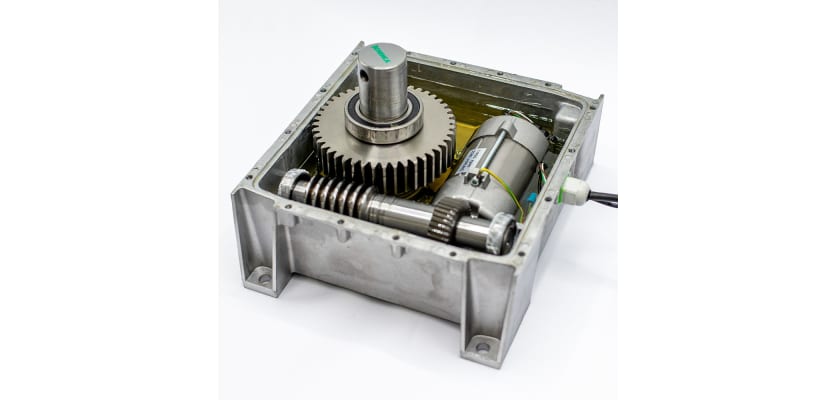

Features a cast iron gearwheel and includes an adjustable mechanical stop.
The encoder ensures optimal precision and safety during gate operation.
- First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as access gates, including palisade, mesh, railings, and specialist and custom offerings.
Contact us
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 300mm x 287mm x 149mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.7 A |
| Opening Time | 22 Seconds |
| Duty Cycle | 99% |
| Wind Loading | 75% |
| Protection Level | IP67 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 4.0m |
| Motor Type | Electromechanical |
| Gate Usage | Light Commercial |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Motor Lever Arm | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Length | 300mm x 287mm x 149mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.7 A |
| Opening Time | 22 Seconds |
| Duty Cycle | 99% |
| Wind Loading | 75% |
| Protection Level | IP67 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 4.0m |
| Motor Type | Electromechanical |
| Gate Usage | Light Commercial |
| Compatible Control Panel | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Motor Lever Arm | 1 |
| Instruction Manual | 1 |
