FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 6.0m Wide
Product Description
FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 6.0m Wide
The FirstLine® 2.2m High x 6.0m Wide Double Swing Barrier is a premier, wide-span access control system engineered for high-traffic sites that demand both a physical perimeter and clear height regulation. Featuring a reinforced dual-leaf gate integrated with a high-level restrictor, this 6.0-metre wide solution is the definitive choice for securing expansive entrances at industrial parks, haulage depots, and large-scale commercial yards.
Enhanced Visibility for HGV & Heavy Traffic
Secure wide entrances with ease using our flexible dual-leaf barrier. Whether managing two-way traffic or large warehouse openings, the arms can be opened separately or in tandem. Mounted on heavy-duty posts for a seamless swing, the system features a built-in vertical reach bar. This allows your team to safely manage the height restrictor from the ground, removing the risks associated with ladder use.
Versatile Dual-Leaf Operation
The double-leaf set-up gives great flexibility for wide-span access points. From controlling a two-way haulage route to securing a wide warehouse entrance, the two arms can be operated either separately or in unison.
- Smooth Operation: Each arm is mounted on heavy-duty posts for a reliable opening circle.
- Ergonomic Design: Features a vertical reach bar, allowing staff to control the height restrictor safely from ground level without the need for ladders.
Professional Grade Security & Stability
Security is central to the design. The barrier features a Unislide double slider padlockable gate kit paired with a blank locking plate. This modular system enables straightforward upgrading or replacement of the lock kit using pre-lasered fixing points.

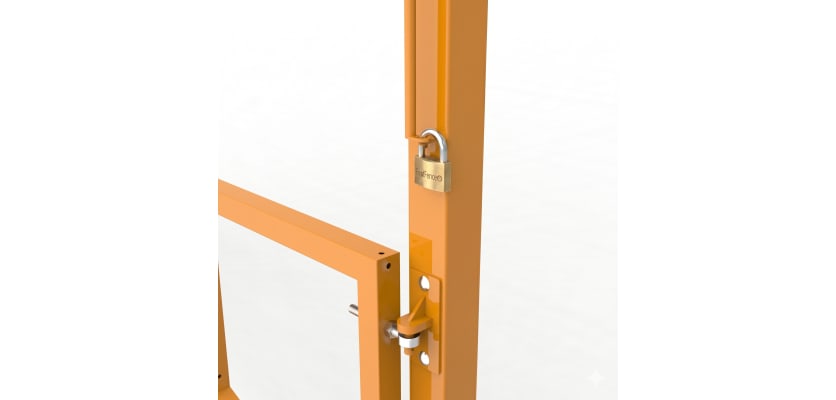

- Central Locking: A strong sliding bolt mechanism securely holds both leaves in place. A heavy-duty padlock can be added for additional protection.
- Precision Alignment: Adjustable gate eyes allow for accurate central alignment during installation.
Installation and Customisation
The 6.0m barrier is supplied in a dig-in ground mounting format, making it ideal for new developments or sites with softer ground. By embedding the posts deeply into concrete foundations, the system gains the stability required to support the weight of the 3.0m leaves.
To enhance site safety or align with company aesthetics, this barrier is finished with a polyester powder coating (PPC) to BS EN 13438. Choose from high-visibility safety colours or bespoke RAL shades to match your corporate branding.
Ideal Applications
- Dig-In Ground Mounting: This style is ideal for new builds or areas with softer ground. Posts are set deep into concrete foundations for maximum leverage resistance. We recommend 4 bags of Post Mix per post (sold separately).
- Bespoke Finishes: Available in high-visibility Safety Yellow, Emergency Red, or custom RAL colours to match corporate branding or local planning requirements.
- Optional Catch Kits: To protect against wind damage and hinge strain, we include catch posts. These keep the gates safely locked in the fully open position during operating hours.
Ideal Applications
- Logistics & Distribution: High-level arms prevent cab-height impacts in busy loading bays.
- Construction & Quarries: Maintains visibility even in rugged, dusty environments.
- Retail & Supermarkets: Prevents out-of-hours fly-tipping and unauthorised parking.
- Emergency Infrastructure: Provides wide-span access for fire tenders and utility vehicles.
Contact Us
For more information on the 2.2m High x 4.0m Wide Double Swing Barrier, or to discuss bespoke requirements, please contact our team. You can reach us by phone at 01283 512 111, email sales@firstfence.co.uk, or use our online chat system to speak with an expert today.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 6.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
| Ground Clearance | 50mm |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 1.0m High x 3.0m Wide Swing Barrier Leaf [Pre-Galvanised] | 2 |
| 0.5m High x 5.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Steel Telescopic Beam Kit [Steel HS 50x50x1.5mm x 1500mm] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| Unislide Double Slider Padlockable Gate Kit | 1 |
| Blank Locking Plate Kit [Double Leaf] | 1 |
| 19mm Bolt-On Hinge Hook Kit for Gates | 4 |
| Adjustable Gate Eye [150mm] | 6 |
| 60x60mm Black Ribbed Inserts | 1 |
| 50x50mm Black Ribbed Inserts | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 5500mm [Welded Lugs] | 1 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
| 1.0m Swing Barrier Catch Post | 2 |
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 6.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
| Ground Clearance | 50mm |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 1.0m High x 3.0m Wide Swing Barrier Leaf [Pre-Galvanised] | 2 |
| 0.5m High x 5.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Steel Telescopic Beam Kit [Steel HS 50x50x1.5mm x 1500mm] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| Unislide Double Slider Padlockable Gate Kit | 1 |
| Blank Locking Plate Kit [Double Leaf] | 1 |
| 19mm Bolt-On Hinge Hook Kit for Gates | 4 |
| Adjustable Gate Eye [150mm] | 6 |
| 60x60mm Black Ribbed Inserts | 1 |
| 50x50mm Black Ribbed Inserts | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 5500mm [Welded Lugs] | 1 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
| 1.0m Swing Barrier Catch Post | 2 |
