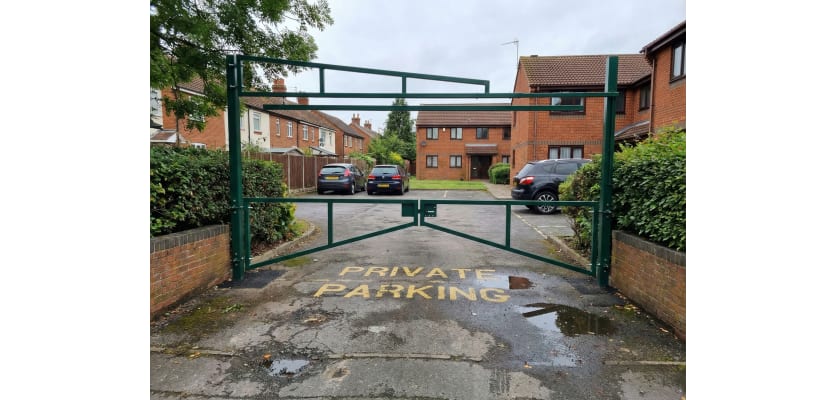

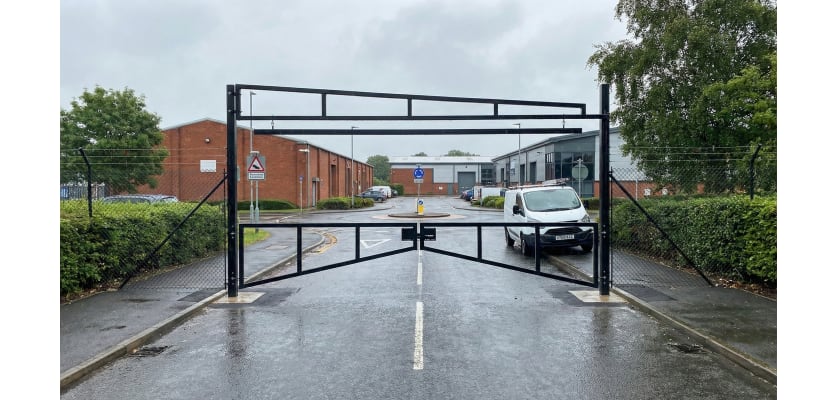

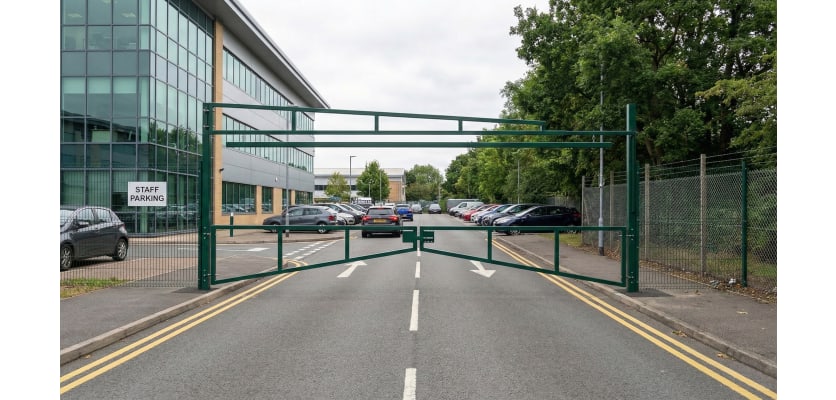

FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 5.0m Wide
Product Description
FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 5.0m Wide
The FirstLine® 2.2m x 5.0m Double Swing Barrier with High-Level Swing Arm Kit is an elite, heavy-duty access control solution tailored for environments requiring maximum overhead visibility. This dual-arm system is purpose-built to span 5.0-metre-wide entrances, making it the ideal choice for securing logistics hubs, haulage yards, and industrial estates. By combining a 5.0m total width with an elevated high-level kit, this barrier serves as a prominent physical and visual deterrent, ensuring unauthorised vehicles are kept at bay while maintaining a professional site profile.
Enhanced Visibility for HGV & Heavy Traffic
Engineered from high-grade pre-galvanised steel, this double swing barrier is built to endure heavy traffic and the toughest British weather. By positioning the swing arm at the optimal height for HGV drivers, the kit dramatically lowers the risk of site collisions. Plus, our deep-zinc galvanisation process ensures a rust-resistant, maintenance-free finish that lasts for years.
Versatile Dual-Leaf Operation
Designed for maximum versatility, the dual-leaf configuration is the ideal solution for wide access points, from busy two-way haulage routes to expansive warehouse bays. Each arm operates independently, allowing for tailored entry widths as needed. Engineered with heavy-duty pivot posts, the gates ensure a smooth, consistent swing, while the integrated vertical reach bar prioritises staff safety by allowing ground-level control of the height restrictor, eliminating the need for ladders.
Professional Grade Security & Stability

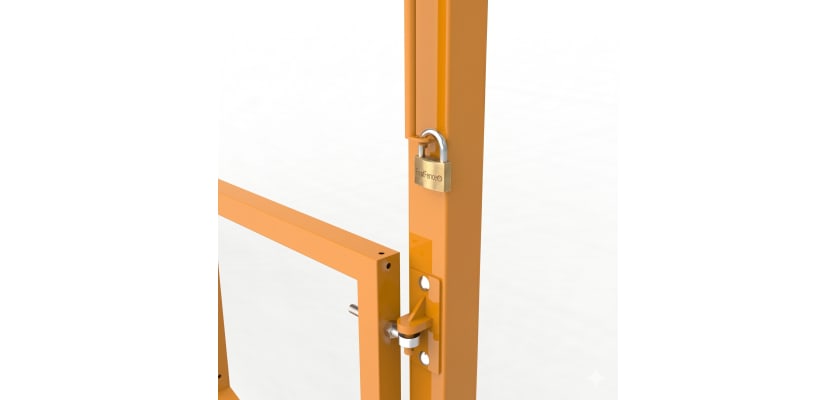

Security is key in the design. The barrier has a Unislide double slider padlockable gate kit and a blank locking plate. This modular design allows you to upgrade or swap the lock kit easily using pre-lasered holes.
- Central Locking: A sturdy sliding bolt system secures both leaves soundly. Add a heavy duty padlock for extra security.
- Precision Alignment: Adjustable gate eyes provide a perfect central meet during installation.
Installation and Customisation
- Dig-In Ground Mounting: Ideal for new construction projects or sites with softer ground conditions. Posts are installed deep into concrete foundations to maximise resistance against leverage. We recommend 4 bags of Post Mix per post (sold separately).
- Bespoke Finishes: Available in high-visibility Safety Yellow, Emergency Red, or bespoke RAL colours to suit corporate branding or comply with local planning requirements.
- Catch Kits: To reduce wind-related damage and minimise stress on hinges, we include catch post kits. These securely hold the gates in a fully open position during operational use.
Ideal Applications
- Logistics & Distribution: High-level arms prevent cab-height impacts in busy loading bays.
- Construction & Quarries: Maintains visibility even in rugged, dusty environments.
- Retail & Supermarkets: Stops out-of-hours fly-tipping and unauthorised parking.
- Emergency Infrastructure: Gives wide-span access for fire engines and utility vehicles.
Contact Us
To discuss the technical specifications of the 2.2m x 5.0m High-Level Double Swing Barrier or to request a formal quote for your project, our team is ready to help. They can be reached by calling 01283 512 111, emailing sales@firstfence.co.uk or by using Live Chat, available via our website for instant support.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 5.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
| Ground Clearance | 50mm |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 1.0m High x 2.5m Wide Swing Barrier Leaf [Pre-Galvanised] | 2 |
| 0.5m High x 5.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| 19mm Bolt-On Hinge Hook Kit for Gates | 4 |
| Adjustable Gate Eye [150mm] | 6 |
| Unislide Double Slider Padlockable Gate Kit | 1 |
| Blank Locking Plate Kit [Double Leaf] | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| 60x60mm Black Ribbed Inserts | 2 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 4500mm [Welded Lugs] | 1 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
| 1.0m Swing Barrier Catch Post | 2 |
