FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 4.0m Wide
Product Description
FirstLine® Double Swing Barrier with High-Level Swing Arm Kit - 2.2m High x 4.0m Wide

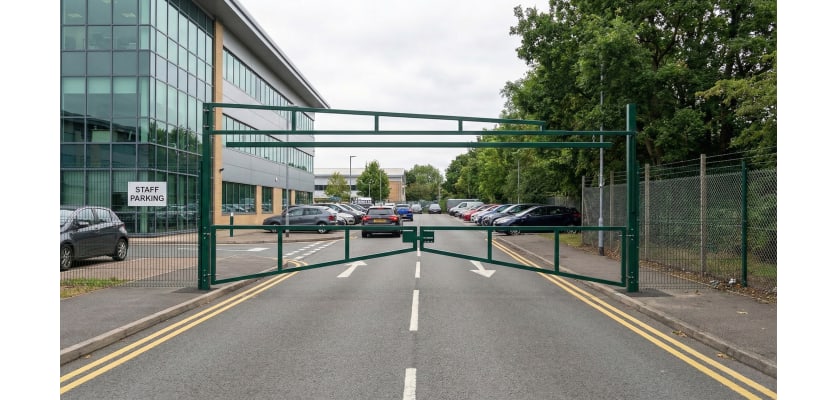

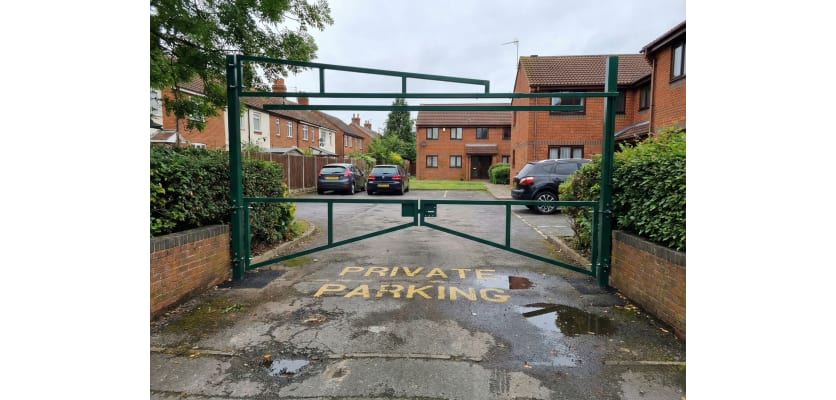

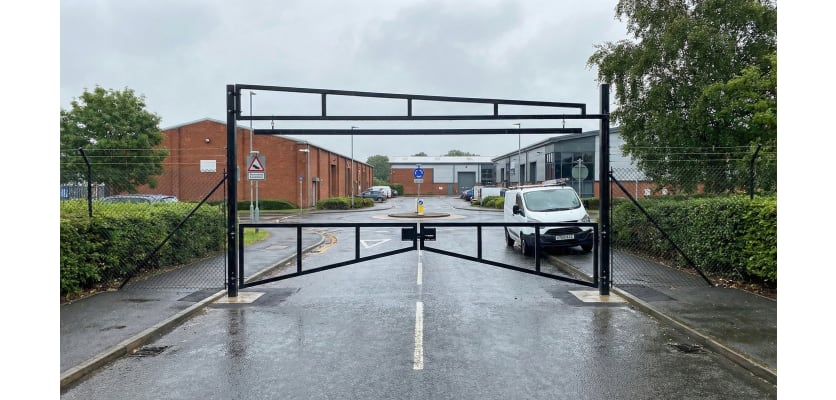

The FirstLine® 2.2m High x 4.0m Wide Double Swing Barrier with High-Level Swing Arm Kit is a comprehensive access control solution designed for high-traffic environments that require both physical security and height restriction. This robust system features a dual-leaf swing gate paired with a high-level swing arm and nudge bar, making it an ideal choice for securing industrial estates, distribution centres, and commercial yards where controlling the entry of over-height vehicles is essential.
Enhanced Visibility for HGV & Heavy Traffic
Constructed from high-quality pre-galvanised steel, this double swing gate barrier is designed to withstand heavy traffic and the tough British weather. The integrated High-Level Swing Arm Kit enhances visibility for HGV drivers seated in elevated cabs, helping to reduce the likelihood of accidental impacts on site. The galvanising process applies a durable zinc coating that resists rust and corrosion, delivering a long-lasting, low-maintenance solution.
Versatile Dual-Leaf Operation
The double-leaf configuration provides excellent flexibility for wide access points. Whether controlling a two-way haulage route or a large warehouse entrance, the two arms can be operated individually or together.
- Smooth Operation: Each leaf is supported on heavy-duty posts, ensuring a consistent and reliable swing movement.
- Ergonomic Design: Includes a vertical reach bar, enabling staff to adjust the height restrictor safely from ground level without the need for ladders.
Professional Grade Security & Stability
Security is central to the design. The barrier incorporates a Unislide double-slider padlockable gate kit alongside a blank locking plate. This modular setup makes it easy to upgrade or replace the lock kit using pre-lasered fixing points.

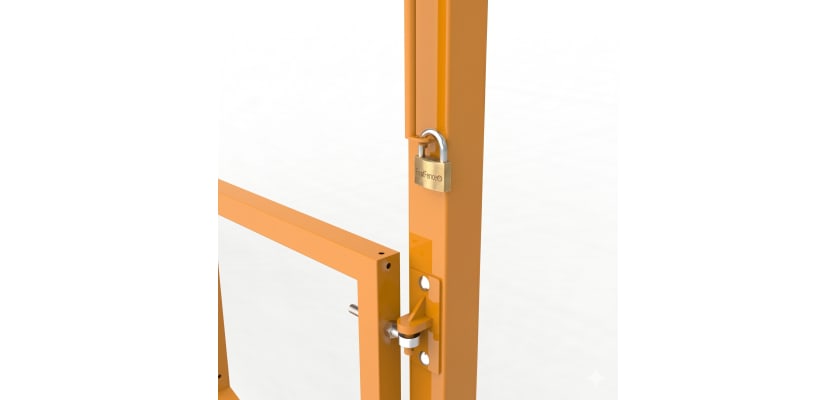

- Central Locking: A durable sliding bolt mechanism holds both leaves securely in place. A heavy-duty padlock can be added for enhanced protection.
- Precision Alignment: Adjustable gate eyes allow for accurate central alignment during installation.
Installation and Customisation
- Dig-In Ground Mounting: Best suited to new installations or locations with softer ground conditions. Posts are embedded deep into concrete foundations to provide maximum resistance to leverage. We recommend using 4 bags of Post Mix per post (sold separately).
- Bespoke Finishes: Supplied in high-visibility Safety Yellow, Emergency Red, or custom RAL colours to align with corporate branding or meet local planning requirements.
- Catch Kits: To help prevent wind damage and reduce strain on the hinges, we include catch post kits. These securely hold the gates in a fully open position during operational hours.
Ideal Applications
- Logistics & Distribution: High-level arms stop cab-height impacts in active loading bays.
- Construction & Quarries: Managers' visibility even in tough and dusty environments.
- Retail & Supermarkets: Prevents fly-tipping and unauthorised parking.
- Emergency Infrastructure: Provides wide-span access for emergency and utility vehicles.
Contact Us
For more information on the 2.2m High x 4.0m Wide Double Swing Barrier, or to discuss bespoke requirements, please contact our team. You can reach us by phone at 01283 512 111, email sales@firstfence.co.uk, or use our online chat system to speak with an expert today.
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 4.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
| Ground Clearance | 50mm |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 1.0m High x 2.0m Wide Swing Barrier Leaf [Pre-Galvanised] | 2 |
| 0.5m High x 3.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| 19mm Bolt-On Hinge Hook Kit for Gates | 4 |
| Adjustable Gate Eye [150mm] | 6 |
| Blank Locking Plate Kit [Double Leaf] | 1 |
| Unislide Double Slider Padlockable Gate Kit | 1 |
| Steel Telescopic Beam Kit [50x50x1.5mm x 1500mm] | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| 60x60mm Black Ribbed Inserts | 1 |
| 50x50mm Black Ribbed Inserts | 1 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 3500mm [Welded Lugs] | 1 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
| 1.0m Swing Barrier Catch Post | 2 |
Specifications & Downloads
| Height [To Nudge Bar] | 2.2m [Installed] |
| Height [Ground to top of Barrier] | 2.9m |
| Total Post Length | 3900mm [1000mm in ground] |
| Access Width | 4.0m |
| Post Types | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated [PPC] |
| Colours | Green, Black, Blue, Red, Grey or Yellow |
| Ground Clearance | 50mm |
What's Included
| Name | Quantity |
|---|---|
| 2.2m High Swing Barrier Dig In Hinge Post [100x100 box, Pre-Galvanised] | 1 |
| 2.2m High Swing Barrier Dig In Receiver Post [100x100 box, Pre-Galvanised] | 1 |
| 1.0m High x 2.0m Wide Swing Barrier Leaf [Pre-Galvanised] | 2 |
| 0.5m High x 3.0m Wide Height Barrier Leaf [Pre-Galvanised] | 1 |
| Lock Kit for Height Restrictor Swing Barrier | 1 |
| 19mm Bolt-On Hinge Hook Kit for Gates | 4 |
| Adjustable Gate Eye [150mm] | 6 |
| Blank Locking Plate Kit [Double Leaf] | 1 |
| Unislide Double Slider Padlockable Gate Kit | 1 |
| Steel Telescopic Beam Kit [50x50x1.5mm x 1500mm] | 1 |
| 100x100mm Black Ribbed Inserts | 2 |
| 60x60mm Black Ribbed Inserts | 1 |
| 50x50mm Black Ribbed Inserts | 1 |
| Height Restrictor Nudge Bar Fixings Kit | 1 |
| Nudge Bar 80x40 x 3500mm [Welded Lugs] | 1 |
| Catch Kit for High Level Swing Arm with Nudge Bar | 1 |
| 1.0m Swing Barrier Catch Post | 2 |
