Height | 800mm |
Length | 680mm |
Width | 500mm |
Weight | [When Empty: 12kg] [When Full: 167kg] |
Fill Capacity | 155L |
Material | UV MDPE |
Colour | Red & White |
Max Angle | 35 degrees |

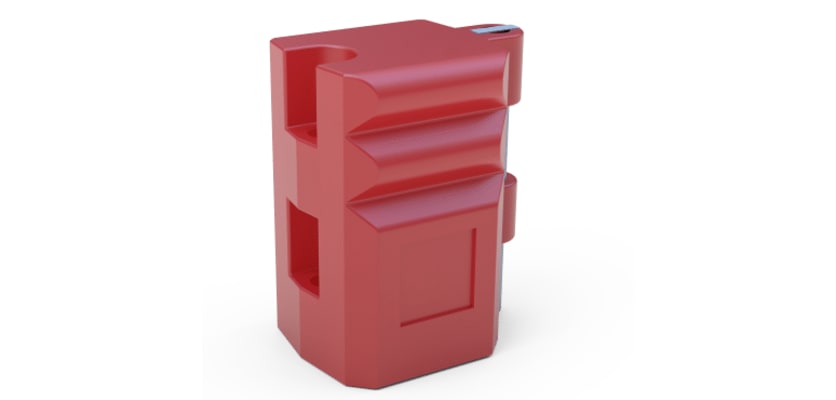

The RB22 Crash Barrier Bend Section is a crucial component within the RB22 temporary road safety system. Designed to seamlessly integrate with straight RB22 barrier units, the bend section plays a vital role in effectively directing traffic flow and providing a safe, controlled environment around construction zones, road works, and pedestrian walkways.
The RB22 system is renowned for its ability to withstand impacts from vehicles traveling up to 50mph. This impressive feat is achieved through a combination of robust construction and a strategic filling mechanism.
RB22 barriers are designed to be filled with water, adding significant weight and stability to the system. A filled bend section acts as a buffer, absorbing the impact energy and bringing the vehicle to a controlled stop. This not only minimises damage to the vehicle but also protects workers, pedestrians, and nearby infrastructure.
The RB22 Bend Section finds application in a wide range of scenarios:
The primary function of the RB22 Bend Section is to create smooth curves in the barrier line. This allows for the creation of designated traffic lanes, guiding motorists around work zones and preventing them from entering unsafe areas. The bend sections can be incorporated into the barrier system at various angles to cater to different roadway configurations. This flexibility ensures a high degree of adaptability for various roadside scenarios.
The beauty of the RB22 system lies in its modularity. The bend sections seamlessly interlock with straight barrier units, fostering a strong and continuous safety wall. This modular design enables the creation of barrier configurations of varying lengths and curvatures, perfectly suited to the specific needs of a work zone.

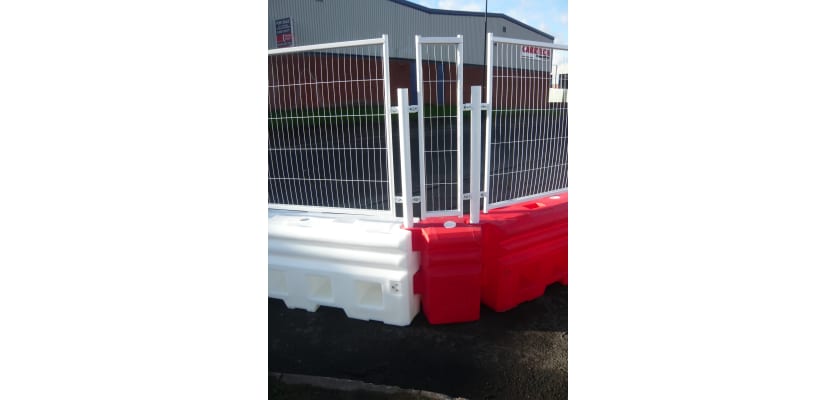

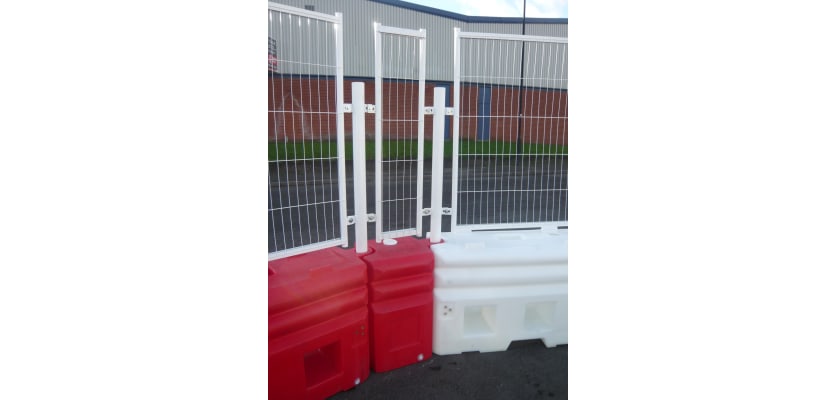

Furthermore, the RB22 system is compatible with additional components that enhance safety and functionality. Mesh panels can be attached to the barriers, providing visual screening and preventing debris from entering the work area. Hoarding panels can also be integrated, creating a solid wall that offers additional privacy or can be used for displaying signage and important information for motorists.
The RB22 Bend Section is a lightweight unit, making it easy to transport and maneuver during installation. While professional guidance is recommended for larger projects, the interlocking mechanism allows for a relatively simple and efficient setup process. Once filled with water, the RB22 bend sections become a formidable safety barrier, ready to safeguard pedestrians, workers, and the surrounding environment.
The Crash Barrier Bend Section for the RB22 system is an essential component for creating a safe and efficient temporary road environment. By offering smooth transitions, increased versatility, and robust construction, Bend Sections play a vital role in ensuring the safety of workers, pedestrians, and drivers alike.
