CP.BISONOTI In-Built Control Panel for BISON Motors
Product Description

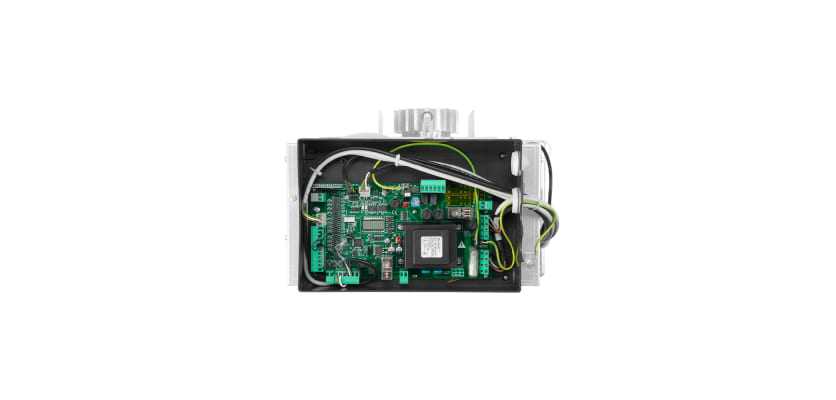

CP.BISONOTI In-Built Control Panel for BISON Motors
The system features an integrated LCD display and includes a 433.92 MHz 64-code radio receiver that supports three encoding systems: Advanced Rolling Code, Rolling Code, and Fixed Code. It also comes with removable terminal boards, providing options for automatic, semi-automatic, and deadman’s logic to ensure flexible operation.
The system includes an encoder input for obstacle detection, along with motor limit switch inputs for accurate control. Users can easily access functions for open, close, pedestrian, step-by-step, and stop. It supports inputs for four pairs of photocells, which can be programmed to activate during both the opening-closing and closing phases, featuring PHOTO TEST logic. Additionally, there are inputs for N.C. or 8K2 sensitive edges and a safety sensor.
The design is preconfigured for inverter connection and includes an output for a gate open indicator. Additionally, it has a configurable output for a service light, area light, or second radio channel, as well as a photocell testing output. The system supports automatic setting of operating parameters and electronic motor torque adjustment, with adjustable slow-down systems that enhance safety.
Electronic braking ensures a precise stop, even with heavy doors, and the Advantouch system facilitates parameter configuration and management of radio transmitters. The system keeps track of the number of manoeuvres and includes a programming access password and maintenance warning functionality.
First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as palisade, mesh, railings, and specialised or custom options.
Here to help
If you need any assistance with this product range, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
Specifications & Downloads
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
