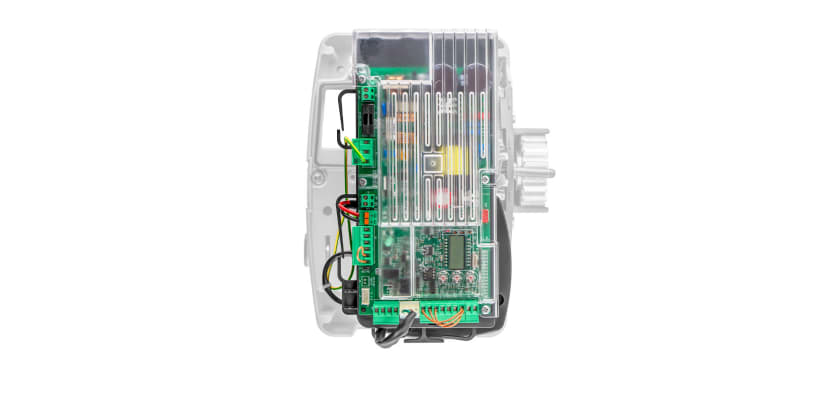

CP.B24-D120 In-Built Control Panel for BULL424SE and BULL624SE
Product Description
CP.B24-D120 In-Built Control Panel for BULL424SE and BULL624SE
The CP.B24-D120 In-Built Control Panel is designed specifically for use with BULL424SE and BULL624SE sliding gate motors, providing reliable control, configuration and safety management for automated sliding gates.
It is suitable for residential, commercial and industrial applications where convenient and controlled vehicle access is required.
Features & Functions
The CP.B24-D120 includes an integrated LCD and built-in 433.92 MHz radio receiver with 2048 codes and ARC coding.
Key functions include:
- Automatic, semi-automatic and Deadman operating logic
- Motor limit switch inputs
- Opening and closing photocell inputs
- N.C. or 8K2 sensitive edge input
- Configurable pedestrian access input
- Adjustable opening and closing speeds
- Electronic torque adjustment
- Anti-crushing protection through amperometric detection
- Virtual encoder and adjustable slow-downs
- Built-in energy-saving ESA+ system
- Autoset function for operating parameters
- Built-in battery charger compatible with DA.BT2 and DA.BT6 batteries
Customisable Outputs
The control panel features configurable outputs for functions including:
- Open gate signal light
- Courtesy light
- Zone light
- Second radio channel
- Photocell testing
- Flashing light
- Alarm contact
It also includes a dedicated output for connecting a flashing light.
The system can be configured to operate opposed sliding gates using the optional SIS synchronisation board and can support KNX connectivity via the optional X.BE board.
Setup & Diagnostics
The CP.B24-D120 provides comprehensive configuration and diagnostics. Using the BeUP app with the optional PRO.UP accessory, users can manage parameters, carry out diagnostics and update the system firmware.
The Advantouch system also allows easy parameter configuration and radio transmitter management. Additional functions include manoeuvre counting, programming access passwords and maintenance warnings.
Gate Automation Solutions
First Fence supplies a wide range of gate automation products and accessories, along with compatible gate systems including palisade gates, mesh gates, railing gates, and specialist and custom gates.
Contact Us
Need help choosing the right gate automation equipment? Our sales team can provide advice and technical information to help you find the right solution. Call 01283 512 111 or speak to us via our online live chat.
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
