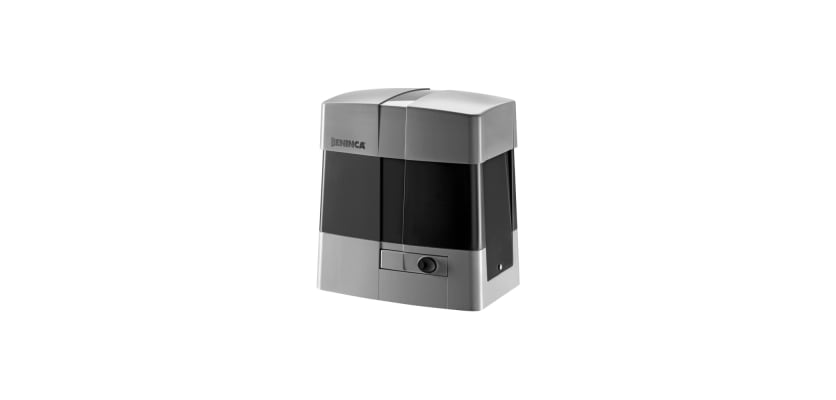

BULL1524 Sliding Gate Motor - Up to 1500kg
Product Description
BULL1524 Sliding Gate Motor - Up to 1500kg
Sliding gate motors are tools designed to automate the opening and closing of sliding gates. Widely embraced in residential, commercial, and industrial environments, they offer unmatched convenience, security, and user-friendliness. Moreover, they enhance residential security by regulating access to driveways and entrances.
Automated gates, powered by motors, elevate security measures by limiting entry to unauthorised individuals and vehicles. They can be seamlessly integrated with extra functionalities like intercom systems, keypad access, or remote monitoring capabilities for added convenience and surveillance.
High-quality sliding gate motors are built to withstand harsh weather conditions and heavy use, ensuring long-term durability and reliability with minimal maintenance requirements.
The BULL1524 Sliding Gate Motor is ideal for domestic and light commercial sliding gates up to 1500kg.
Features
The BULL1524 Sliding Gate Motor is a 24 Vdc gear motor designed for heavy-duty use, featuring an integrated control unit and virtual encoder.
Ideal for intensive applications such as condominiums, it includes an anti-crushing system with amperometric obstacle detection.
The control unit calculates the motor's position by measuring instantaneous speed (virtual encoder), enabling effective management of slowing-down phases and movement tracking (STC system). Additionally, it manages torque relative to the gate's position, ensuring maximum safety.
Fast and easy to install, the self-programming function allows for immediate activation after installation using the radio transmitter.
It also supports operation of opposing sliding gates with the SIS accessory, and in the event of a power failure, it can work with the built-in battery charger accessory.
A metal release lever is included for added convenience.
- First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as palisade, mesh, railings, and specialised or custom options.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Dimensions | 340mm x 316mm x 300mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 1.7 A |
| Maximum Thrust | 944 N |
| Opening Speed | 11.7 m/min |
| Duty Cycle | 99% |
| Protection Level | IP44 |
| Inbuilt Encoder | Virtual |
| Operating Temperature | -20°C/+50°C |
| Max Gate Weight | 1500kg |
| Gate Usage | Light Commercial |
| Compatible Control Panel | In-built |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| CP.B24-D120 [Control Panel] | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Dimensions | 340mm x 316mm x 300mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 1.7 A |
| Maximum Thrust | 944 N |
| Opening Speed | 11.7 m/min |
| Duty Cycle | 99% |
| Protection Level | IP44 |
| Inbuilt Encoder | Virtual |
| Operating Temperature | -20°C/+50°C |
| Max Gate Weight | 1500kg |
| Gate Usage | Light Commercial |
| Compatible Control Panel | In-built |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| CP.B24-D120 [Control Panel] | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
