BOB5024E Above Ground Swing Gate Operator
Product Description
BOB5024E Above Ground Swing Gate Operator
Control the opening and closing of your gate with the BOB5024E Above Ground Swing Gate Operator. Also known as an automated gate operator, these devices allow users to safely open and close swing gates. These operators are either mechanical or electromechanical systems.
They are able to securely and precisely open and close gates in a controlled fashion. These operators find application across diverse environments like residential, commercial, and industrial settings, serving to boost security, convenience, and accessibility.

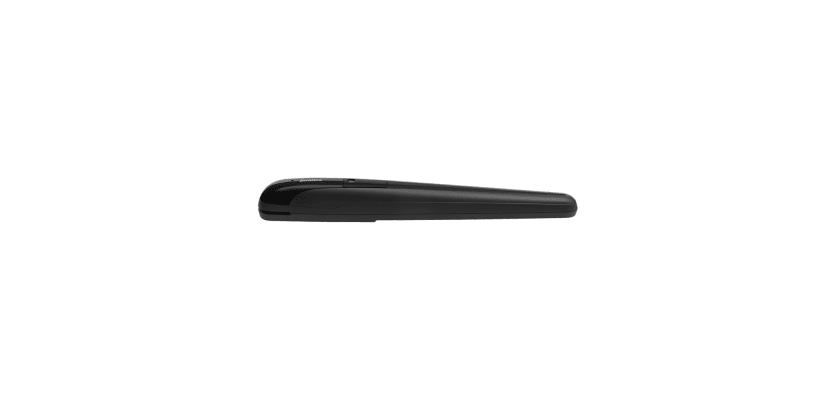

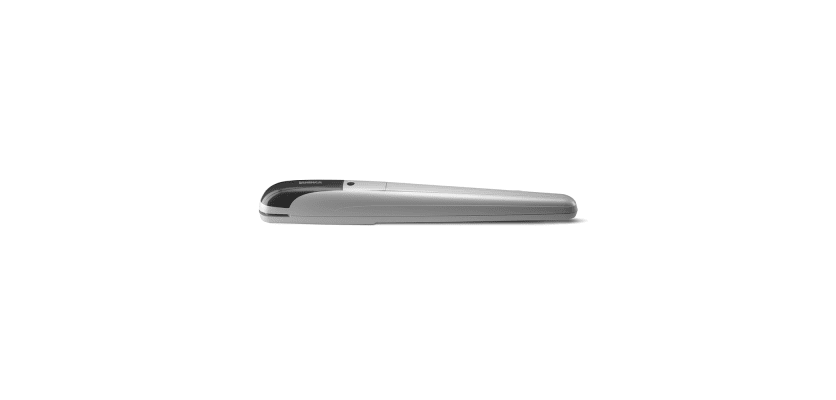

The BOB5024E Swing Gate Automation Operator consists of a 24 Vdc worm screw post-mounted electromechanical ram. This is suitable for gate leaves up to 5m, with a built-in stop and encoder.
These geared motors are reliable, low volume, and quick to install. These operators feature two adjustable mechanical stops for opening and closing.
The BOB5024E encoder device collision or crushing accidents. This is achieved with an amperometric sensor obstacle detection system. This system detects objects or people who may be in the path of the gate as it opens and closes and stops the process.
Features
- Irreversible 24 Vdc electromechanical geared motor for intensive use.
- The encoder device ensures maximum safety and precision in the gate-moving phases.
- Amperometric sensor obstacle detection system to reduce the risk of accident or injury.
- Optional battery powered operation.
- Reliable, quiet, and quick-to-install geared motor.
- Rolled ball screws Ø 20 mm.
- Easy access release from above.
- Suitable for gate leaves up to 5m.
First Fence offer a wide range of gate automation solutions. A huge range of access gates, including palisade, mesh, railings, and specialist and custom offerings is also available.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. You can reach the team by phone on 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 980mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 6.7 A |
| Maximum Thrust | 2200 N |
| Opening Time | 21 Seconds |
| Duty Cycle | 99% |
| Standard Stroke | 455mm |
| Maximum Stroke | 520mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 5.0m |
| Wind Loading | 50% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Weld on |
| Compatible Control Panels | Brainy24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
Specifications & Downloads
| Length | 980mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 6.7 A |
| Maximum Thrust | 2200 N |
| Opening Time | 21 Seconds |
| Duty Cycle | 99% |
| Standard Stroke | 455mm |
| Maximum Stroke | 520mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 5.0m |
| Wind Loading | 50% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Weld on |
| Compatible Control Panels | Brainy24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
