BOB3024E Above Ground Swing Gate Operator
Product Description

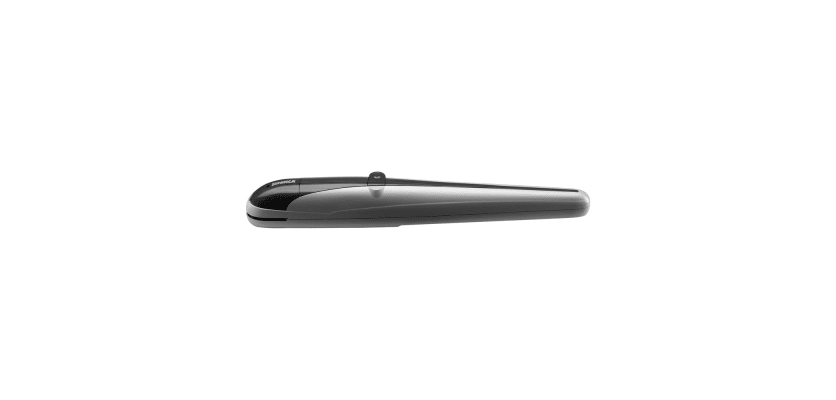

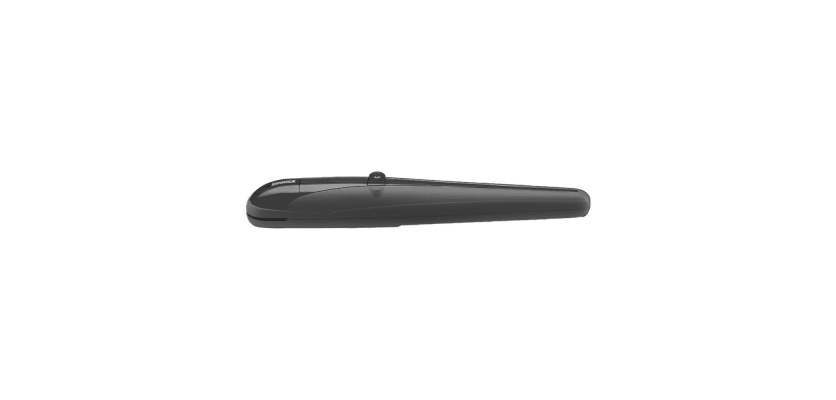

BOB3024E Above Ground Swing Gate Operator
Automated gate operators, or gate openers, safely and precisely open and close an access gate. are mechanical or electromechanical systems engineered to securely and precisely open and close gates. They find application across diverse environments, including residential, commercial, and industrial sectors, where they serve to augment security, convenience, and accessibility.
The BOB3024E Swing Gate Operator is a 24 Vdc Worm Drive Ram designed for gate leaves measuring up to 3m. It features built-in stops and an encoder for enhanced functionality.
This quick and easy to install motor is a reliable, safe and quiet solution. This geared motor features two easily adjustable for closing or opening.
The encoder device offers maximum safety and precision while the gate moves. To prevent accidents, an amperometric sensor obstacle detection system is used to avoid crushing.
Features
The BOB3024E is a non-reversible 24 Vdc electromechanical motor designed for intensive use, featuring an integrated encoder.
Its encoder ensures maximum precision and safety during gate movement.
Equipped with an amperometric sensor for obstacle detection, it prevents crushing accidents.
Optional battery-powered operation is available for added convenience.
This motor is reliable, quiet, and easy to install, with two variable mechanical stops for precise control during opening and closing.
It includes 20 mm diameter rolled ball screws and offers simple top-access release for maintenance.
First Fence offers a wide selection of gate automation products and accessories. We offer a range of access gates. These include palisade, mesh, railings, and specialist and custom offerings to suit your needs.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. Our team can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
Specifications & Downloads
| Length | 796mm |
| Weight | 20.7kg |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 5.5 A |
| Maximum Thrust | 1800 N |
| Opening Time | 21 Seconds |
| Duty Cycle | 99% |
| Standard Stroke | 270mm |
| Maximum Stroke | 325mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 3.0m |
| Wind Loading | 25% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Weld-on |
| Compatible Control Panel | Brainy24 |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
