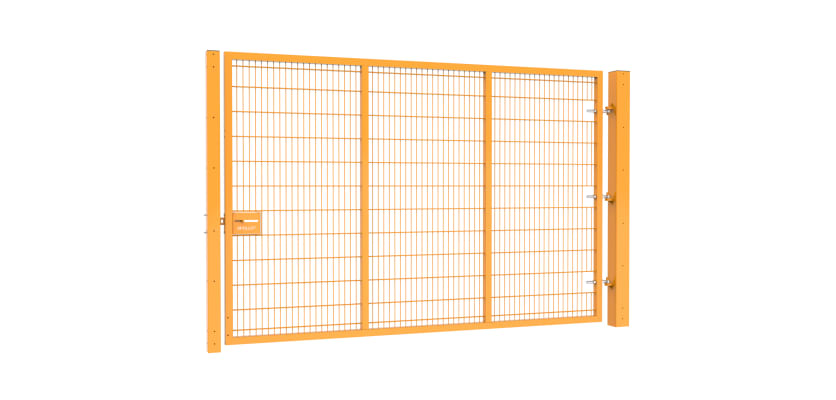

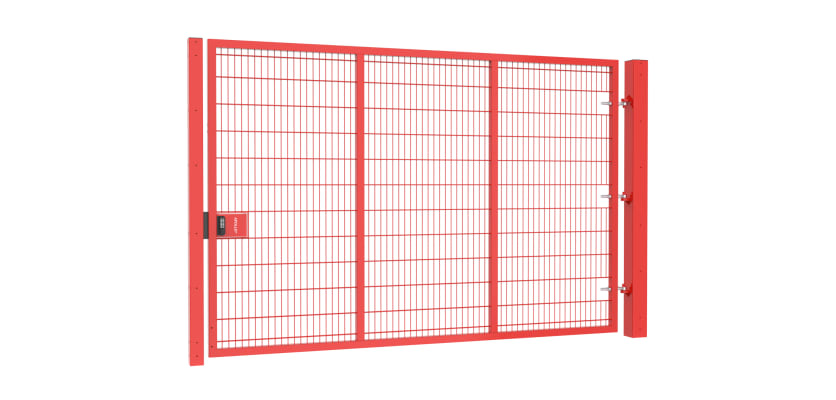

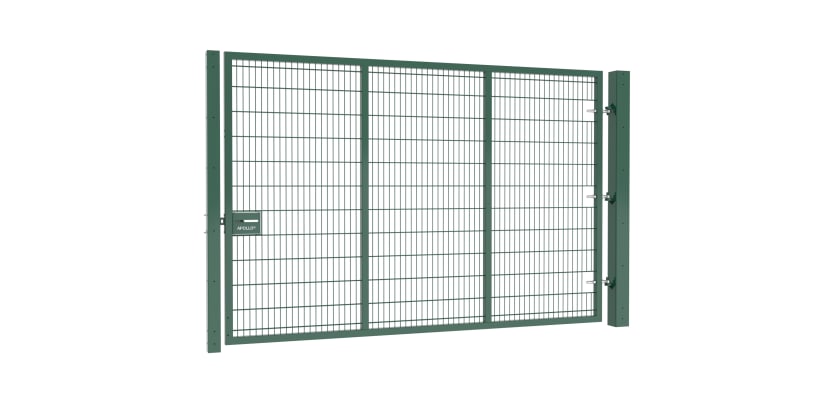

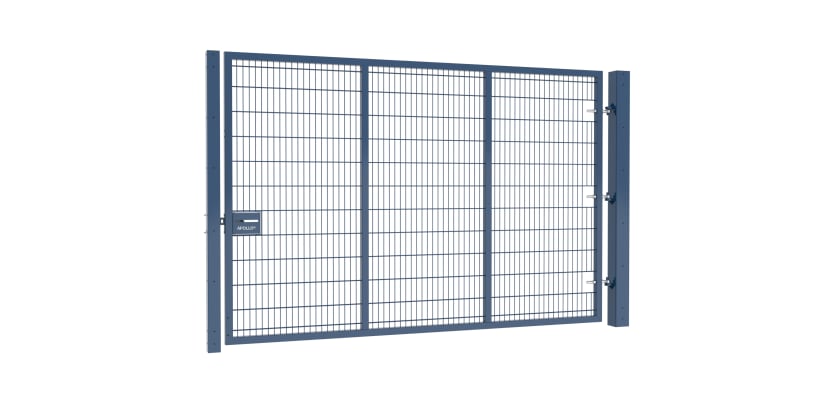

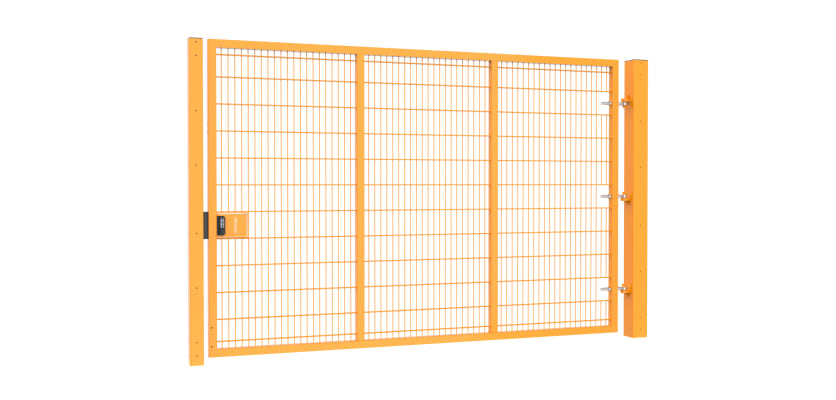

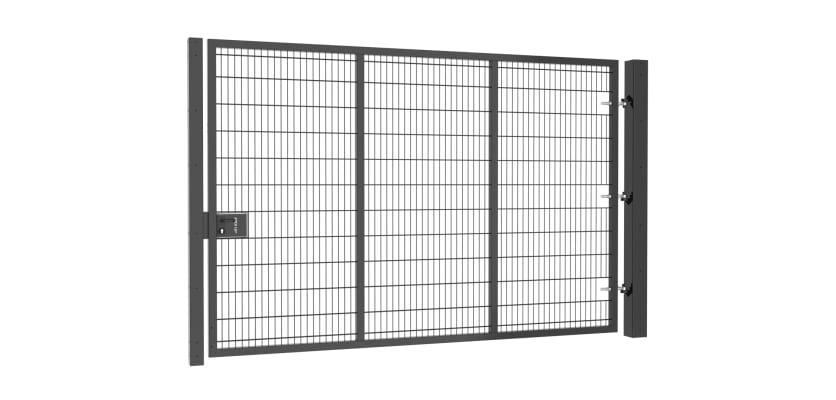

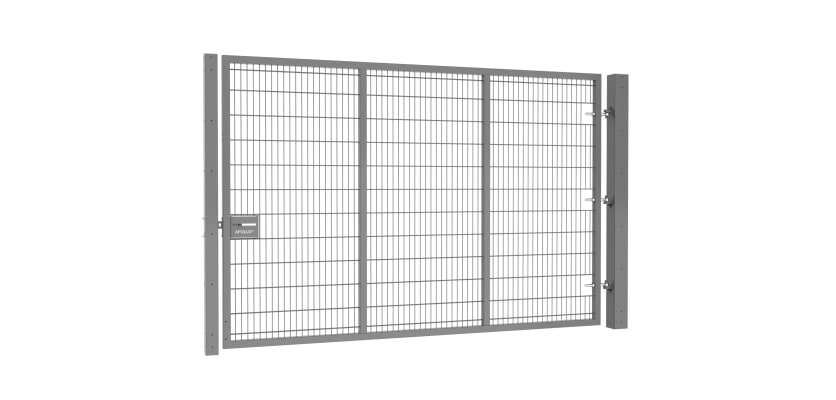

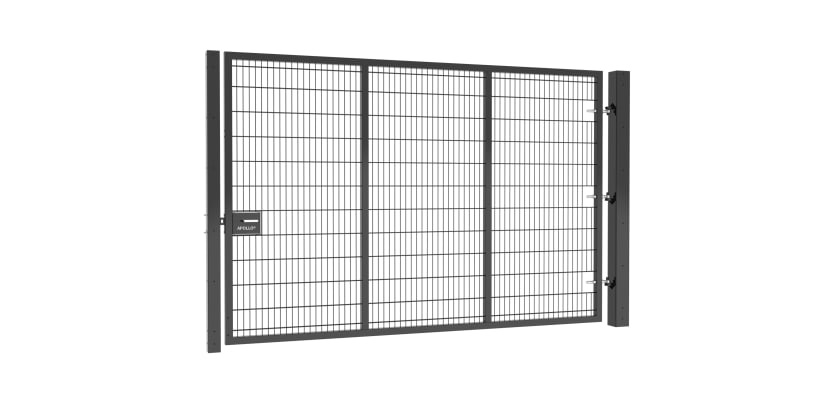

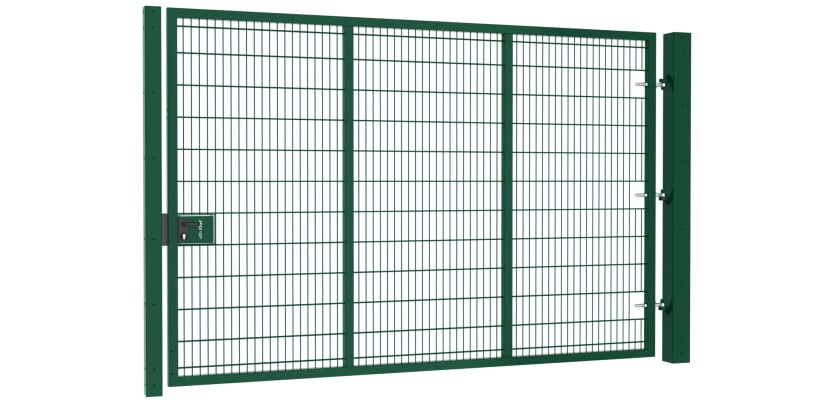

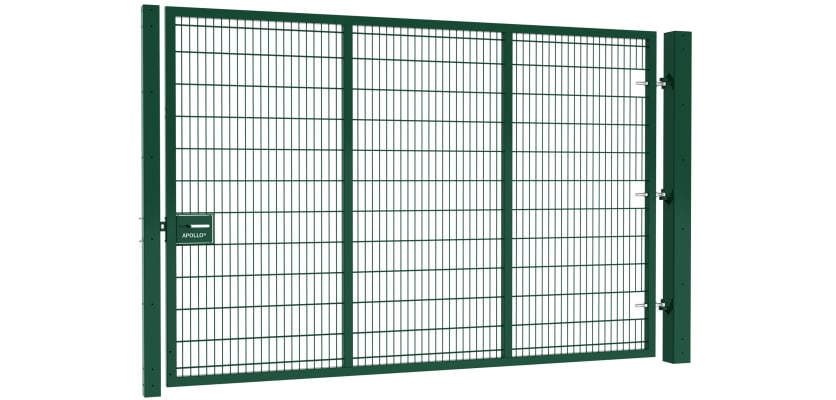

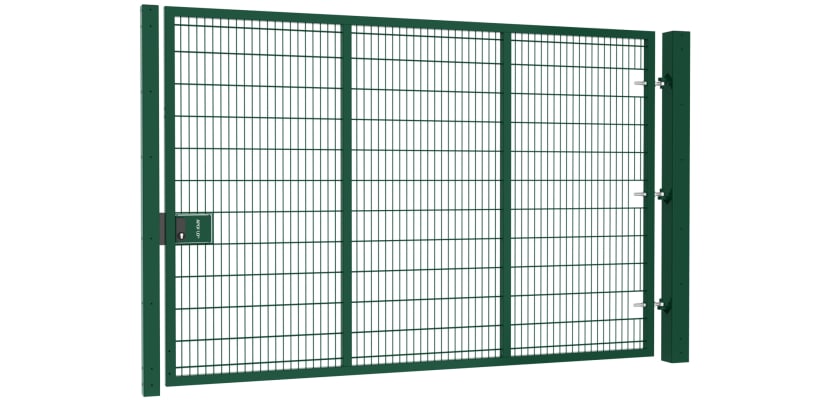

Apollo® 3.0m High x 5.0m Wide 868 Twin Mesh Single Leaf Gate Kit

Engineered for maximum security and durability, this robust Apollo gate offers an ideal access solution for low to medium security environments requiring wide clearance. With a generous 5.0m width and a tall 3.0m profile, this single leaf gate is well-suited for controlling both vehicle and equipment movement while maintaining consistent boundary protection.

Key Features of Mesh Double Leaf Gates

868 Twin Mesh Construction
Manufactured using a double wire mesh system with 6mm vertical wires and twin 8mm horizontal wires, this gate delivers exceptional strength, rigidity, and resistance to cutting or vandalism.

Heavy-Duty Height and Width
At 3.0m high and 5.0m wide, the gate provides enhanced deterrence against climbing and allows large vehicles, trailers, or equipment to pass through easily.

Modular Sliding Latch System
Fitted with a Unislide Single Slider Padlockable Gate Kit as standard, the gate can also be upgraded with a digital keypad lock or a quick exit locking system for enhanced control.

Universal Hanging
Designed for left-hand or right-hand hanging, allowing flexibility during installation and integration with existing site layouts.

High-Quality Coating
Pre-galvanised to BS EN 10346 and powder-coated to BS 13438 for outstanding corrosion resistance, even in harsh outdoor environments.

Auto Locking Drop Bolt
Provides added stability and secure closure, particularly important for wide gate spans.

Corner Reinforcement
Mitred corners in the frame provide additional structural strength and long-term durability.

Enhanced Safety Three-Hinge System                                                                                                                                                                                                                                                                                                                  Fully compliant with BS EN 12604, our gates feature three hinges to ensure that even if one hinge were to fail, the gate leaf will not detach or fall, providing critical protection and peace of mind.

Applications

The Apollo 3.0m High x 5.0m Wide 868 Twin Mesh Single Leaf Gate Kit is well-suited for a wide range of low to medium security environments where secure and wide access is essential. Its height and robust construction make it a reliable choice for industrial estates, factories, and logistics yards where the movement of large vehicles or machinery is frequent. Educational institutions, such as schools and colleges, also benefit from this gate’s visibility and strength, helping to manage foot and vehicular access while maintaining a secure boundary.

This gate is also ideal for public parks and recreational venues, offering an unobtrusive security solution that blends well with open surroundings. Sports facilities and stadium perimeters often use this type of gate for controlled access to playing fields and service areas. In addition, it is commonly used at utility sites, depots, and service yards where a dependable, wide entry point is required without compromising on security or durability.

Compatibility

The Apollo gate has been designed to work seamlessly with a range of mesh fencing systems, making it highly adaptable to both new and existing installations. It is fully compatible with 868 Twin Mesh fencing, matching the same robust construction and visual style. It also integrates effectively with 656 Twin Mesh, providing a slightly lighter alternative without compromising on aesthetics.

In addition, the gate can be used alongside V Mesh fencing, which offers a more economical solution while retaining adequate strength for low-security areas. It is also compatible with Safe Top Mesh, making it a suitable option for locations where child safety and anti-climb features are a priority, such as schools and playgrounds. This wide compatibility ensures that the Apollo gate can be added to most mesh fencing systems with ease, providing both design consistency and reliable performance across a variety of settings.

What’s Included

Your kit includes everything you need for standard installation, excluding ground fixings such as Post Mix or Anchor Bolts:

• 1 x Apollo 868 Mesh Gate Leaf

• 1 x Catch Gate Post

• 1 x Hinge Gate Post

• 3 x Adjustable Gate Eyes

• 2 x Ribbed Inserts for Gate Frame

• 2 x Ribbed Inserts for Posts

• 1 x Unislide Single Slider Padlockable Gate Kit

• 1 x Apollo Plate Kit

• 1 x Auto Locking Drop Bolt
