Height Above Ground | 1800mm |
Access Width | 4000mm |
Total Width | 4430mm |
Hinge Post Size | 100mm x 100mm |
Hinge Gap | 100mm |
Leaf Gap | 30mm |
Gate Hanging Side | Universally Handed |
Thickness of Wires | 868 (8mm and 6mm) |
Post Type | Square Hollow Section |
Gate Type | Double Leaf Gate |
Material | Pre-Galvanised Steel |
Finish | Powder Coated |
PPC Colours | Green & Black as Standard, Others Available On Request |
Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
Name | Quantity |
---|---|
Apollo 868 Mesh Gate Leaf | 2 |
Hinge Gate Post | 2 |
Adjustable Gate Eyes | 4 |
Ribbed Inserts for Posts | 2 |
Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
Apollo Plate Kit | 1 |
Auto Locking Drop Bolt | 2 |

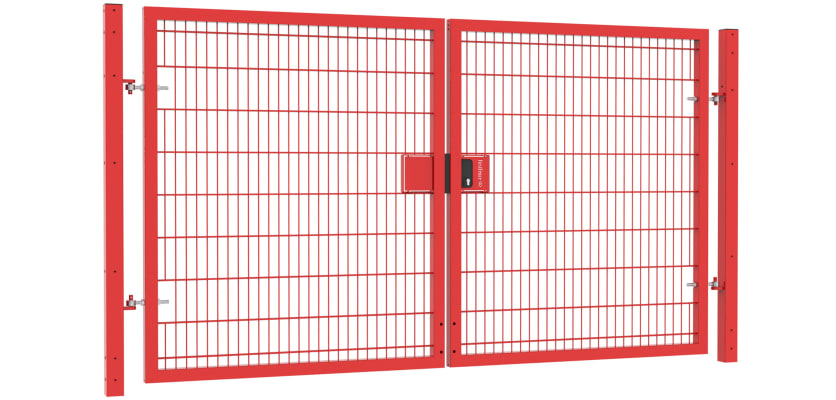

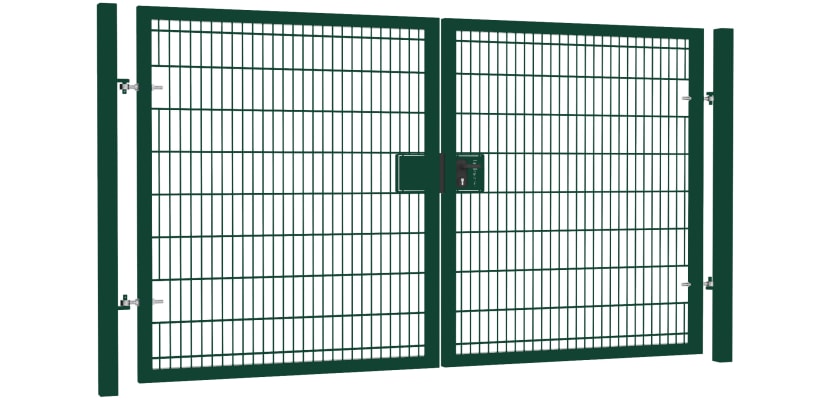

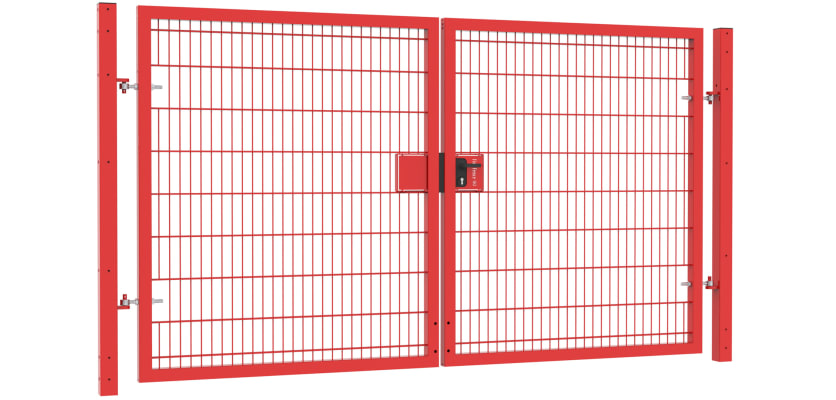

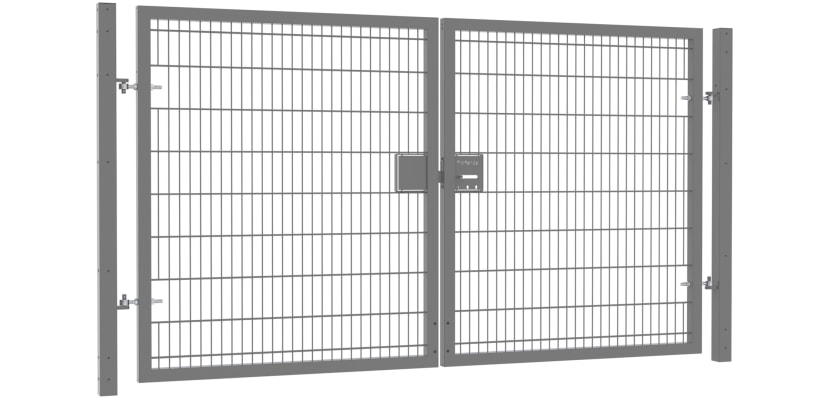

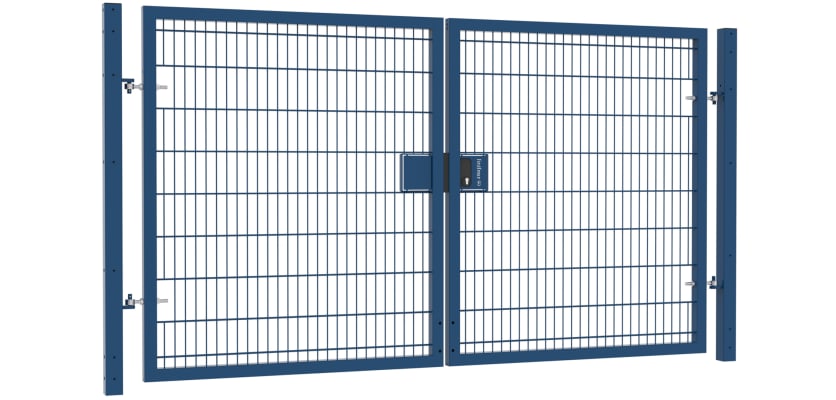

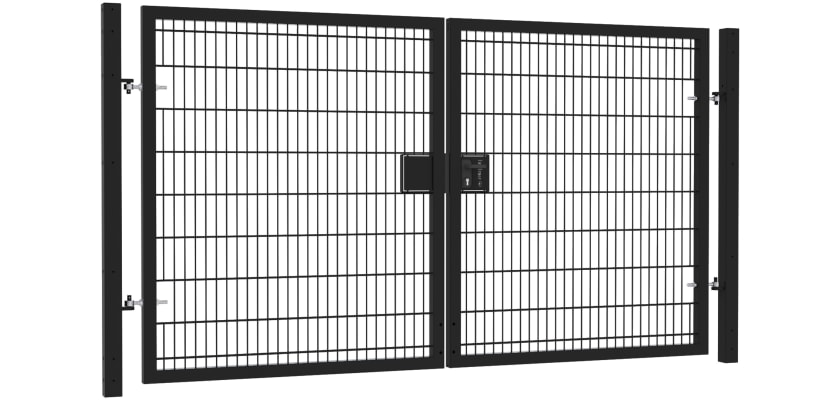

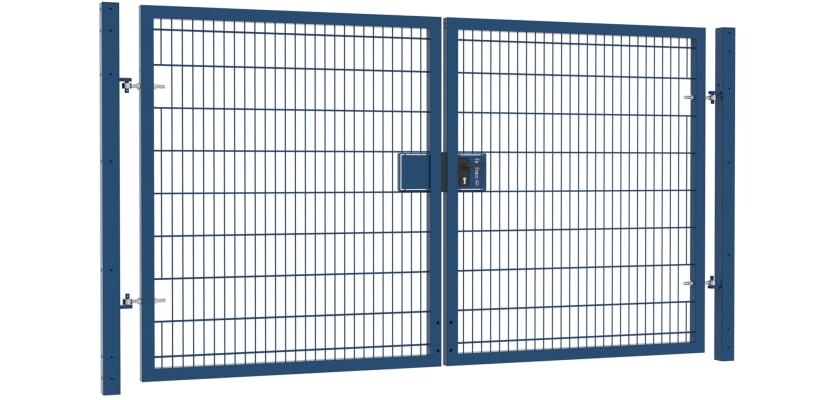

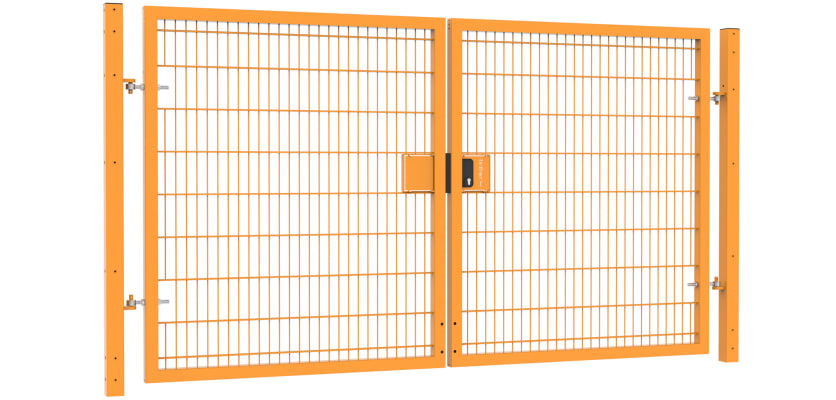

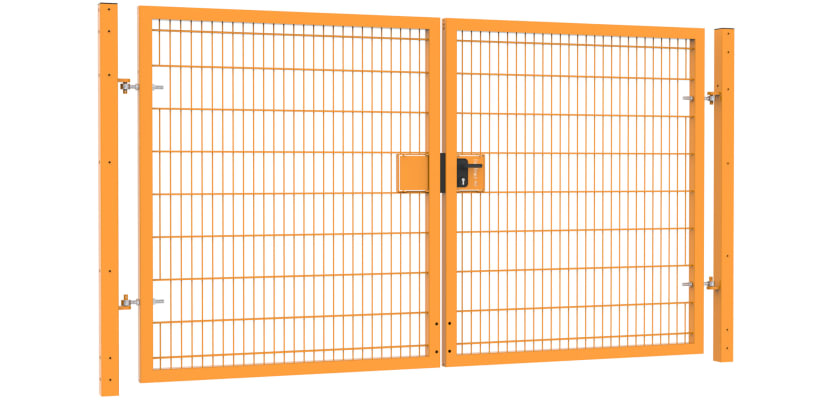

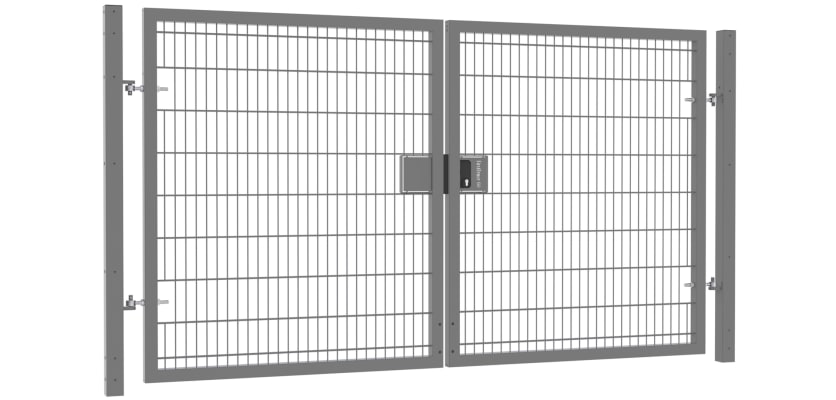

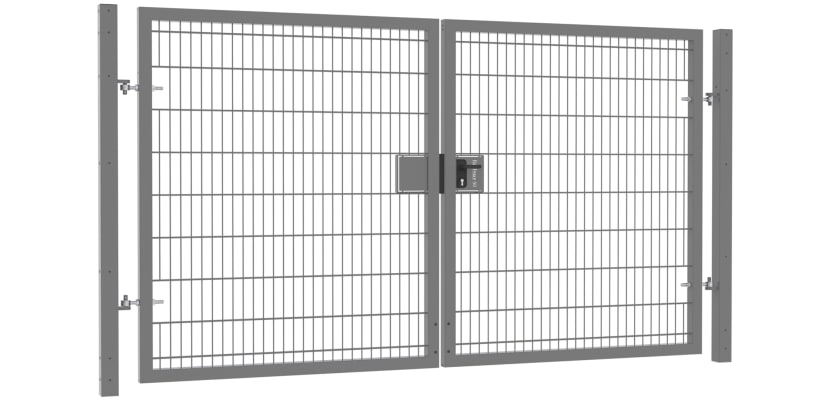

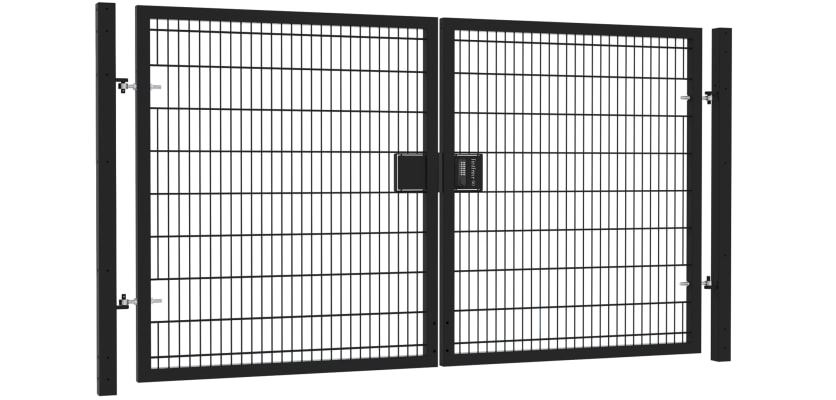

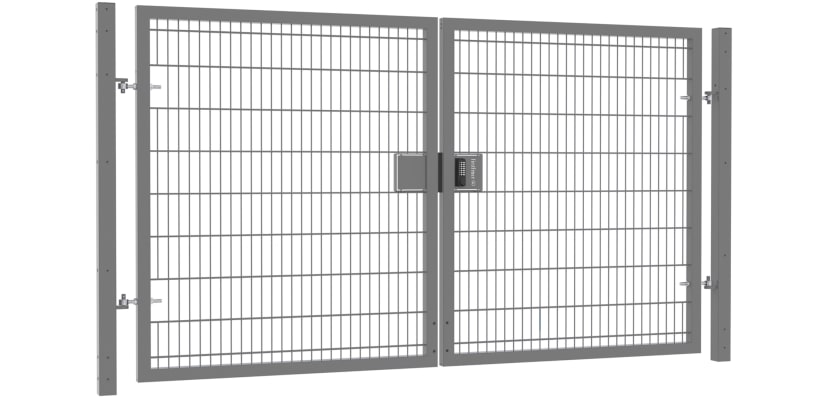

The Apollo 1.8m High x 4.0m Wide 868 Twin Mesh Double Leaf Gate Kit is a premium solution for creating secure access within a mesh fencing system. Designed for locations that demand both strength and subtle aesthetics, this gate is ideal for schools, public parks, commercial facilities, sports venues, and industrial sites. With a balance of functionality, visibility, and security, it’s suited for both pedestrian and light vehicle entry.
This double leaf gate stands at 1.8 metres high and offers a combined clear opening of 4.0 metres, with each gate leaf measuring 2.0 metres wide. The twin mesh design features 6mm vertical and 8mm horizontal steel wires, forming a robust anti-climb and anti-cut barrier that withstands impact, tampering, and environmental wear. The open mesh format ensures clear visibility through the gate—an important factor for public safety, surveillance, and aesthetics.
Apollo gates are known for their professional engineering and durability. The gate frame includes mitred corners that reinforce the structure while delivering a clean, modern finish. This gate kit comes equipped with a sliding latch, which can be padlocked for basic security, and is also compatible with digital security locks and quick-exit systems, making it suitable for controlled-access sites.
Each gate leaf can be installed as either left-hand or right-hand hung, offering flexibility for various site layouts. The included drop bolts allow you to secure the gate in the open or closed position, providing additional stability—especially useful in areas subject to wind or frequent use. Whether you're managing foot traffic, allowing service vehicles through, or securing a perimeter, this gate kit is built to adapt to your access requirements.
The Apollo 868 mesh gate is constructed from pre-galvanised steel to BS EN 10346 standards, ensuring long-term protection against rust and corrosion. It is then powder coated to BS 13438, which adds another layer of defence and enhances the gate’s appearance. A wide range of RAL colours is available to suit your site’s branding or surroundings, with custom colours also offered by request.
Designed to work seamlessly with a wide range of fencing systems, this gate is compatible with 868 twin wire mesh, 656 mesh, V mesh, and other industry-standard panel systems. Whether you’re completing a new perimeter or upgrading an existing setup, integration is straightforward and secure.
The gate is available with either dig-in posts for soft ground installations or bolt-down posts for solid surfaces like concrete. The kit includes two gate leaves, two gate posts, a sliding latch, drop bolts, ribbed inserts for the frame and posts, and adjustable gate eyes. Please note that post mix or ground anchor bolts are not included and should be ordered separately based on your installation method.
With its combination of strength, adaptability, and clean design, the Apollo 1.8m High x 4.0m Wide Twin Mesh Double Leaf Gate Kit provides the ideal access control solution for a wide range of applications. It’s built to last, designed to look good, and ready to integrate into your mesh fencing system with ease.
