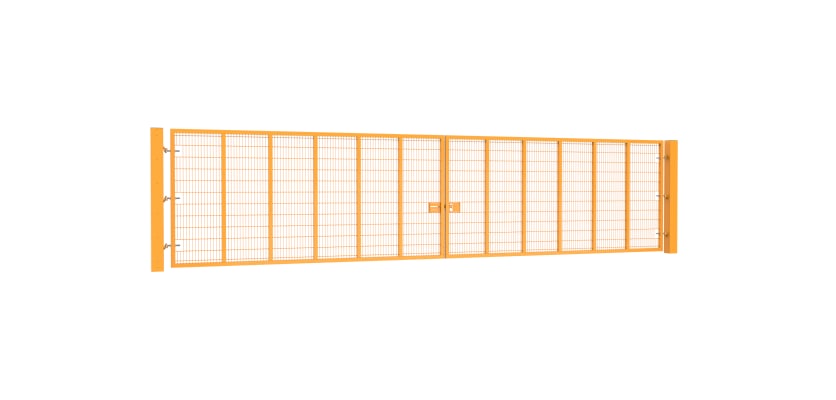

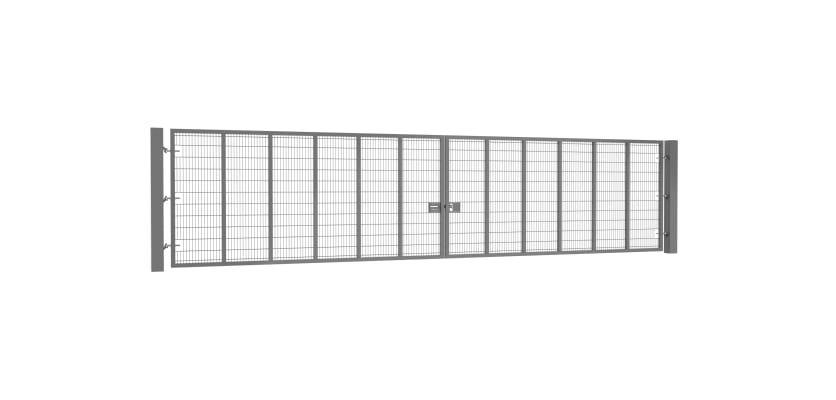

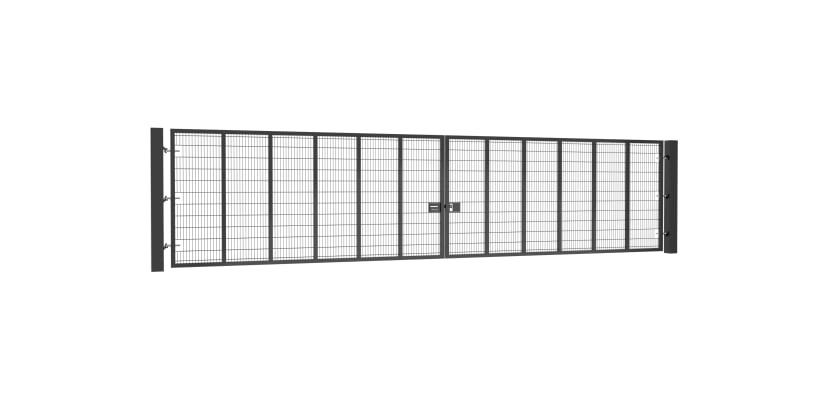

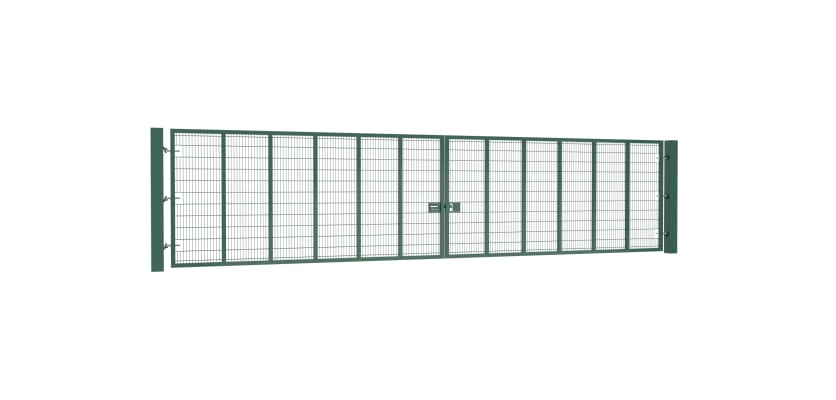

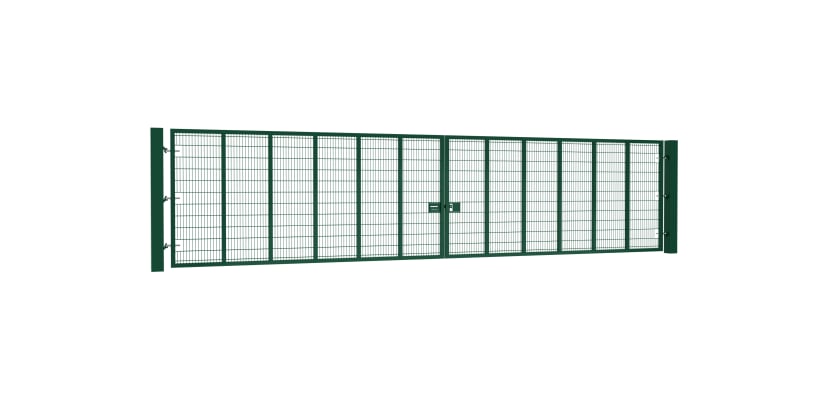

Apollo® 1.2m High x 10.0m Wide 868 Twin Mesh Double Leaf Gate Kit
Product Description
Apollo® 1.2m High x 10.0m Wide 868 Twin Mesh Double Leaf Gate Kit
The Apollo 1.2m High x 10.0m Wide 868 Twin Mesh Double Leaf Gate Kit offers a secure and reliable access solution for wide entry points across a range of commercial, industrial, and public spaces. Constructed with durability and long-term performance in mind, this gate system is ideal for low to medium-security applications where visibility, strength, and adaptability are crucial.
Manufactured from robust steel and designed using 868 twin mesh, the gate features a rigid panel construction comprising 6mm vertical wires that cross over twin 8mm horizontal wires. This layout forms a tight mesh pattern that offers excellent visibility while effectively deterring intrusion. The design makes the gate very difficult to climb or cut through, enhancing perimeter protection without compromising the openness required for surveillance or safety.
Key Applications
- Schools and Educational Facilities: Manage access points into school grounds and sports courts securely.
- Public Parks and Recreational Areas: Maintain safety and visual openness in community settings.
- Industrial Units and Warehouses: Provide a clear and secure entrance for staff and vehicle access.
- Sports Complexes: Allow safe and regulated access for teams, vehicles, and maintenance equipment.
- Playgrounds and Childcare Centres: Help protect children by preventing unwanted entry or exit.
The 10.0m width provided by this double-leaf gate allows for the passage of large vehicles such as delivery trucks, maintenance vans, and small machinery, making it ideal for high-traffic or service access points. The 1.2m height makes it suitable for areas where clear boundaries are needed without excessive restriction or obstruction.
Measurements
- Gate Height: 1200mm (above ground)
- Gate Width: 10,000mm (total opening span)
- Leaf Width: 5,000mm per gate leaf
- Gate Post Options: Available in dig-in or bolt-down formats
- Post Dimensions: 200mm x 200mm box section steel
The Apollo gate is engineered with universal leaf designs, allowing you to configure each leaf as either left or right-hand opening, depending on your installation needs. For added safety and stability, each gate leaf is fitted with three heavy-duty adjustable hinges and mitred corners, which increase structural strength and reduce vulnerability at stress points.

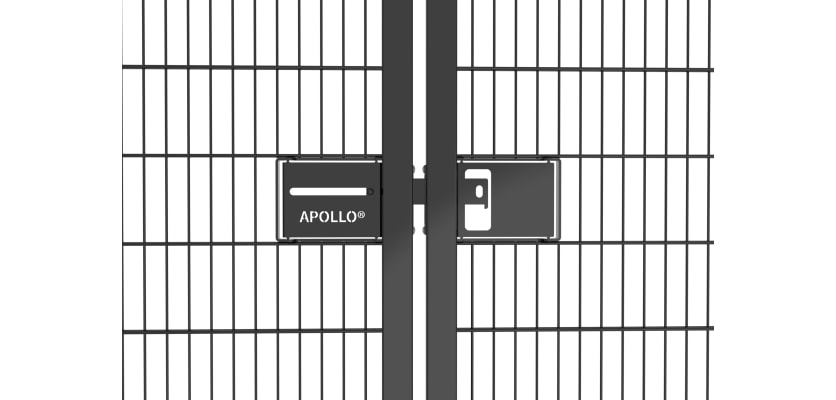

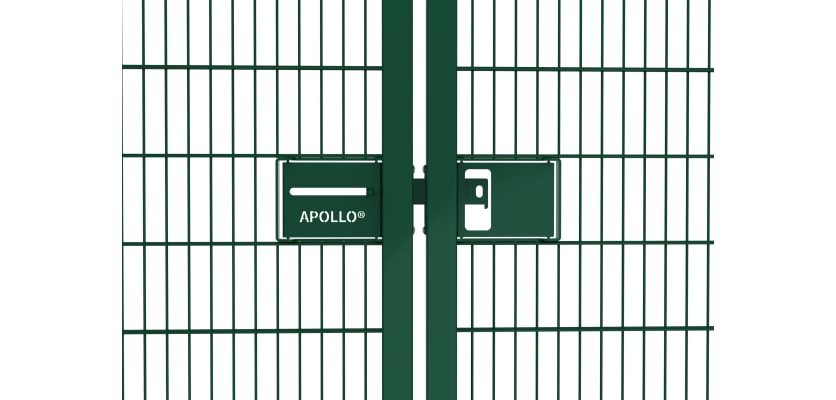

The modular slider system allows for easy locking using a traditional padlock or more advanced options such as digital security locks and quick-exit digital locks, providing a flexible approach to securing your perimeter. Powder coating in a variety of RAL colours is available, not only enhancing durability by protecting against corrosion but also allowing you to match site aesthetics or branding.
This gate kit is manufactured from pre-galvanised steel to BS EN 10346 standards and powder-coated to BS EN 13438, offering excellent corrosion resistance and long-term performance.
With a triple-hinge system on each leaf, this gate ensures stability and strength, conforming to BS EN 12604 and matching the safety expectations outlined by the DHF.
Happy To Help
Our friendly and knowledgeable sales team are here to help with any questions you may have, so please don't hesitate to contact us. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk, or you can speak to one of the team through the live chat system.
Specifications & Downloads
| Height Above Ground | 1200mm |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 2 |
Specifications & Downloads
| Height Above Ground | 1200mm |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Double Leaf Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Posts | 2 |
| Unislide Slider Padlockable Double Leaf Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 2 |
