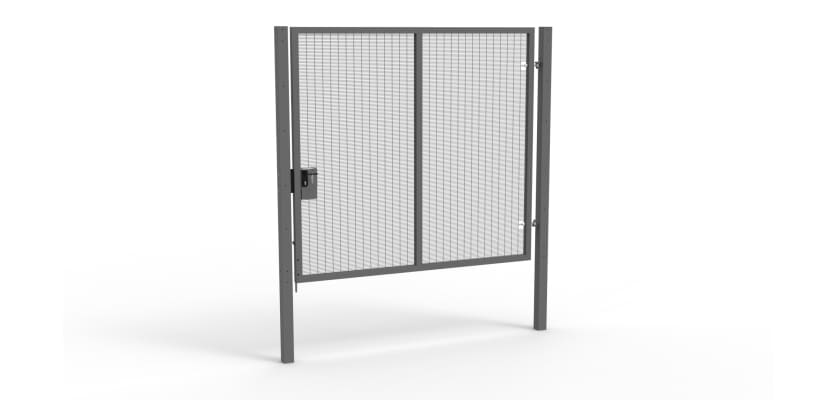

Apollo® 2.4m High x 2.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description

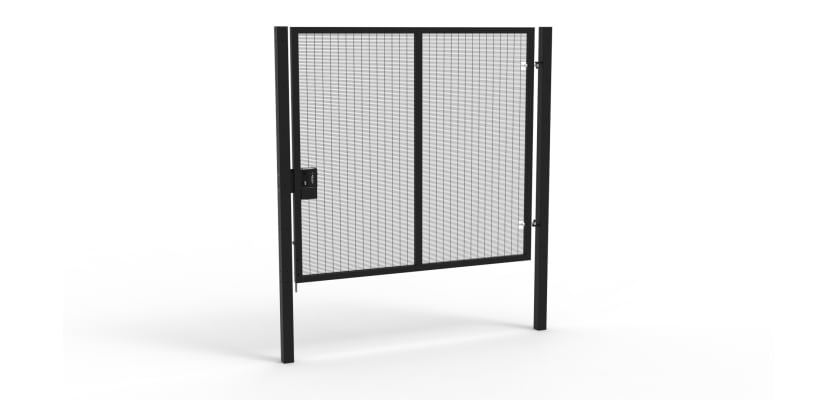

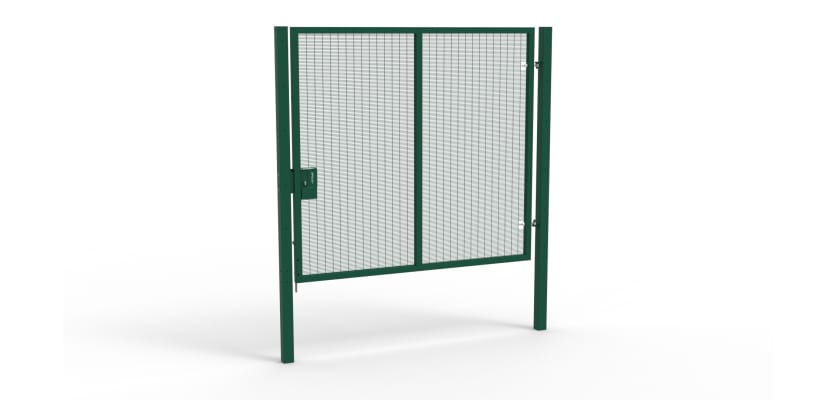

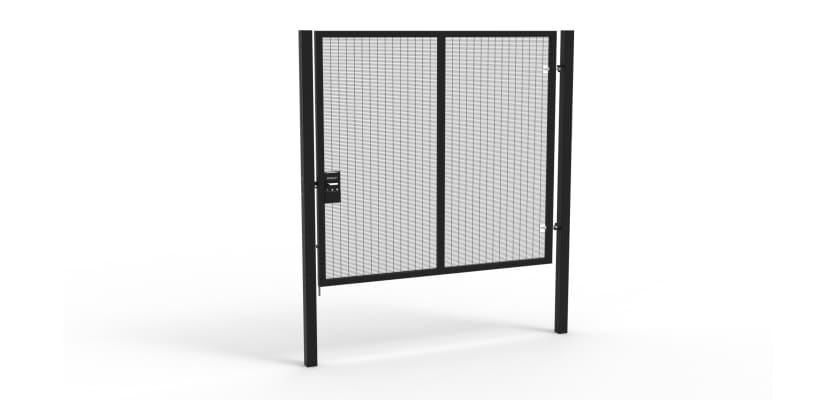

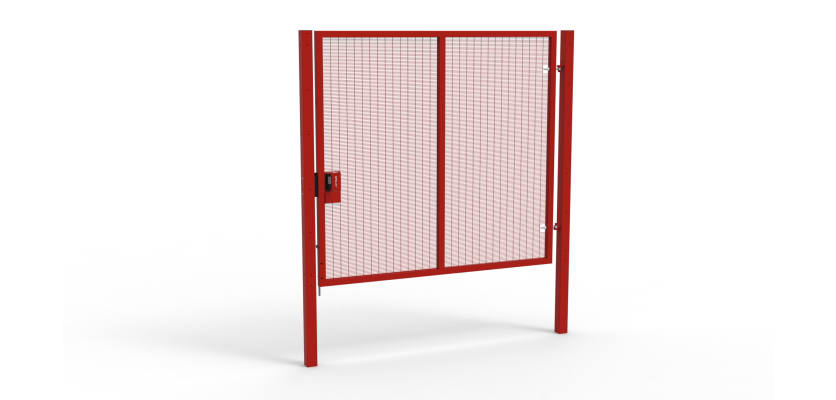

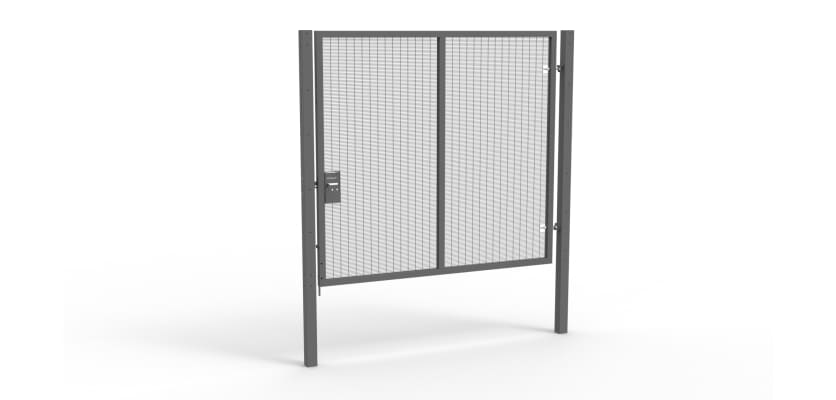

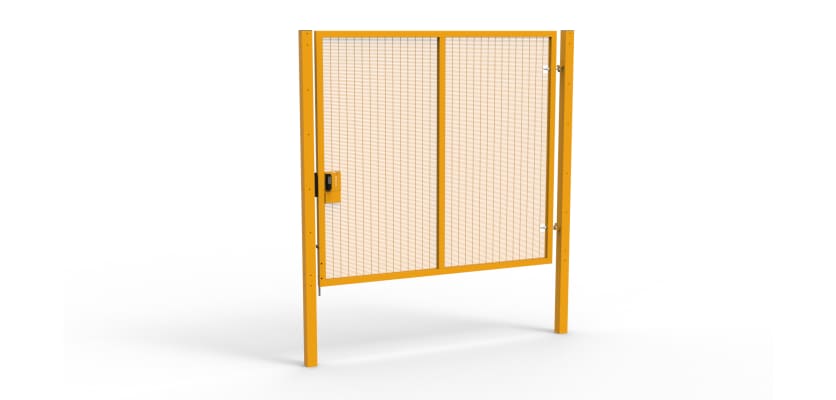

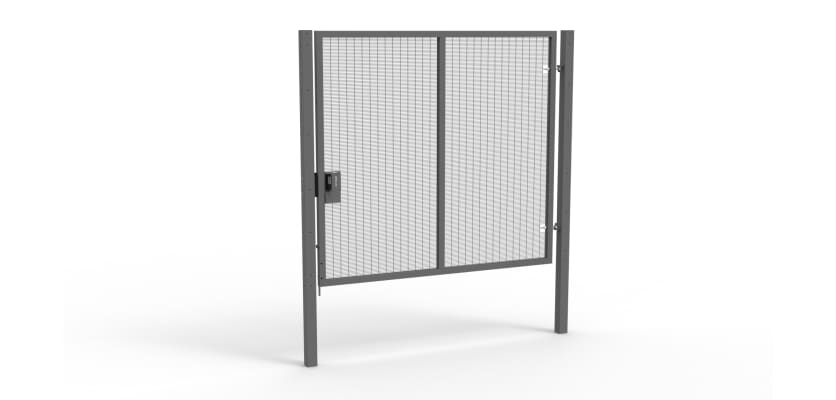

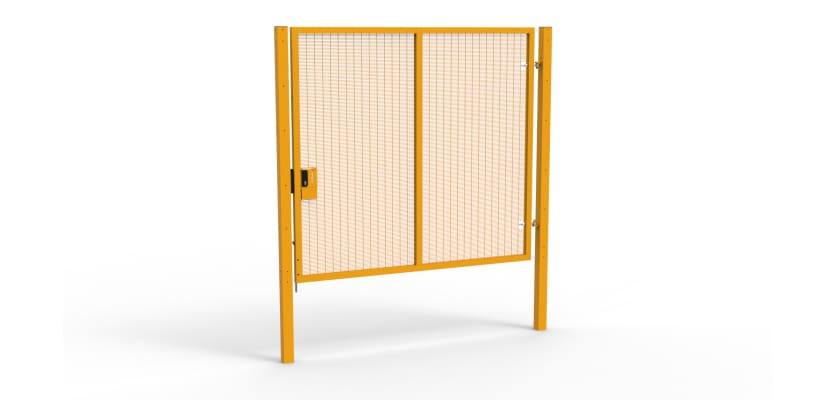

Apollo® 2.4m High x 2.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Introducing the Apollo® 2.4 m × 2.5 m 358 Mesh Single‑Leaf Gate Kit, crafted for high-security entrances where visibility and strength go hand in hand. This gate integrates effortlessly with 358 Prison Mesh fencing systems, ensuring controlled access for small vehicles while maintaining perimeter integrity.
Rugged Mesh for Maximum Security
Built with 358 Prison Mesh, this gate resists both cutting and climbing. The unwavering structure, featuring horizontal and vertical wires and tightly spaced openings, offers solid stability and toughness, making unauthorised access highly unlikely.
Premium Powder-Coated Finish
Protected by a durable polyester powder coating, the gate boasts a clean, professional look and strong resistance to corrosion and weathering, keeping it functional and attractive for the long haul.
Flexible Installation for Any Terrain
Choose the perfect post type based on your installation site:
- Bolt‑Down Posts for hard surfaces like concrete
- Dig‑In Posts are ideal for softer ground, set with Postfix cement for secure anchoring
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
Smooth Operation & Enhanced Safety
With its 2.5 m wide single-leaf design, this gate accommodates small vehicles such as forklifts while still providing robust security. It includes both a drop bolt and a sliding latch bolt, allowing it to be locked open or shut, ideal for adapting to your daily operational needs.
Why 358 Prison Mesh Is the Top Security Pick
Also called 358 Mesh, this welded-grid design offers unmatched strength and visibility. Its narrow openings deter climbing, while the welded intersections resist vandalism and cutting. It's widely trusted in high-security locations like correctional facilities, airports, schools, and commercial sites, not just for protection but also for keeping surveillance lines clear.
Contact Us
Our knowledgeable sales team is ready to help with everything from sizing and installation tips to customisation options. Reach out at 01283 512 111 or via our online chat; we'd love to help you secure your site.
Specifications & Downloads
| Height Above Ground | 2400mm |
| Access Width | 2500mm |
| Total Width | 2830mm |
| Hinge Post Size | 100mm x 100mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 1 |
| 2.4m Clamp Bar [30x5mm @ 2430mm] | 2 |
| M8 x 100mm Nuts and Bolts | 18 |
