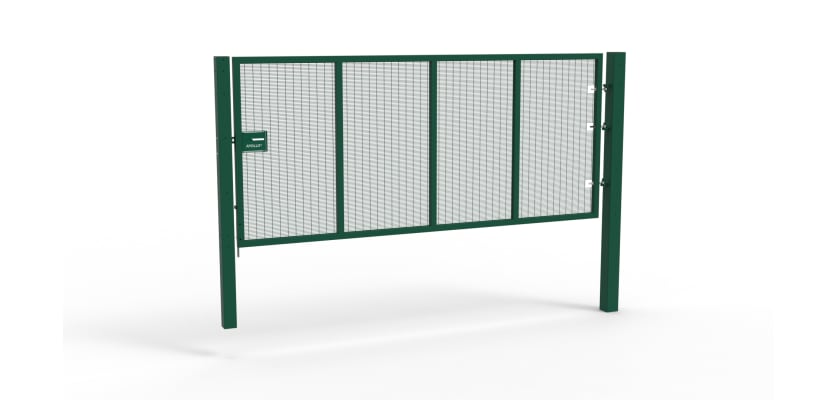

Apollo® 1.8m High x 3.5m Wide 358 Prison Mesh Single Leaf Gate Kit
| Height Above Ground | 1800mm |
| Total Gate Width | 3900mm |
| Access Width | 3500mm |
| Hinge Post Size | 150 x 150mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
Apollo® 1.8m High x 3.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Secure your perimeter with the Apollo® 1.8m x 3.5m Single Leaf Gate Kit, a premier access control solution engineered for sites where security is paramount. This comprehensive kit provides a tough yet practical entry point, combining the unparalleled strength of 358 ‘prison mesh’ with a robust steel frame. The generous 3.5m width is designed to accommodate light commercial vehicles, maintenance machinery, and large pedestrian flows, making it a versatile choice for a wide range of applications.
Constructed from high-quality pre-galvanised steel and finished with a durable polyester powder coating, this gate is built to withstand both physical attack and harsh weather conditions, ensuring long-term performance and reliability. Offering an exceptional balance of intrusion prevention and clear visibility for surveillance, the Apollo® 358 Mesh Gate is the definitive choice for protecting your most valuable assets. Each kit is supplied with the gate leaf, posts, and all necessary fittings for a complete and secure installation.
Apollo® gates are designed to be fully compatible with a range of mesh fencing systems, including 358, 656, and 868 mesh, to create a secure and seamless perimeter.
Key Features
The 358-prison mesh tight mesh pattern the gate incredibly difficult to penetrate. The small openings offer no finger or toe holds, effectively preventing climbing, and deny purchase to most conventional cutting tools like bolt cutters. This makes it an ideal choice for high-security environments.
The entire gate system is manufactured from pre-galvanised steel for inherent protection against rust and corrosion. A tough polyester powder-coated finish is then applied, providing a second layer of defence against weathering and physical damage.
This finish is available in a range of standard colours to match existing fencing or corporate branding. The gate’s 3.5m wide single-leaf design is supported by heavy-duty adjustable hinges, allowing for precise alignment on site.
Security is handled by a robust, modular sliding latch which can be secured using a padlock. For added peace of mind, the gate is compatible with digital access locks and quick-exit digital locking systems, allowing for improved access control in higher-risk or busier environments.
For added convenience, the gate features universal hanging, meaning it can be installed to open either to the left or right, depending on your site layout. You can also choose between bolt-down or dig-in posts to suit the ground conditions of your installation area.
The gate’s wide single-leaf design is supported by three heavy-duty adjustable hinges, ensuring superior strength and allowing for precise alignment during installation. For maximum operational safety, the gate is fully compliant with BS EN 12604 standards, helping to prevent accidents in the rare event of hinge failure.
Applications
The combination of high-security mesh and a wide vehicle-accessible opening makes this Apollo® gate kit incredibly versatile. Typical applications include securing the perimeters of industrial estates, data centres, utility compounds such as electrical substations, and transport hubs like rail yards and depots. Its anti-climb properties also make it an excellent choice for schools, academies, and public facilities where safeguarding is a primary concern. Any commercial or private site with high-value assets will benefit from the robust protection this gate provides.
Post Types and Installation
- To ensure a secure and stable installation regardless of your site conditions, the Apollo® gate kit is available with two distinct post options. It is vital to select the correct type for your ground surface:
Dig-In Posts: These are the standard choice for installation into soft ground, including soil, grass, or gravel. The posts are manufactured with extra length to be securely concreted into the ground using a suitable Post Mix, creating a strong and permanent foundation.
Bolt-Down Posts: Designed for use on solid surfaces like concrete. Each bolt-down post features a welded base plate with pre-drilled holes, allowing it to be firmly anchored to the ground using M16 ground anchor bolts (sold separately).
