Apollo® 1.8m High x 1.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description

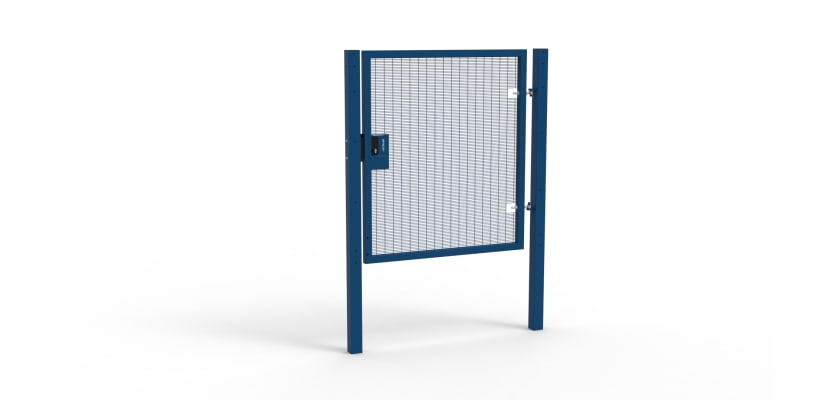

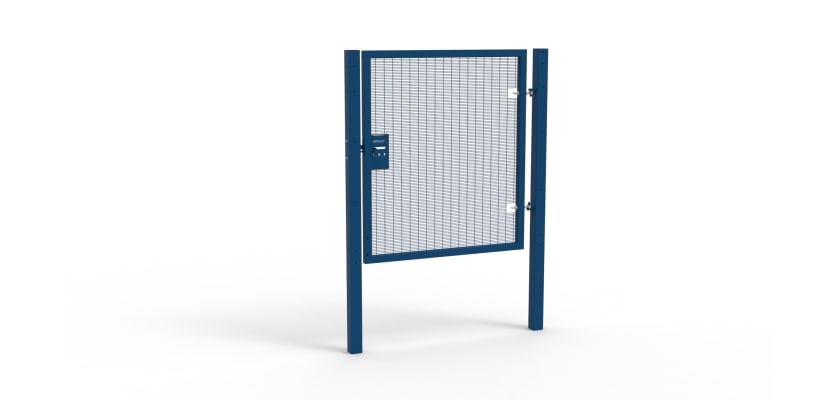

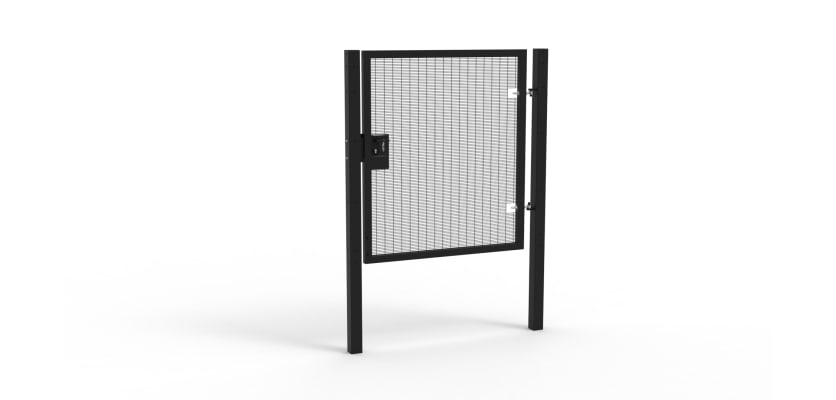

Apollo® 1.8m High x 1.5m Wide 358 Prison Mesh Single Leaf Gate Kit
The Apollo® 1.8m High x 1.5m Wide 358 Prison Mesh Single Leaf Gate Kit provides a secure and durable pedestrian access solution for high-security perimeters. Designed to integrate seamlessly with 358 Prison Mesh or 358 D mesh fencing systems, it combines exceptional anti-climb protection with a strong, professional finish. This gate is ideal for locations that require both safety and visibility, offering a reliable and adaptable entry point within a secure boundary.
Key Features Of 358 Mesh Gate
358 Prison Mesh Construction- The gate is built with 4mm diameter horizontal and vertical wires, welded at every intersection, and featuring anti-climb mesh. This configuration prevents climbing, stops large objects from being passed through, and provides resistance against cutting and tampering.
Durable Steel Frame- Manufactured from pre-galvanised steel for inherent corrosion resistance, the Apollo® gate is finished with a high-quality Polyester Powder Coating (PPC). This coating creates a smooth, even finish and adds an extra layer of protection against UV damage, weathering, and general wear.
Modular Design- Its modular design means you can use the supplied sliding latch bolt or easily upgrade to a digital lock or key access lock for enhanced control.
Universal Handing and Adjustable Hinges- The gate can be installed to open either left or right, allowing flexibility during setup. Adjustable hinges make alignment straightforward, ensuring smooth operation and a precise fit.
Applications
The Apollo® 1.8m High x 1.5m Wide 358 Prison Mesh Single Leaf Gate Kit is suited to a wide range of environments where controlled pedestrian access is essential. These include:
- Correctional facilities and police stations: for secure perimeter control.
- Airports and transport hubs: where visibility and security must work together.
- Commercial and industrial premises: to restrict access to authorised personnel.
- Educational institutions: for safe and secure access points.
- Utilities and infrastructure sites: to protect sensitive or restricted areas.
The 358 mesh design allows excellent visibility for monitoring and CCTV, making it a preferred choice in areas that require active surveillance.
Post Types
The Apollo® gate is available with two installation options to suit different ground types:
- Bolt-Down Posts: Ideal for solid surfaces such as concrete.
- Dig-In Posts: Designed for softer ground types like soil or clay and installed with post mix for stability.
When attaching this gate to an existing 358 Prison Mesh fencing system, additional M8 x 40mm bolts and mesh fencing clips will be required to ensure a firm and secure connection. This integration provides a consistent and fortified barrier, making it an ideal solution for areas requiring a controlled access point within a high-security perimeter.
Thanks to its strength, visibility, and security features, the 358 Prison Mesh Pedestrian Gate Kit is well-suited for a variety of applications. Whether securing educational institutions, commercial properties, or high-security facilities such as correctional units and police stations, this gate provides a reliable and robust access control solution.
Customer Support and Assistance
If you require further information or assistance regarding the installation and customisation of this gate, our dedicated sales team is available to help. You can reach us at 01283 512 111 or use our online chat facility for immediate support. We are committed to providing high-quality security solutions tailored to your specific needs.
Specifications & Downloads
| Height Above Ground | 1800mm |
| Access Width | 1500mm |
| Total Width | 1830mm |
| Hinge Post Size | 100mm x 100mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Mesh Type | 358 Prison Mesh |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 1 |
| 1.8m Clamp Bar [30x5mm @ 1830mm] | 2 |
| M8 x 100mm Nuts and Bolts | 14 |
