Apollo® 2.4m High x 1.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description

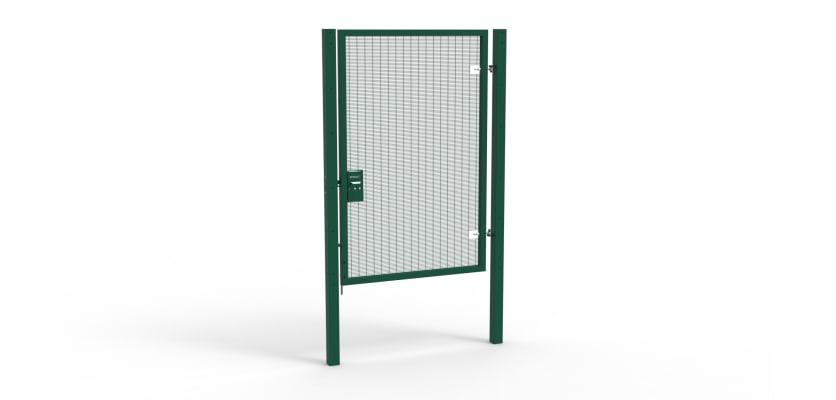

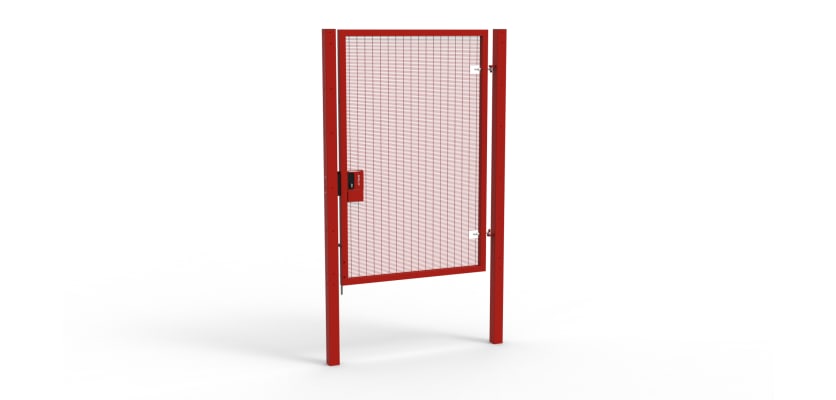

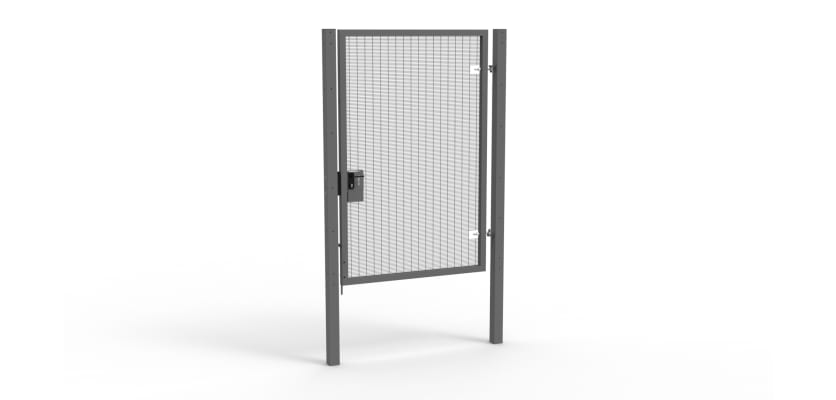

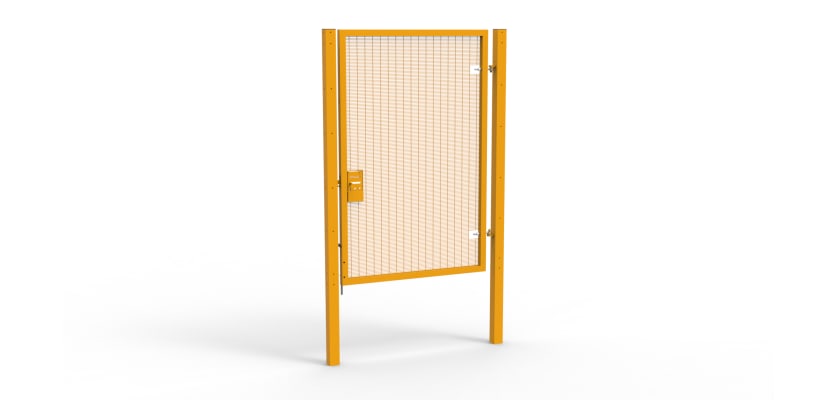

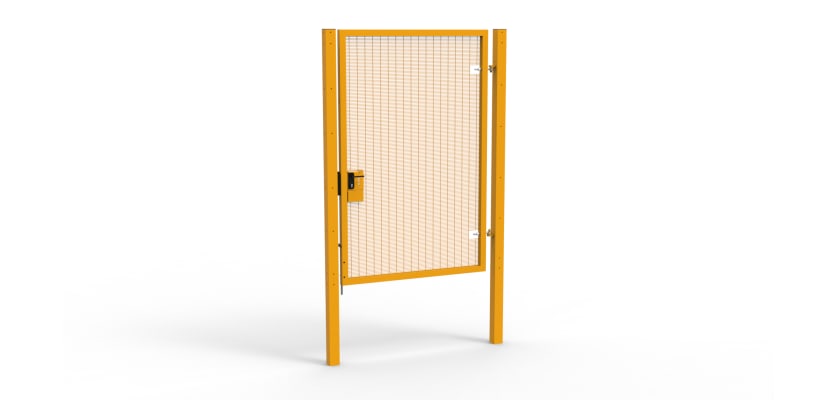

Apollo® 2.4m High x 1.5m Wide 358 Prison Mesh Pedestrian Gate Kit
Introducing the Apollo® 2.4 m × 1.5 m 358 Mesh Pedestrian Gate Kit, designed for secured pedestrian entry where strength and visibility are essential. It merges seamlessly with 358 Prison Mesh fencing systems to uphold controlled access without compromising on security.
Premium Security Mesh Design
This gate features the renowned 358 Prison Mesh, constructed from horizontal and vertical wires, creating narrow apertures. These dimensions make climbing nearly impossible and effectively block any foothold or finger grip. The visible mesh design also supports surveillance and high visibility, crucial for secure areas.
Tough, Weather-Resistant Finish
Protected with a high-grade polyester powder coating, this gate is built to endure both indoor and outdoor conditions. The coating not only provides a polished, uniform aesthetic but also resists corrosion, weather damage, and daily wear, ensuring lasting performance in any environment.
Versatile Installation Options
Suitable for a variety of foundations, this gate can be installed using:
- Dig-In Posts: perfect for soft ground types like soil or grass, offering sturdy anchoring.
- Bolt‑Down Posts: ideal for solid surfaces like concrete, providing a secure and stable installation.
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
Flexible and Secure Mechanisms
Adjustable hinges allow for up to a 180° swing, ensuring ease of access and alignment.
A sliding latch bolt keeps the gate securely closed and supports the addition of a heavy-duty padlock (padlock optional for added security).
Seamless Mesh Integration
To integrate this gate within your existing 358 Prison Mesh fencing, you’ll need M8 × 40 mm bolts and mesh fencing clips, ensuring a secure and cohesive connection for full perimeter integrity.
Contact Us
Need help with compatibility, installation, or customisation? Our sales team is on hand to assist! Call us at 01283 512 111 or use our online chat for quick, friendly support.
Specifications & Downloads
| Height Above Ground | 2400mm |
| Access Width | 1500mm |
| Total Width | 1830mm |
| Hinge Post Size | 100mm x 100mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 1 |
| 2.4m Clamp Bar [30x5mm @ 2430mm] | 2 |
| M8 x 100mm Nuts and Bolts | 18 |
Specifications & Downloads
| Height Above Ground | 2400mm |
| Access Width | 1500mm |
| Total Width | 1830mm |
| Hinge Post Size | 100mm x 100mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 1 |
| 2.4m Clamp Bar [30x5mm @ 2430mm] | 2 |
| M8 x 100mm Nuts and Bolts | 18 |
