Apollo® 2.4m High x 1.0m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description

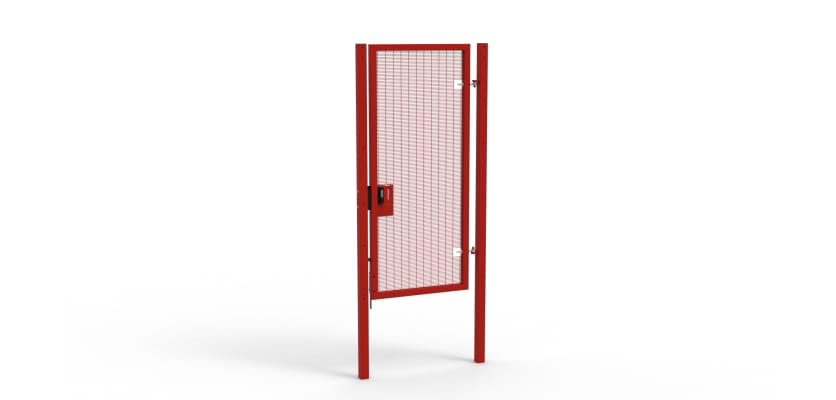

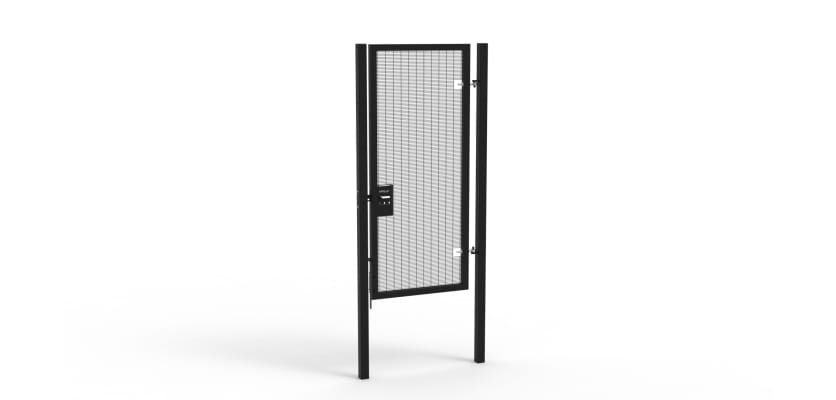

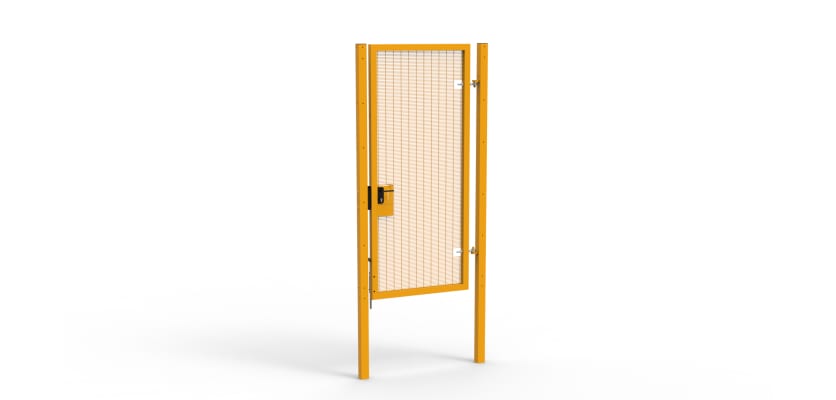

Apollo® 2.4m High x 1.0m Wide 358 Prison Mesh Pedestrian Gate Kit
The Apollo® 2.4m High x 1.0m Wide 358 Mesh Pedestrian Gate Kit offers a high-security solution for areas requiring restricted pedestrian access. Engineered for strength and resilience, this gate integrates seamlessly with existing 358 mesh fencing to create a controlled and secure entry point for authorised individuals.
High-Security 358 Mesh Design
The 358 mesh, also known as prison mesh, is widely recognised for its anti-climb properties. Manufactured using horizontal and vertical wires, the mesh features tight apertures. These narrow openings make it nearly impossible for intruders to grip or climb, providing an added layer of physical security. At the same time, the mesh allows clear visibility for surveillance purposes.
Durable Powder-Coated Finish
This gate is protected with a high-quality polyester powder coating that gives it a professional appearance and added resistance to corrosion and weather damage. The coating ensures long-lasting performance in both indoor and outdoor environments, even under challenging weather conditions.
Flexible Installation Options
To accommodate various installation environments, this pedestrian gate kit is available with either Dig-In Posts or Bolt-Down Posts:
- Dig-In Posts are ideal for soft ground like soil or grass, offering deep anchorage.
- Bolt-Down Posts provide a solid fix to existing hard surfaces such as concrete.
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
Secure & Adjustable Gate Mechanism
Designed for functionality and security, the gate includes adjustable hinges that allow for up to 180° of swing, ensuring ease of access. A sliding latch bolt keeps the gate firmly shut and can be secured with a heavy-duty padlock (available as an optional extra).
Contact Us
Need help with installation or customisation? Our expert team is here to assist. Call us on 01283 512 111 or use our live chat service for quick answers and personalised advice. We’re committed to helping you secure your property with the right solution.
Specifications & Downloads
| Height Above Ground | 2400mm |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Hinge Post Size | 80mm x 80mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Pedestrian Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
| Auto Locking Drop Bolt | 1 |
| 2.4m Clamp Bar [30x5mm @ 2430mm] | 2 |
| M8 x 100mm Nuts and Bolts | 18 |
